GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 271
8-11-3-3 Preparations (cont’d)
4.) Remove the Side Covers.
5.) Remove the Top Cover.
Follow these links if you need more information:
• 4-2-3 "Power shut down" on page 4-7.
• 8-5-2 "Side Covers replacement" on page 8-30.
• 8-5-4 "Top Cover replacement" on page 8-38.
8-11-3-4 DVD R/W drive removal
1.) Raise the console height to the highest level.
2.) Remove screws (1) securing the right side of the DVD Drive to the DVD / V Nav,
Bay Bird bracket (2).
3.) Tilt the Front Cover forward just until the Column Cover stop tabs clear.
4.) Raise the Column Cover (3) to access and remove any screws securing the left side of the DVD
drive to the DVD / V Nav, Bay Bird bracket.
8-11-3-5 DVD R/W drive installation
1.) Slide the DVD drive into position.
2.) Seat the DVD Interface Board Bracket to the DVD Drive.
3.) Install the four screws to secure the DVD drive to the DVD Interface Board Bracket.
4.) Install the screws to secure the DVD drive to the DVD / V Nav, Bay Bird Bracket.
5.) Return the Column Cover to proper position.
6.) Install the Covers.
7.) Perform Functional Checks. See: 8-11-3-6 - Calibration and adjustments,
8-11-3-7 - Verification and 8-11-3-8 "Functional Checks" on page 8-272.

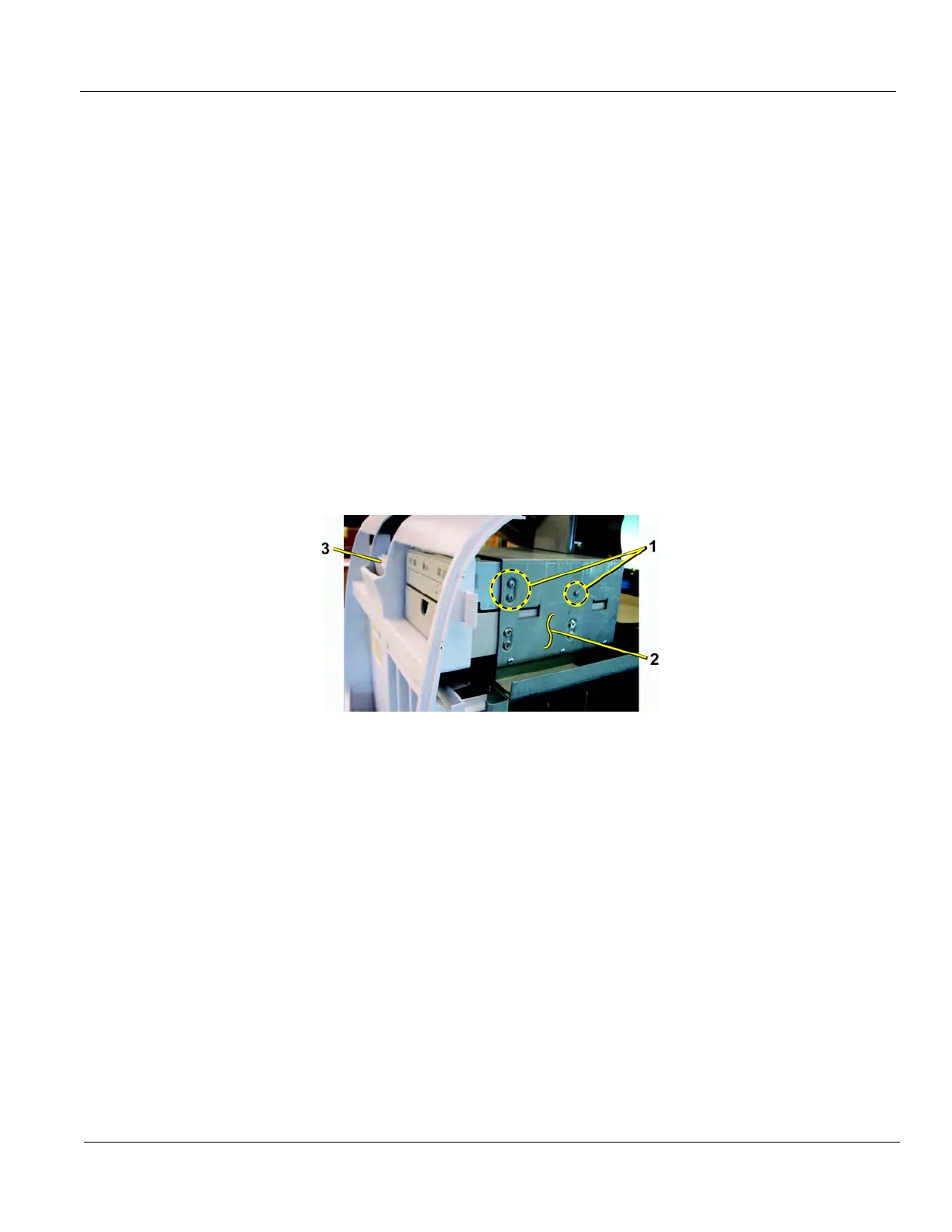

Figure 8-67 DVD Drive Screw placement, right side DVD drive to the DVD / V Nav bracket
To Next Page
