IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

8 - 274 Section 8-11 - Peripherals replacement

8-11-4-4 DVD Storage Tray removal

8-11-4-5 DVD Storage Tray installation

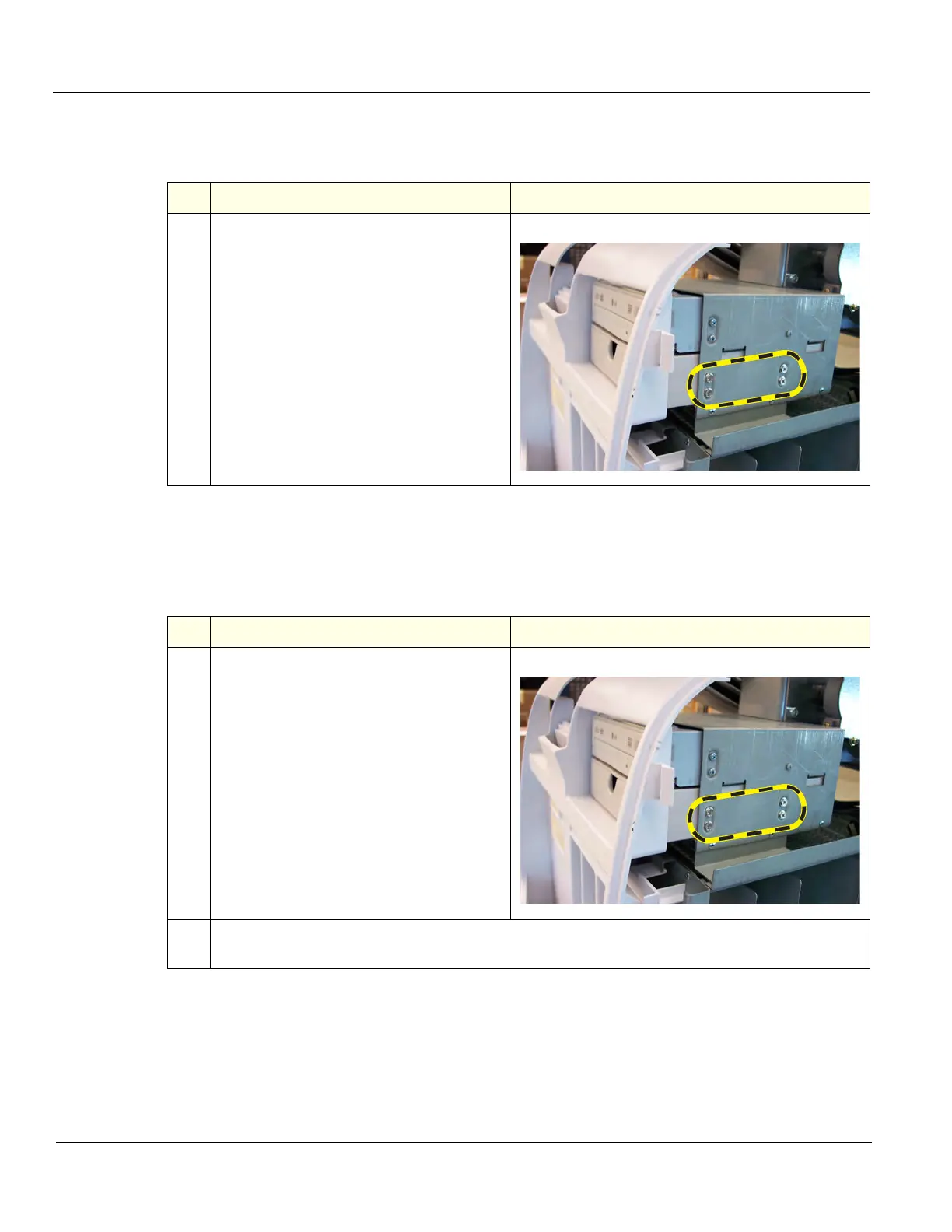

Table 8-171 DVD Storage Drawer removal

Steps Corresponding Graphic

Remove the four screws securing the

storage drawer to the LOGIQ E9. Discard

the screws and drawer in the appropriate

manner.

Table 8-172 Storage Drawer Installation

Steps Corresponding Graphic

Slide the Storage Drawer into the System.

Secure the Storage Drawer to the

LOGIQ E9 with the four supplied screws.

Perform Functional Checks. See: 8-11-4-6 - Calibration and adjustments,

8-11-4-7 - Verification and 8-11-4-8 "Functional Checks" on page 8-275.
