IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 279
8-11-6 Digital Graphic Printer replacement
8-11-6-1 Manpower
One person, 15 minutes.
8-11-6-2 Tools
For tools needed, refer to: 8-2-5 "Tools needed for servicing the LOGIQ E9" on page 8-5.
8-11-6-3 Preparations
When preparing for the replacement, you must perform the following steps:
1.) Power down the system.
2.) Disconnect the mains power cable from the wall outlet.
3.) Disconnect all Probes.
4.) Remove the Left Side Cover.
Follow these links if you need more information:
• 4-2-3 "Power shut down" on page 4-7.
• 8-5-2 "Side Covers replacement" on page 8-30.
8-11-6-4 Black and White Digital Graphic Printer removal
1.) Disconnect the cables from the back of the printer.
2.) Loosen the Printer Tray wing nut that secures the printer.
3.) Slide the printer out.
8-11-6-5 Black and White Digital Graphic Printer installation
1.) Slide the printer into the Printer Tray until the face is flush with the system.
2.) Tighten the Printer Tray wing nut to secure the printer in the Printer Tray.
3.) Connect the cables to the back of the printer.
4.) Replace the Left Side Cover.
5.) Perform Functional Checks. See: 8-11-6-6 - Calibration and adjustments,
8-11-6-7 - Verification and 8-11-6-8 "Functional Checks" on page 8-280.

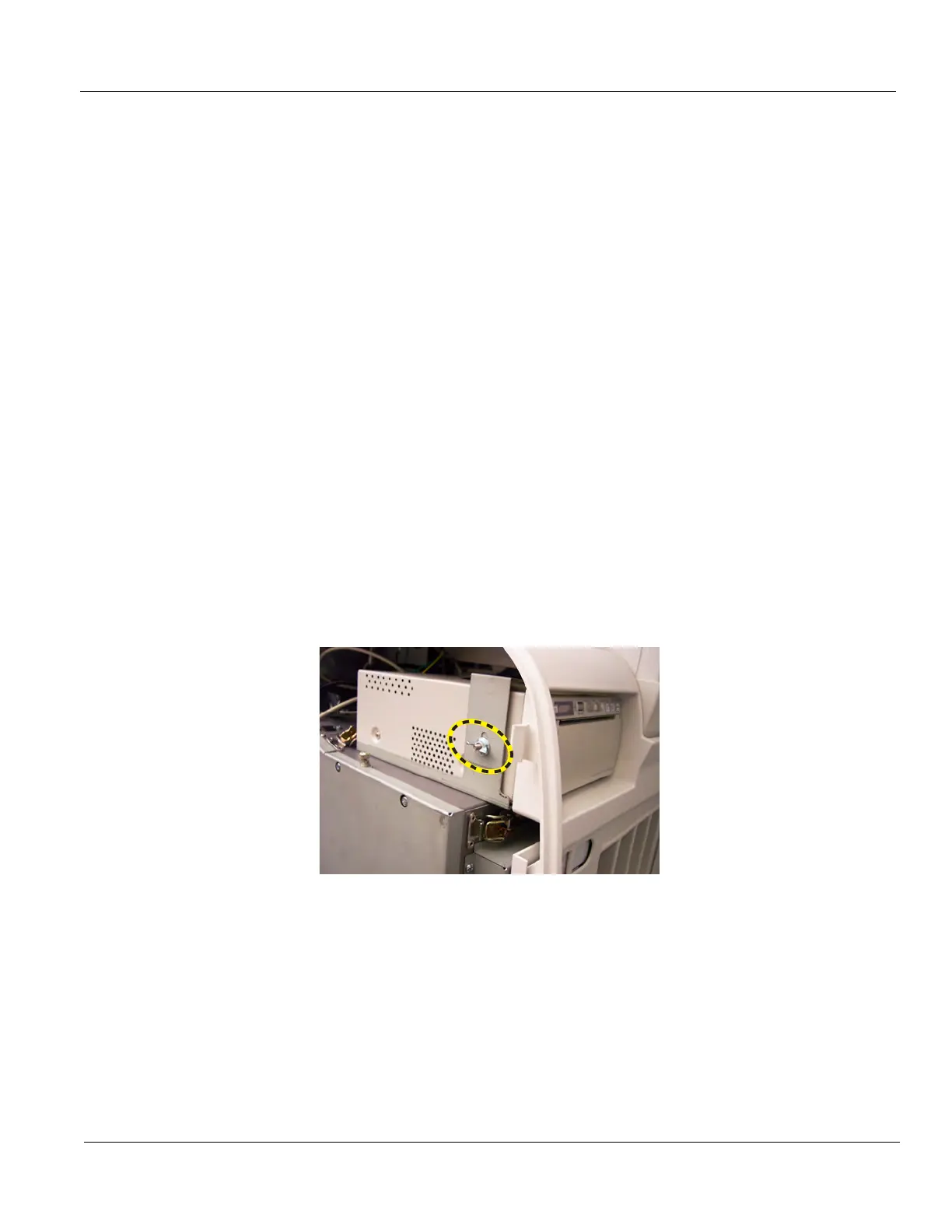

Figure 8-69 Black and White Digital Graphic Printer - wing nut
