9 - 12 Section 9-7 - Covers and Bumpers
8a
Cover Right Assembly
5168550
OBSOLETE
Right Side Cover Assembly
Replaced by 5337049
1Y
Cover Right Assembly
with Logo
5337049
Right Side Cover Assembly
1Y
Cover Right Assembly
with Slots On-board V Nav Stand
(Light Grey and Sapphire GE Logo)
5436706 1Y
Cover Right Assembly
with Sapphire Logo
5337049-2 1Y
Right Side Cover Assy
Removable Fan Tray
5168191-2 1Y

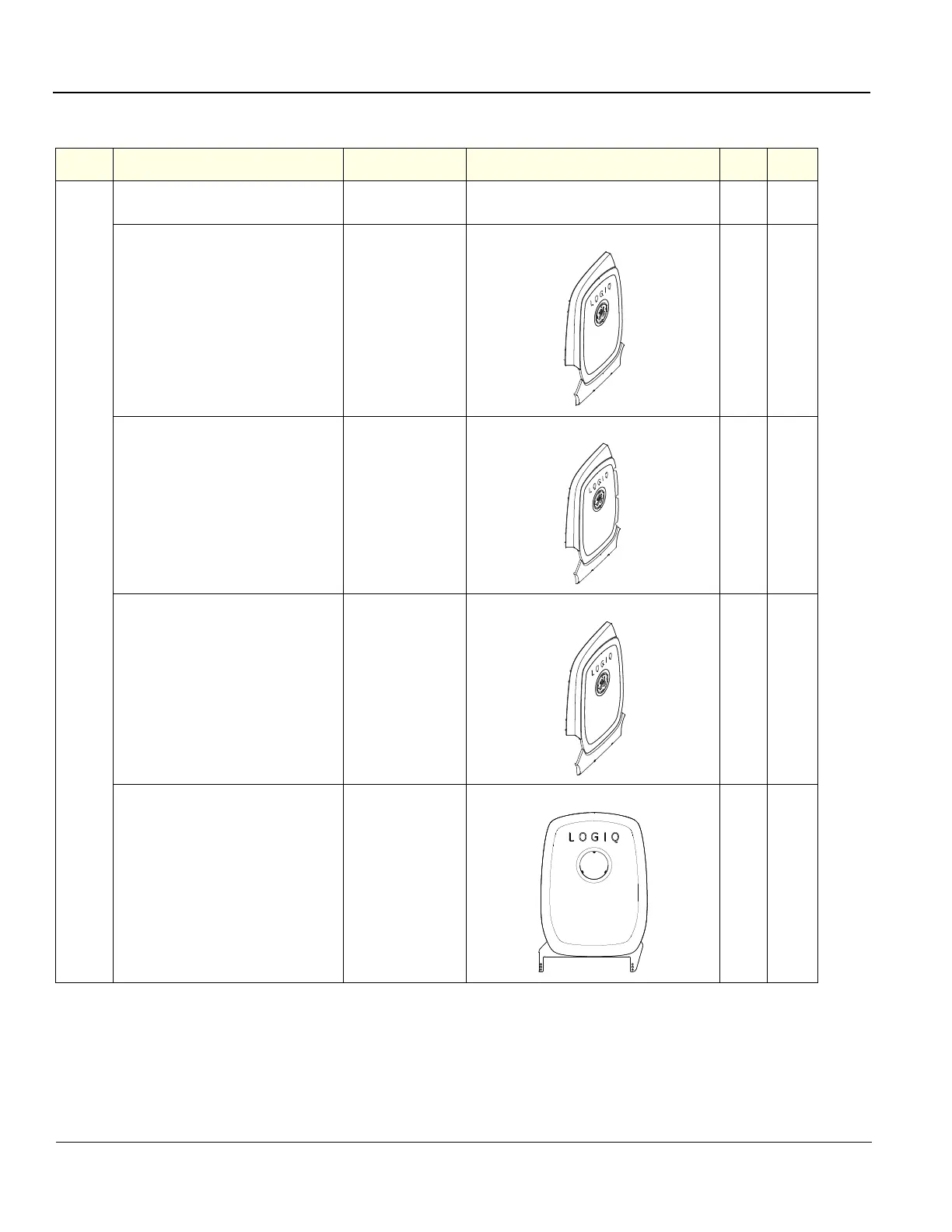

Table 9-10 Covers - LOGIQ E9 4 of 8 (not all covers or items listed are
identified in Figure 9-2 on page 9-9)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
