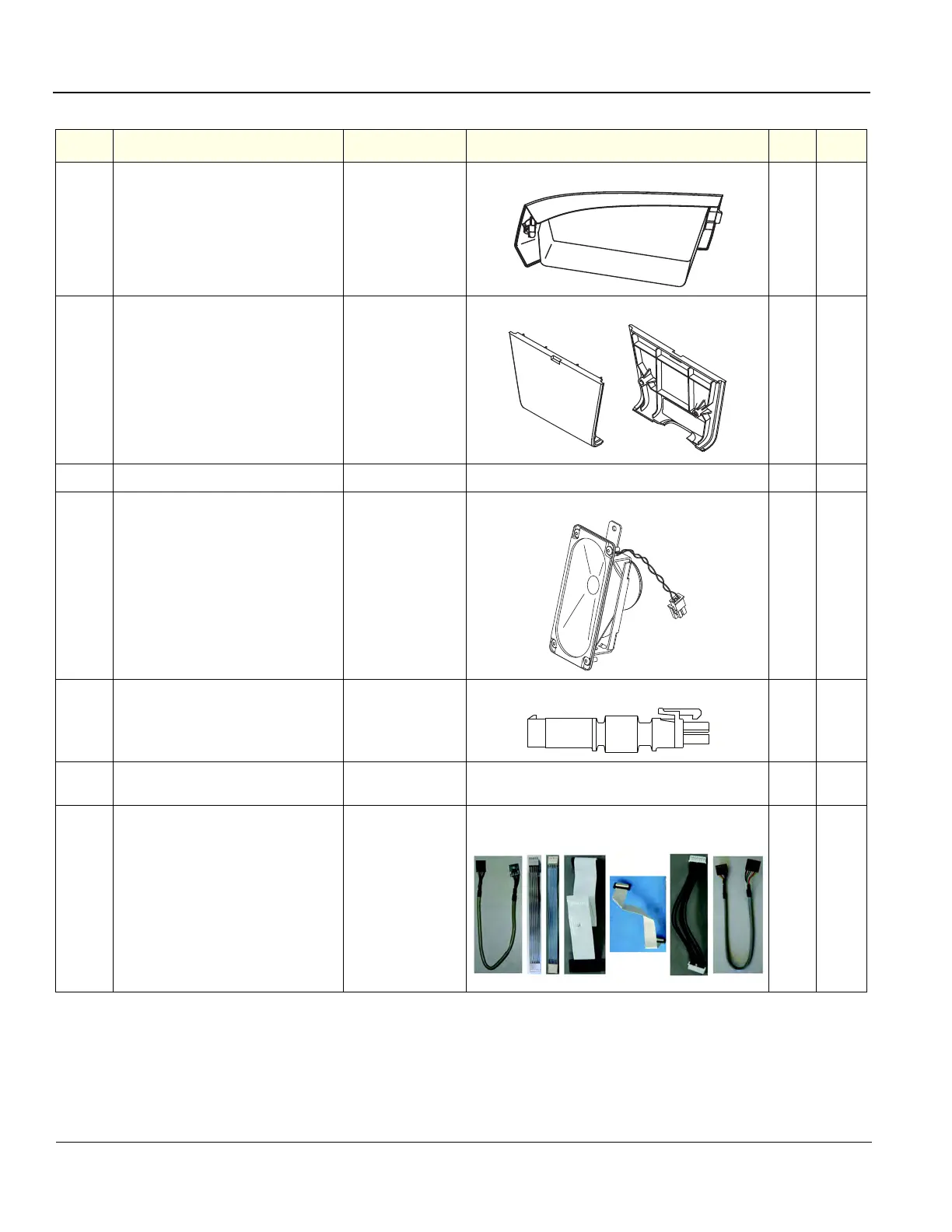

9 - 32 Section 9-8 - Top Console parts
89.
Tray Unit Assembly 5307236-2 1Y
90.
Cover, Palm Rest 5178069 1Y
91. Speaker Assembly 5265030 Replaced by GA200743 2 Y
92.
Speaker Assembly GA200743
Replaces 5265030
2Y
93.
Cable - Audio High Pass 5460780 2Y
94.
Operator Panel Cable Kit
GA200446
5207000-46
Replaced by 5207000-40 1 Y
95.
Operator Panel Cable Kit
Kit includes:
A - Trackball USB Cable
B1 and B2 - Trackball Switch Cables
C1 and C2 USB Video Board Flex Cables
D - HV Inverter Cable
E - A/N Keyboard USB Cable
5207000-46
Replaces GA200446
Compatible with Operator panels 5207000-x
1Y
Table 9-11 Top Console parts 16 of 18 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
