IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
3 - 6 Section 3-3 - Receiving and unpacking the equipment
3-3-4 The Tilt and Shock indicators
3-3-4-1 Overview
Improper handling during transportation may harm the equipment inside the package even if the
package itself is undamaged.
To make it easier to detect if the handling during transportation has been improper, a Tilt or TIPNTELL
indicator and a Shock indicator have been attached to the transportation box.
3-3-4-2 Position of the Tilt or TipNTell and Shock indicators
The Tilt and Shock indicators have been attached to the side of the transportation box.
NOTE: Before cutting the straps, check the Tilt or TIPNTELL and Shock indicators to make sure they
have not been triggered. If triggered, report it to the carrier. If not, then cut the straps around
the crate.

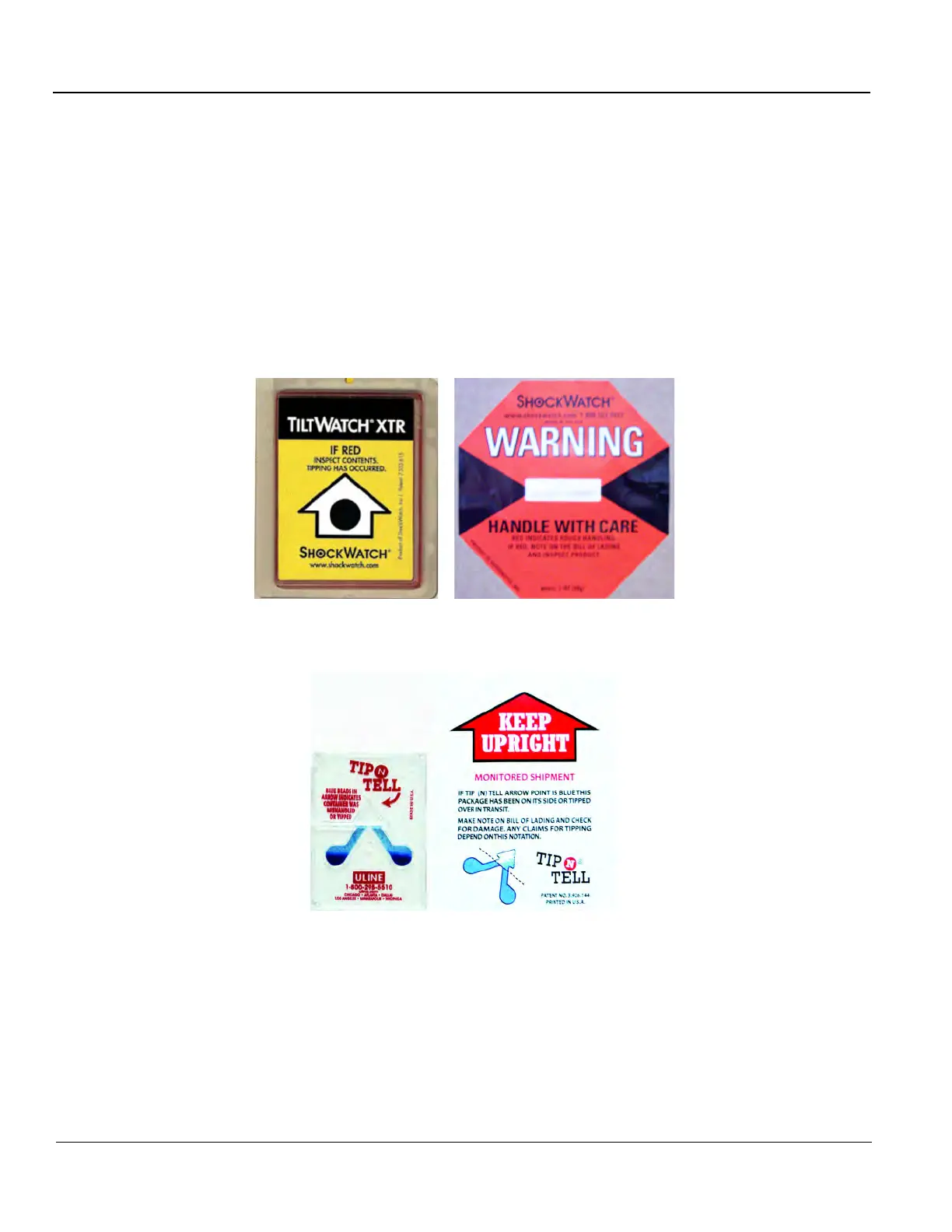

Figure 3-1 Tilt and Shock indicators
Figure 3-2 TIPNTELL indicator and Label

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
