IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
9 - 48 Section 9-12 - Card Rack parts
Section 9-12
Card Rack parts
For Card Rack compatible configurations, see:
9-12-1 "DRX Boards Compatible Configurations" on page 9-58.
For Front End Boards compatible configurations, see:
9-12-2 "Front End Boards Compatible Configurations" on page 9-59.
For GTX Boards compatible configurations, see:
9-12-3 "GTX Boards Compatible Configuration" on page 9-63.

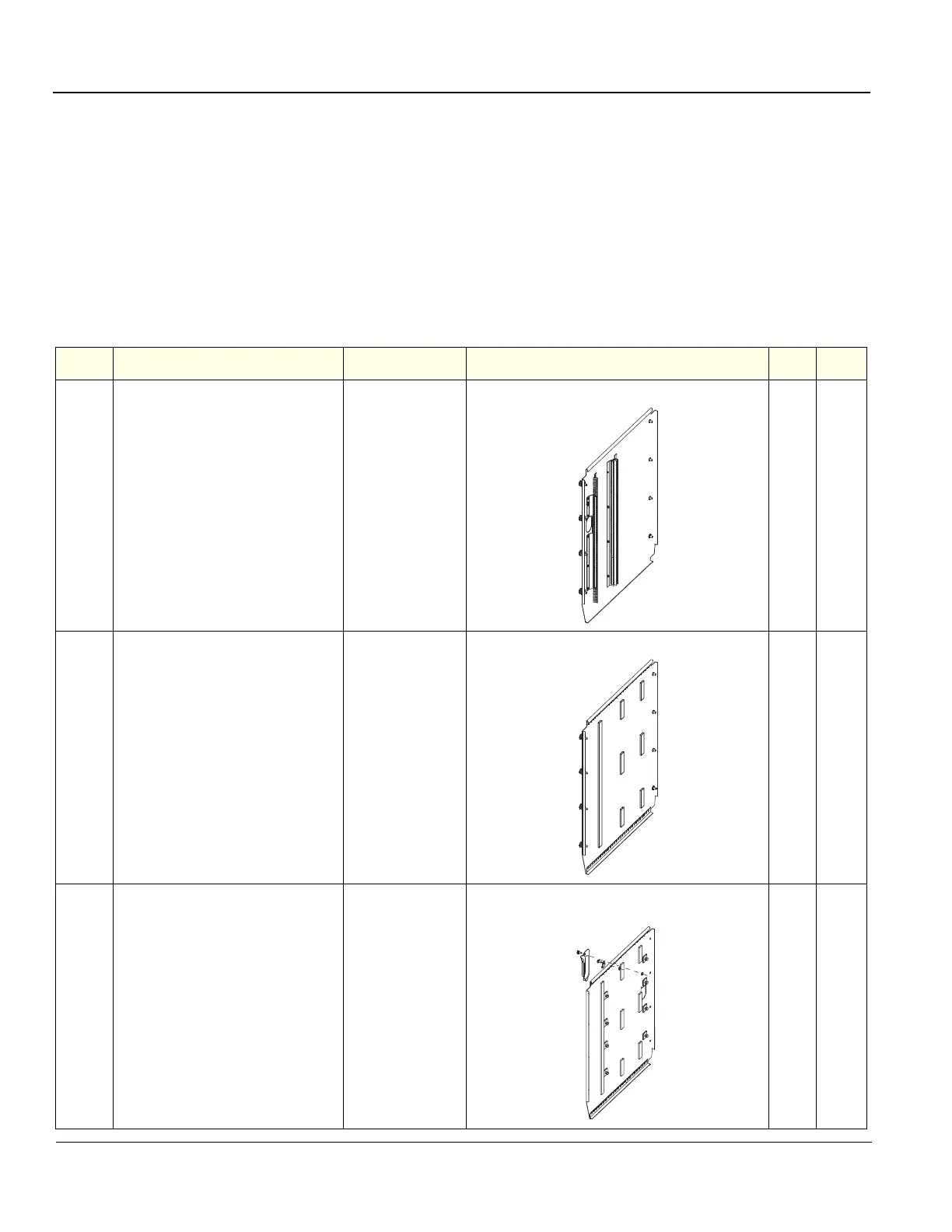

Table 9-21 Card Rack parts 1 of 11
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
Card Cage Front Cover Assembly 5245458 1Y
2.
Card Cage Front Cover
Assembly - MRX
5245458-2 1Y
3.
Card Cage Front Cover
Assembly MRX R4 consoles
5245458-3
With plate cover on GRLY side for future
applications
1Y
