IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
3 - 8 Section 3-3 - Receiving and unpacking the equipment
3-3-5 Unpacking the LOGIQ E9
The instruction manual describes the best method for unpacking the LOGIQ E9 ultrasound scanning
unit. Images are ONLY for reference; wear proper PPE when handling packaging (gloves, safety shoes,
etc...).
Table 3-3 Uncrating Instructions

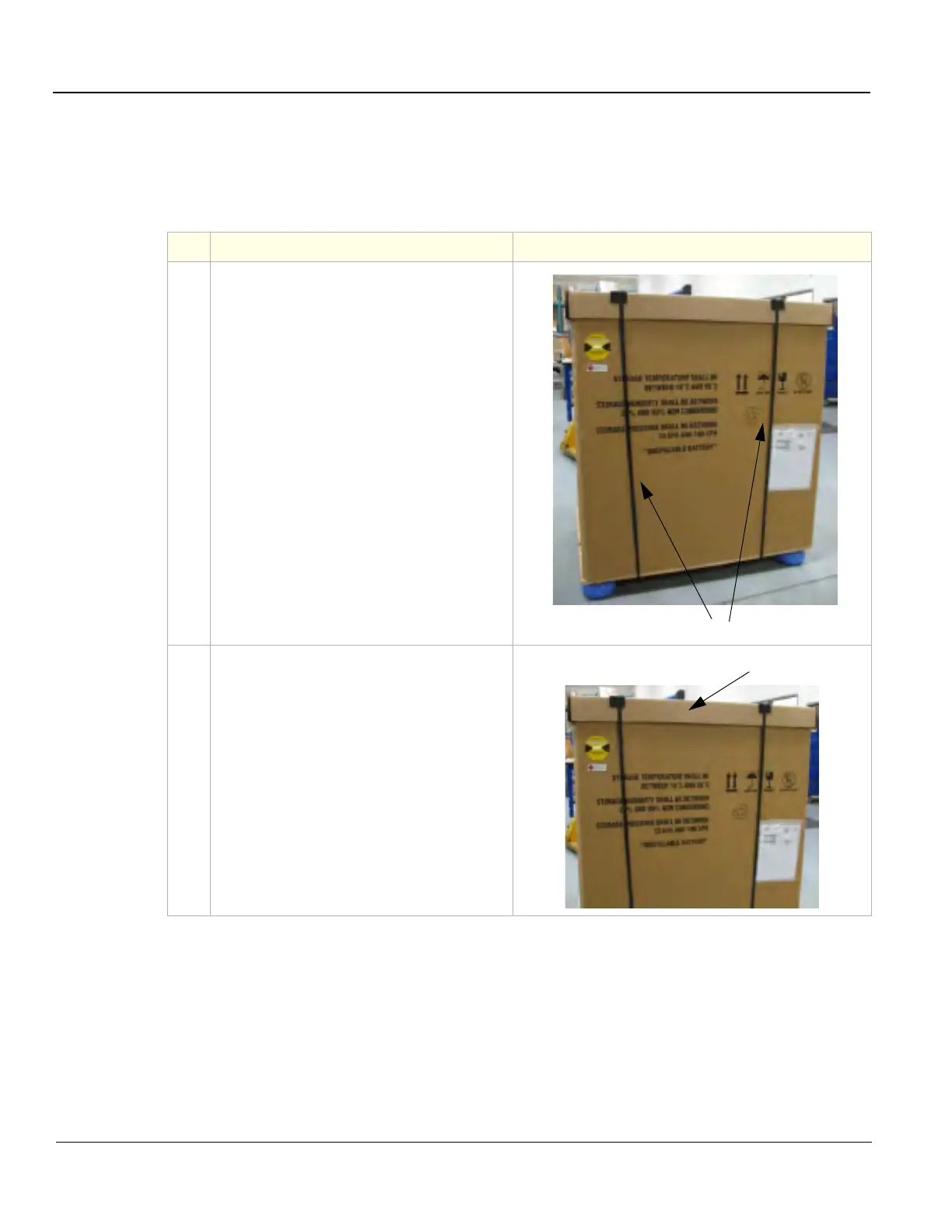

Steps Corresponding Graphic
1.
Before cutting the straps, check Shock and
Tilt Tags to make sure they have not been
triggered. If damaged, report it to the
carrier. If not, then cut the straps around the
crate.
2.
Remove the top cover.
1
2

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
