9-17-3 Main Power Supply cables (cont’d)

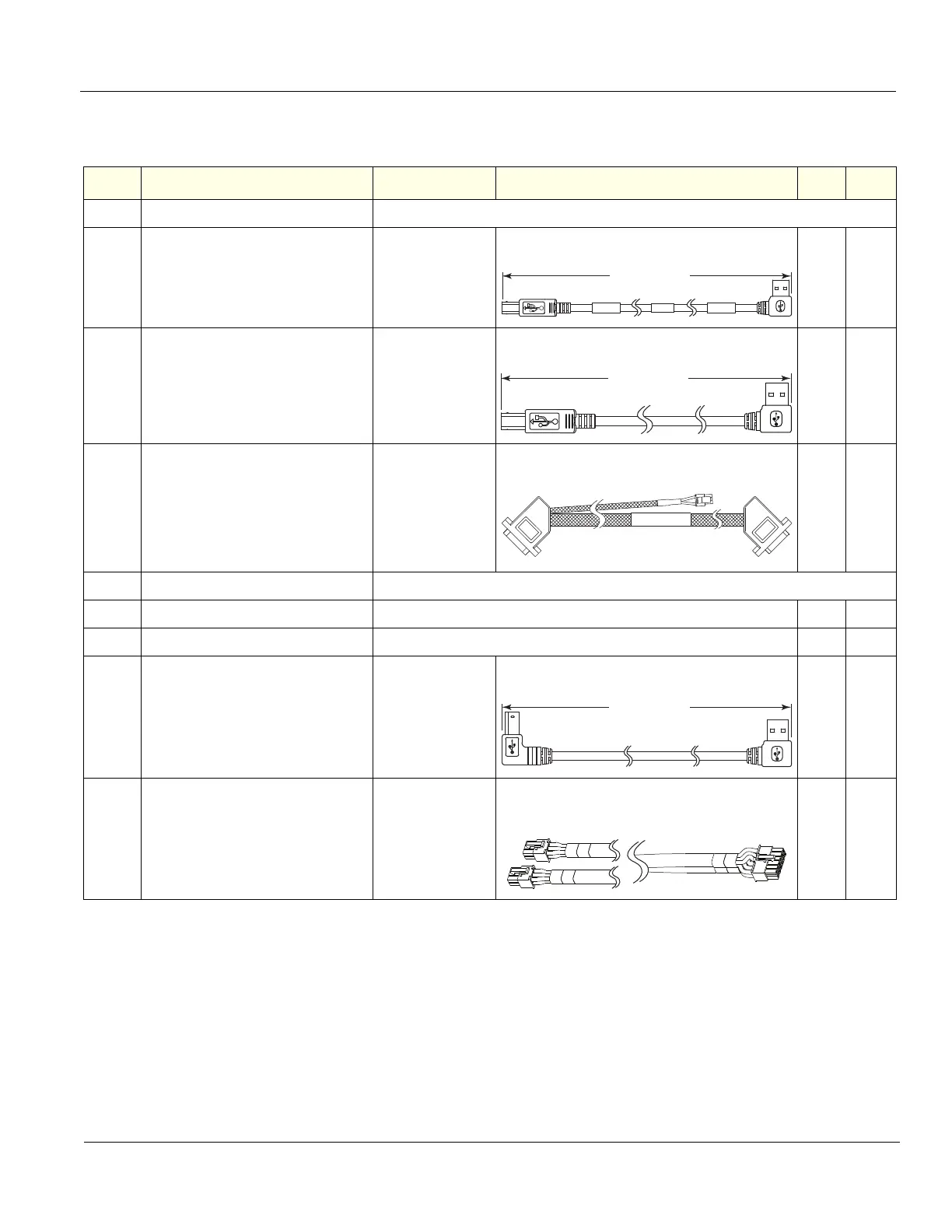

Table 9-39 Main Power Supply Cables
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1. Cable, Main Power Cable Cable A, See: Section 9-16 "Mains Power Cables" on page 9-82
2.
Cable, USB Cable - BEP5 to Main
Power Supply
5194492
Cable H
(J4 - Main Power Supply)
1Y
3.
Cable - USB, BEP6 to Main Supply,
FREY
5194492-8
Cable H
(J4 - Main Power Supply)
1Y
4.
Cable, Power Cable - BEP 48V 5194495
Cable I
(J1 - Main Power Supply - XYZ Controller)
1Y
5. Cable, AC Power Cable - BW Printer Cable R, See: Table 9-45 "Peripherals Cables" on page 9-100
6. Cable, Brake Arm Left Right See: Table 9-38 "XYZ Motor/Brake Control cables" on page 9-87 1Y
7. Cable, Brake Arm Controller See: Table 9-38 "XYZ Motor/Brake Control cables" on page 9-87 1Y
8.
Cable, USB cable to 4D MC 5194492-4
Cable BB
(J28 - Main Power Supply - 4D MC)
1Y
9.
Capacitor Pack Cable
Shear Wave Option
5486912
Cable CC
({P3} Main Power Supply - Shear Wave Capacitor
Pack BCM1-BCM2)
1Y
BEP J4
MAIN PS
(240 mm)
BEP J4
MAIN PS
(700 mm)
BEP J1
MAIN PWR
SUPPLY
4D MOTORCONTROL BEP J28
5194492-4...........
(370 mm)
