IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 91
9-17-4 Card Rack Cables (cont’d)

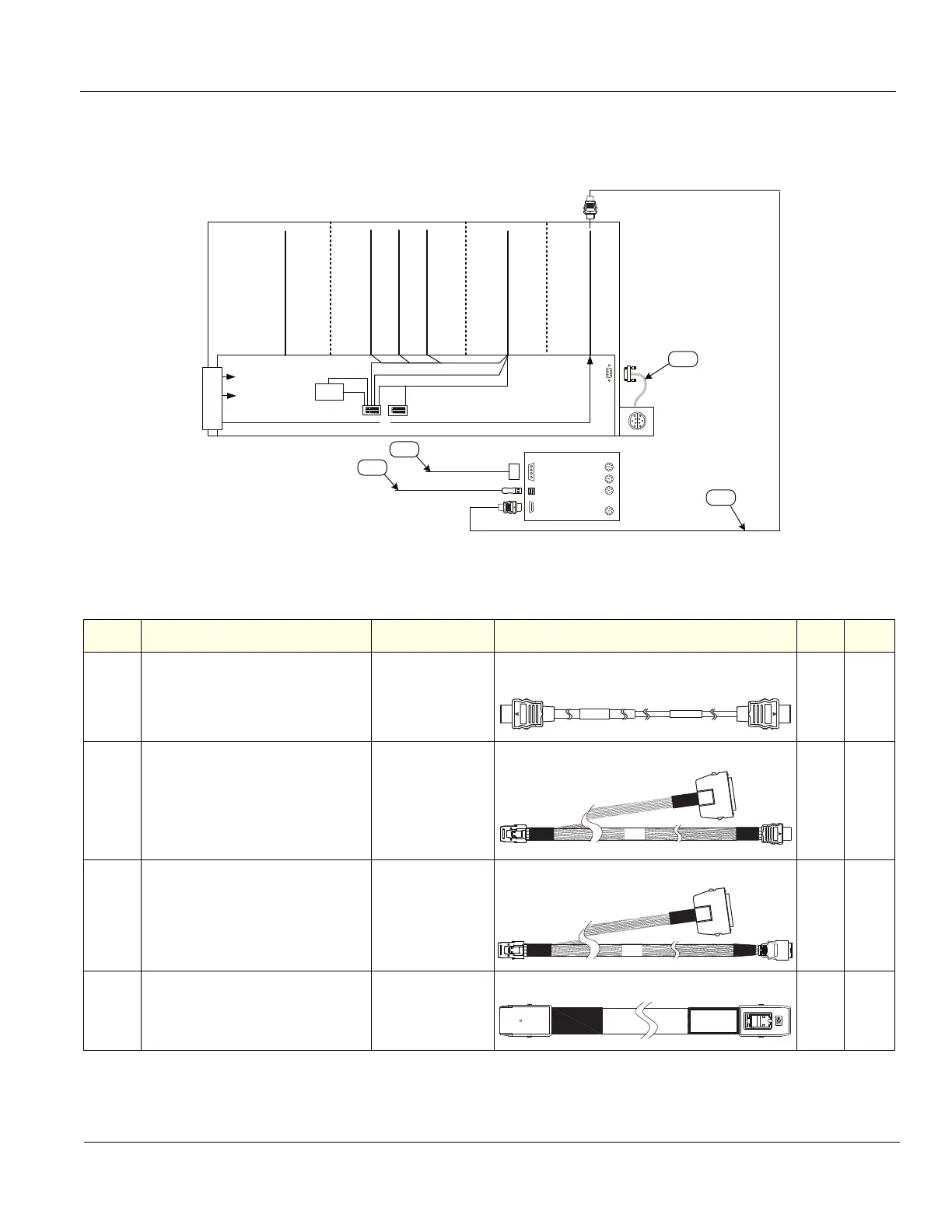

Figure 9-11 Card Rack Cables - V Nav Inside Option
Table 9-40 Card Rack Cables 1 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
Cable, PC2GFI Card
R3.x and earlier
5152290
Cable J
PCI Express (PCIe) (GFI to BEP-J5)
1Y
2.
Cable, BEP to Card Rack BackPlane
and PCI Express - MRX
R3.x and earlier
5372764
Cable Na
1Y
3.
Cable - BEP6 to Phase 1 Version
Backplane
GFI
R4.x and later
5391509 1Y
4.
Cable - iPASS BEP6 to MRX
Backplane - LE9
R4.x and later
5431486
Cable J
1Y
BAYBIRD
(VGU
OPTION)
CW PROBE
CONNECTION
(BT2010 OPTION)
S
USB
POWER
RELAY
MRX
GTX GTX GTX
PD
BACKPLANE
A
BSCAN
PCI EXPRESS
4D MOTOR DRIVE
CARD RACK
+5V
VPD
I2C
METAL SHIELD METAL SHIELD METAL SHIELD
J1
J2
EXTRA PCI
EXPRESS LANES
DOPPLER AUDIO
DC
VOLTAGES
(X2 = P4 on MPS)
PULSER
VOLTAGES
(X1 = P3 on MPS)
EE
Y
Z
BEP J5
BACKPLANE
J2 (LEFT)
IO BOARD
J36
MBOARD
J3
5372764 REV X
#NAME#
#ORIGIN#
#DATE#
MOTHERBOARD
IPASS2 (LEFT)
BACKPLANE
J3
MBOARD
J3
5391509 REV X
#NAME#
#ORIGIN#
#DATE#
BEP
BULKHEAD
5431486 REVX
#NAME# #SUPPRTNO#
MADE IN #ORIGIN#
#DATE#
