4-3-8-3 Transporting the System
Use extra care when transporting the system using vehicles. In addition to the instructions used when
moving the system (see 4-3-8-1 "Before moving the system" on page 4-13), also perform the following:
• Only use vehicles that are designed for transport of the system.
• Ensure that the transporting vehicle can handle the weight of the system plus the passengers.
• Employ two to three persons to load and unload safely from a vehicle.
• Ensure that the load capacity of the lift (a minimum of 85 kg (LOGIQ S8)/97 kg (LOGIQ E8) is
recommended) is capable of handling the weight of the system.
• Ensure that the lift is in good working order.
• Secure the system with straps or as directed otherwise to prevent motion during transport.
• Prevent vibration damage by driving cautiously. Avoid unpaved roads, excessive speeds, and
erratic stops or starts.
Load the system onto a vehicle
1.) Load and unload the system to a vehicle parked on a level surface.
2.) Secure the system while it is on the lift so that it cannot roll. Use either wood chocks, restraining
straps, or other similar types of constraints. Do not attempt to hold it in place by hand.
3.) Load the unit aboard the vehicle carefully and over its center of gravity. Keep the unit still and
upright.
NOTE: Do not lay the unit down on its side.
4.) Ensure that the unit is secured inside the vehicle. Strap the system with belt to prevent movement
while in transit. Twist the belt around the rear handle (1) and the footrest/caster (2).
NOTE: DO NOT restrain the LOGIQ S8 at the LCD monitor or the monitor neck using a belt.

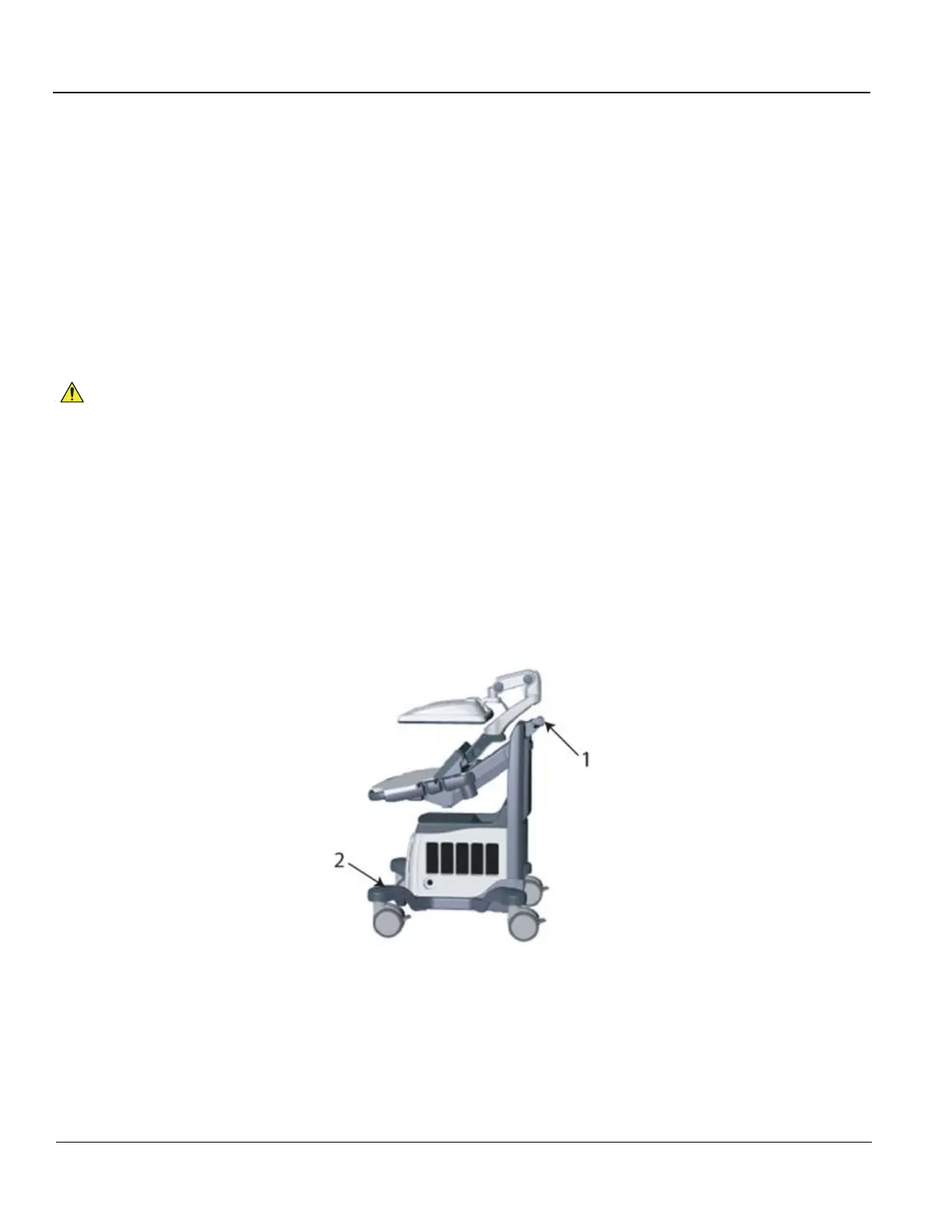

Figure 4-13 Wrapping position of the belt
5.) Drive cautiously to prevent vibration damage.
WARNINGWARNING
NEVER RIDE ON THE LIFT WITH THE SYSTEM. A PERSON'S WEIGHT COUPLED WITH
THE WEIGHT OF THE SYSTEM MAY EXCEED THE LOAD CAPACITY OF THE LIFT.
