GE M60

CHAPTER 5: SETTINGS GROUPED ELEMENTS
M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL 5-217
5

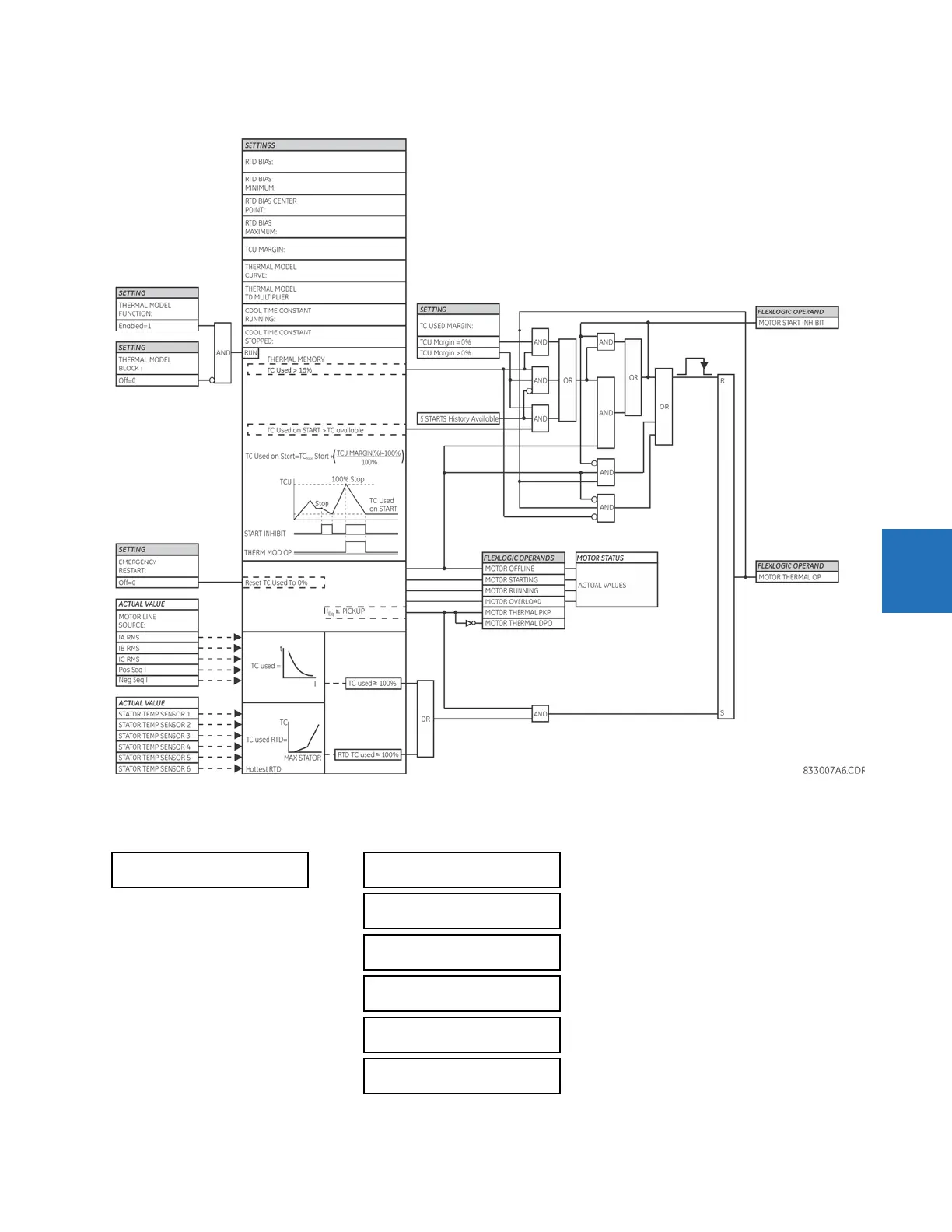

Figure 5-116: Thermal model logic
5.7.3.4 AMP unbalance (ANSI 46)
SETTINGS  GROUPED ELEMENTS  SETTING GROUP 1(6)  MOTOR  AMP UNBALANCE 1(2)
 AMP UNBALANCE 1


AMP UNBAL 1
FUNCTION: Disabled
Range: Disabled, Enabled

AMP UNBAL 1 PICKUP:
0.0%
Range: 0.0 to 100.0% in steps of 0.1

AMP UNBAL 1 PICKUP
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01

AMP UNBAL 1 RESET
DELAY: 0.00 s
Range: 0.00 to 600.00 s in steps of 0.01

AMP UNBAL 1 BLOCK:
Off
Range: FlexLogic operand

AMP UNBAL 1 TARGET:
Self-reset
Range: Self-reset, Latched, Disabled
