3-8 M60 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
PANEL CUTOUTS CHAPTER 3: INSTALLATION
3
For side-mounting M60 devices with the standard front panel, use the following figures.

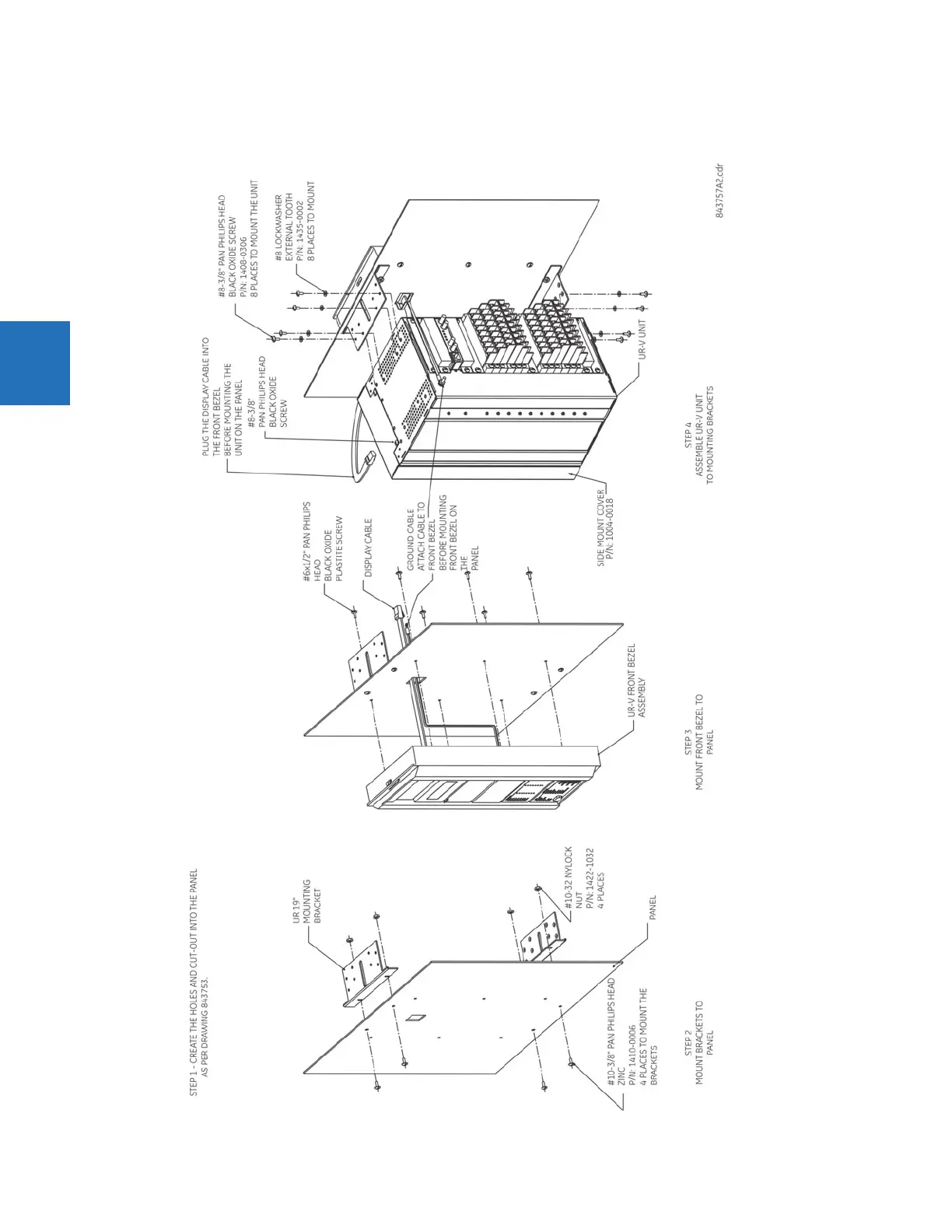

Figure 3-7: Vertical side-mounting installation (standard front panel)
