Recording an ECG or Rhythm
4
Recording an ECG or Rhythm

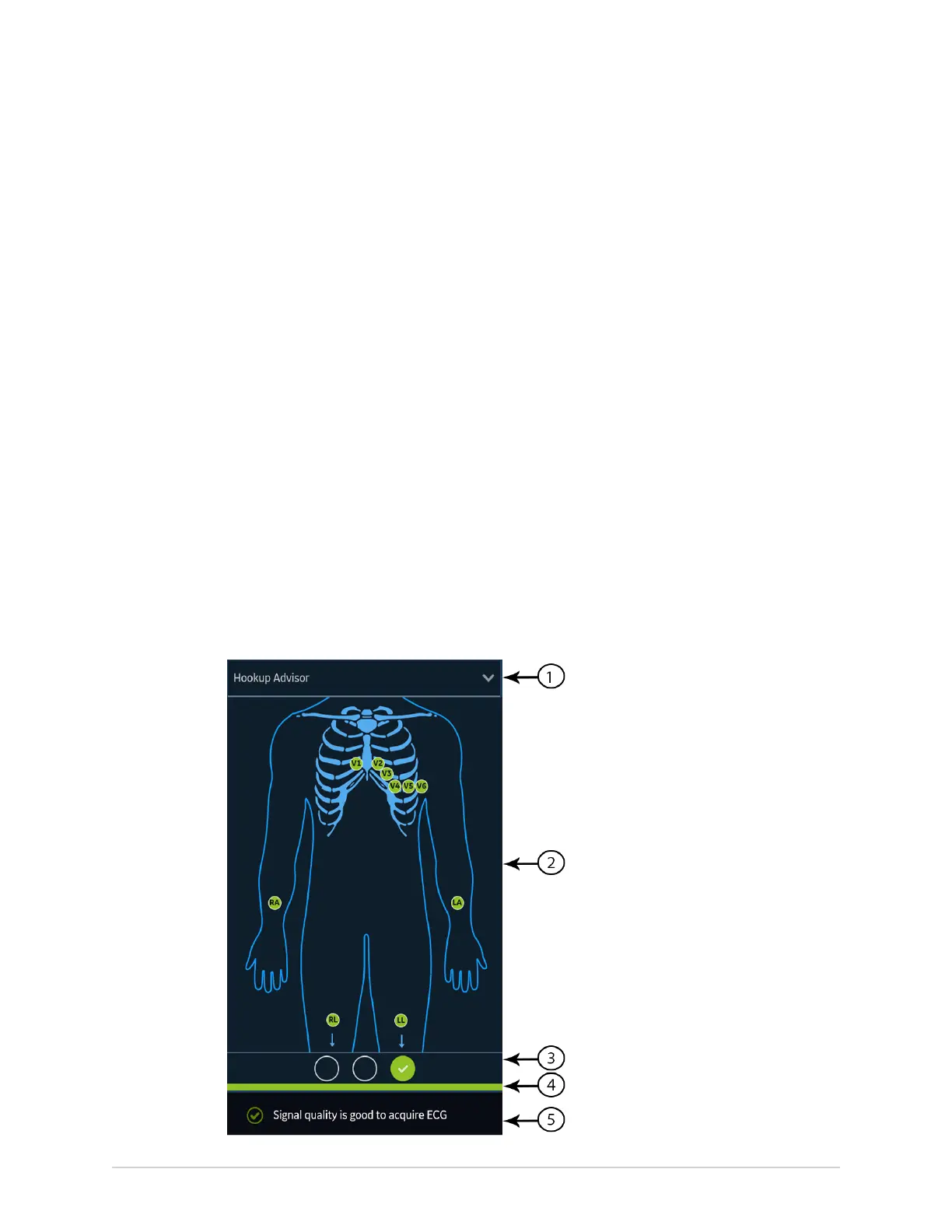

Hookup Advisor Overview
The Hookup Advisor is a tool to monitor the lead signal quality during ECG
acquisition. It can decrease or eliminate the occurrence of poor quality ECGs, save
time, and prevent the necessary to restart the ECG.
The Hookup Advisor reports the status based on signals from each leadwire.
When you connect the RA/R leadwire and another leadwire to the patient, an
electrode placement image expands in the Hookup Advisor panel. If all leadwires are
disconnected from the patient, the electrode placement image collapses after a few
seconds.
2088531-370-2  MAC VU360
™
Resting ECG Analysis System 41

GE MAC VU360 Specifications

General

Device Type	Electrocardiograph
Power	100-240 V AC, 50/60 Hz
Battery Type	Lithium-ion
Connectivity	USB
Data Storage	Internal memory, USB drive
Sampling Rate	1000 samples per second
Battery Life	Up to 4 hours
