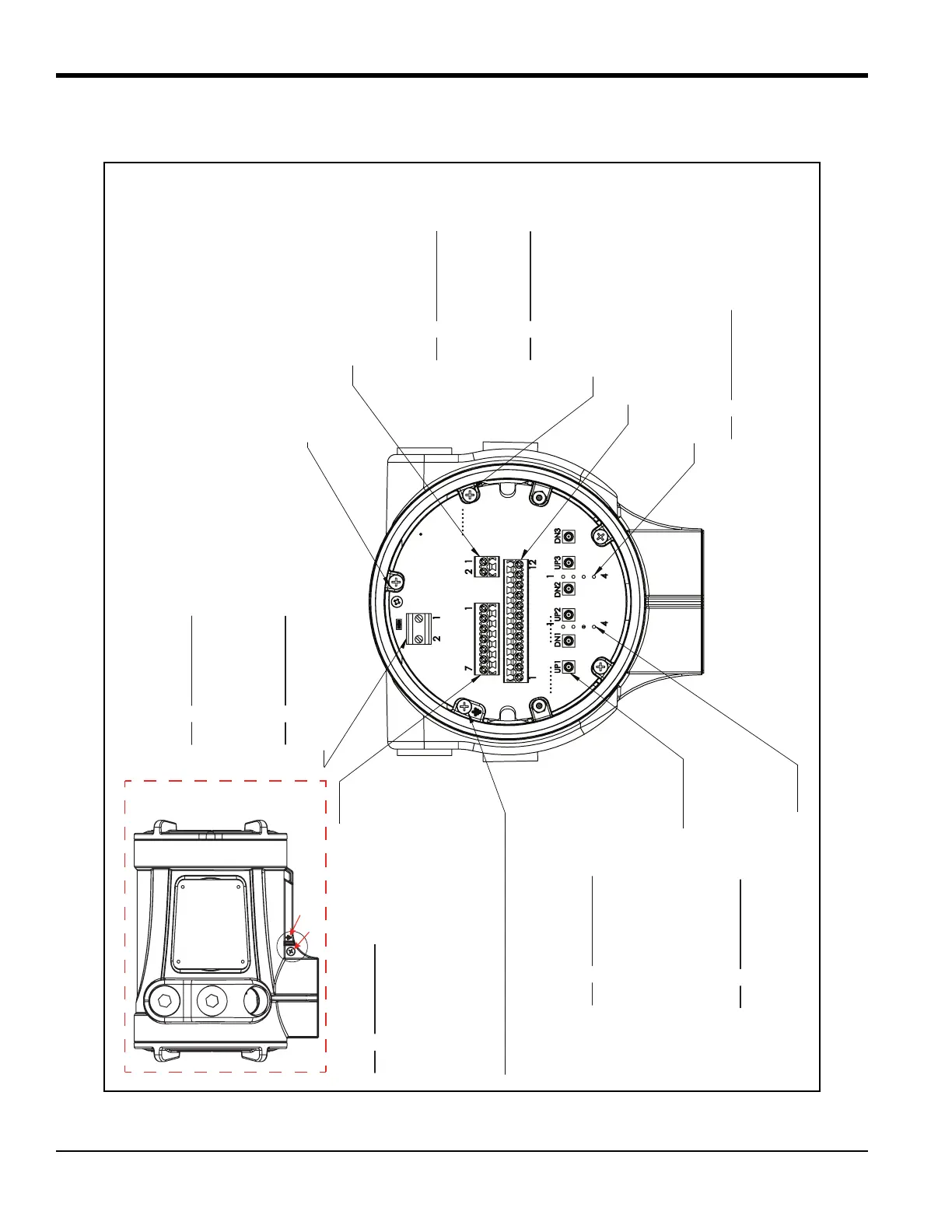

Figure 6: XMT1000 Terminal Board Wiring Diagram (ref. dwg. 702-2040)
CH2 FLYING LEAD TERMINAL BLOCK (TB6) ACCEPTS 26-12 AWG WIRE PIN DESCRIPTION 1 CH 2 DOWNSTREAM SIG (+) 2 CH 2 DOWNSTREAM RTN (-) 3 CH 2 UPSTREAM RTN (-) 4 CH 2 UPSTREAM SIG (+)
CH1 FLYING LEAD TERMINAL BLOCK (TB5) ACCEPTS 26-12 AWG WIRE PIN DESCRIPTION
1 CH 1 DOWNSTREAM SIG (+) 2 CH 1 DOWNSTREAM RTN (-) 3 CH 1 UPSTREAM RTN (-) 4 CH 1 UPSTREAM SIG (+)
MCX TERMINAL CONNECTORS ACCEPTS 50  RIGHT ANGLE MCX PLUG PIN DESCRIPTION
UP1 CH 1 UPSTREAM DN1 CH 1 DOWNSTREAM UP2 CH 2 UPSTREAM DN2 CH 2 DOWNSTREAM UP3 CH 3 UPSTREAM DN3 CH 3 DOWNSTREAM
*ENCLOSURE MAIN CUSTOMER GROUND
STANDARD I/O TERMINAL BLOCK (TB3)
ACCEPTS 26-12 AWG WIRE PIN DESCRIPTION
1 RS485 MODBUS (+) 2 RS485 MODBUS (-) 3 RS485 COMMON 4 FREQUENCY/TOTALIZER/CAL (+) 5 FREQUENCY/TOTALIZER/CAL (-) 6 ANALOG 4-20MA OUT (+) 7 ANALOG 4-20MA RTN (-)
ADDITIONAL CUSTOMER GROUND, 3X
PCB GROUND
DIGITAL COMMUNICATION TERMINAL BLOCK (TB1)  NONE, [OR] +$577(50,1$/%/2&. ACCEPTS 26-12 AWG WIRE PIN DESCRIPTION
1 HART (+) 2 HART (-) [OR] )281'$7,21),(/'%86 ACCEPTS 26-12 AWG WIRE PIN DESCRIPTION 1 FIELDBUS NET (+) 2 FIELDBUS NET (-)
ANALOG I/O TERMINAL BLOCK (TB2) ACCEPTS 26-12 AWG WIRE  FOR FUTURE USE
LINE POWER TERMINAL BLOCK (TB4) ACCEPTS 20-10 AWG WIRE
$&
PIN DESCRIPTION
1 (L1) LINE 2 (L2/N) NEUTRAL * CONNECT GROUND TO CHASSIS [OR] '& PIN DESCRIPTION 1 + 2 - * CONNECT GROUND TO CHASSIS
CASTED GROUND SYMBOL
EXTERIOR GROUND SCREW
[TB1]
[TB2]
[TB3]
[TB4]
[TB5]
[TB6]
