GE PanaFlow XMT1000

Chapter 2. Programming
22 PanaFlow™ XMT1000 User’s Manual
2.5 Menu Maps (cont.)

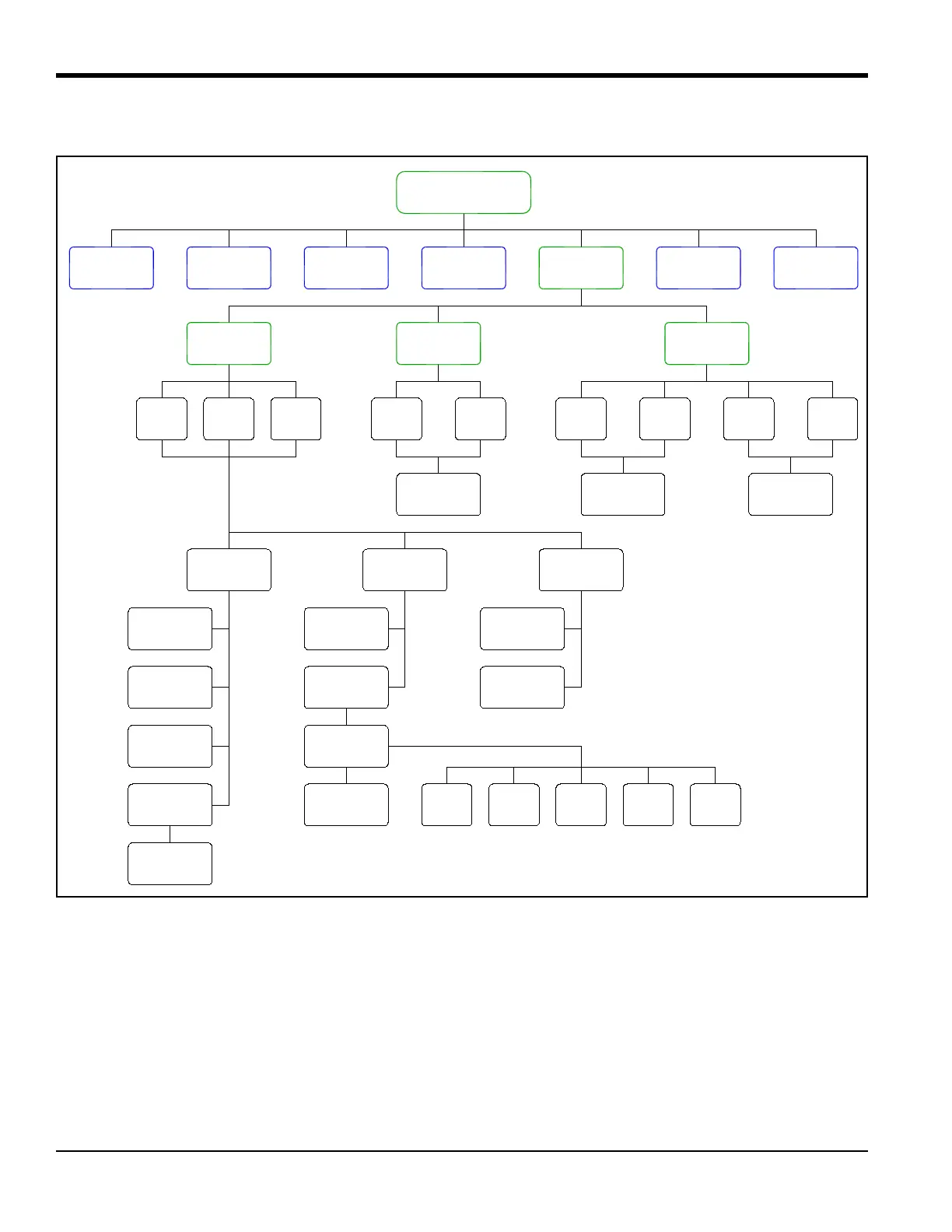

Figure 13: SENSOR SETUP Menu Map (Rev. 10)
(No Off for Ch1)
SYSTEM
MAIN Board I/O
OPTION Boards
HART SENSOR SETUP CALIBRATION ADVANCED
Password
Operator/Admin
0.2 0.5
1M 2M
4M
Pipe OD
Pipe ID/WT
Configure
Channel
Ch 1 Ch 2 Ch 3
In
mm
Pipe OD
ID-In ID-mm WT-In WT-mm
Pipe ID
Thickness
Wall
Path
Length
Axial
Standard
Special
Frequency
Static Tw
Transducer
Configure
Off
Midradius
Other
Chord Input
TD
