PanaFlow™ XMT1000 User’s Manual 13
Chapter 2. Programming
Chapter 2. Programming
2.1 Introduction
This chapter provides instructions for programming the various features of the XMT1000 flow transmitter. Before the
XMT1000 can begin taking measurements, settings for the User Preferences and Inputs/Outputs must be entered and
tested. To program your XMT1000, see the next section for programming instructions and refer to “Menu Maps” on
page 16 to configure the desired features.
Note: For help with the programming of any system parameters which may be unclear, refer to “Glossary of Terms”
on page 15 for a brief description of the standard flow meter terminology used in this manual.
2.2 Using the Magnetic Keypad
The display window on the XMT1000 includes the components shown in Figure 7 below.

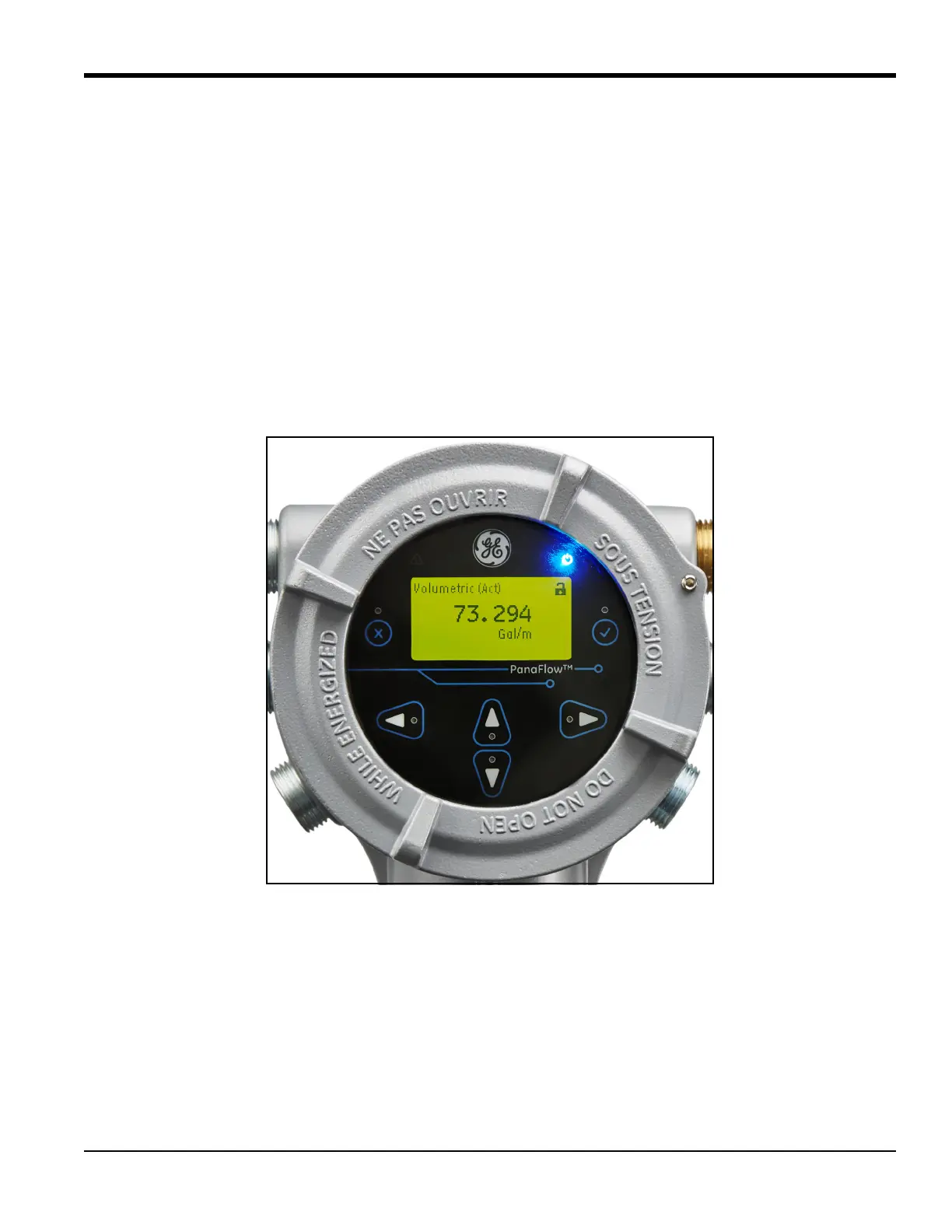

Figure 7: The Display and Keypad
IMPORTANT: The XMT1000 magnetic keypad enables programming of the instrument through the glass faceplate
without removing the cover. Thus, all programming procedures may be performed while the unit is
installed in a hazardous area.
