D.10 Error Handling
The flow meter publishes the error status on the Fieldbus along with the real data. The error status can be seen in the
CH_x_Reported Error parameter on the Channel Transducer Block. In addition, the Quality parameter shown with
each of the process variables reports the error. In Figure 32 below, the
CH1_REPORTED_ERROR shows as E1.
Note: For more information on the actual measurement errors and possible causes, see Chapter 3, Error Codes and
Troubleshooting.

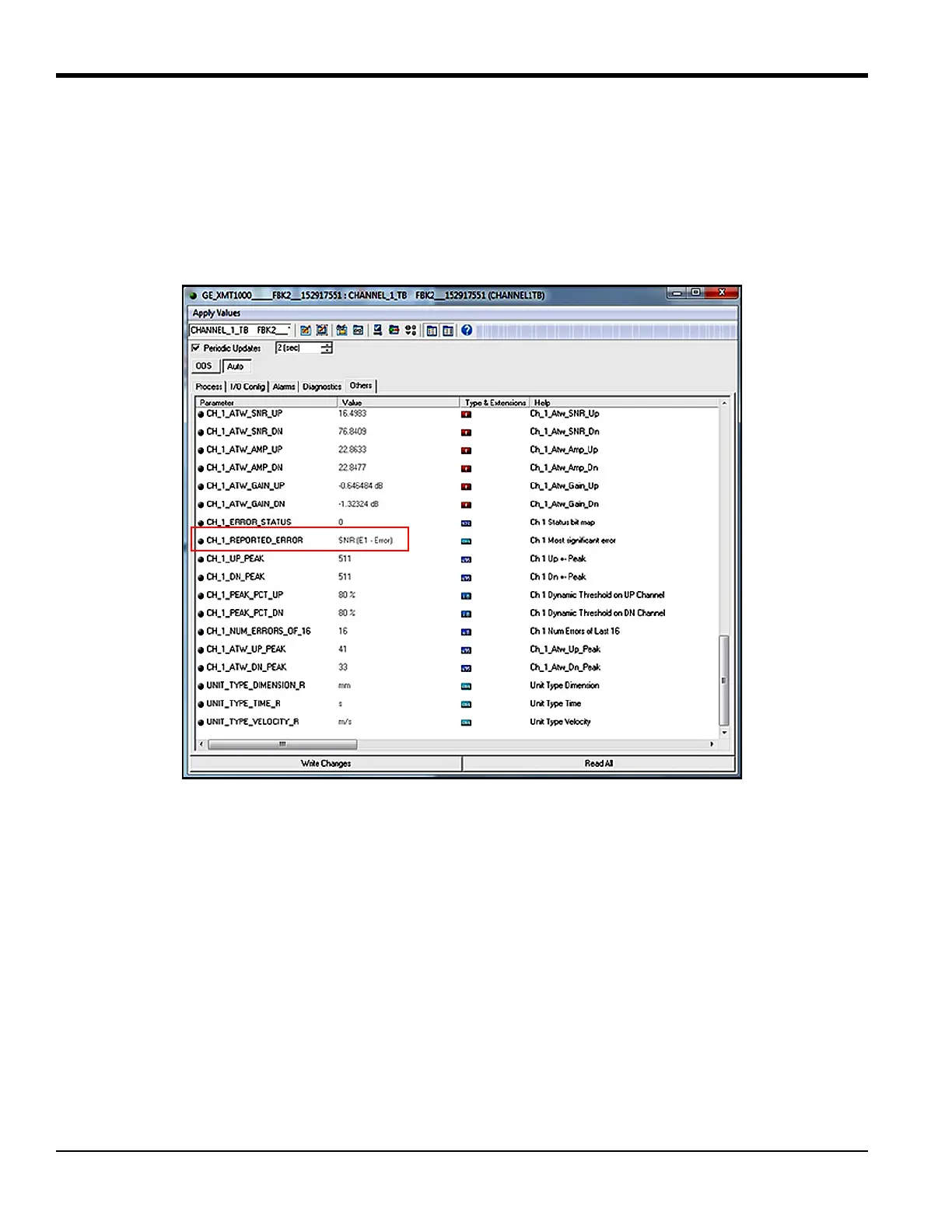

Figure 32: Reported Error
