D.3.4 User Layer
D.3.5 Function Blocks

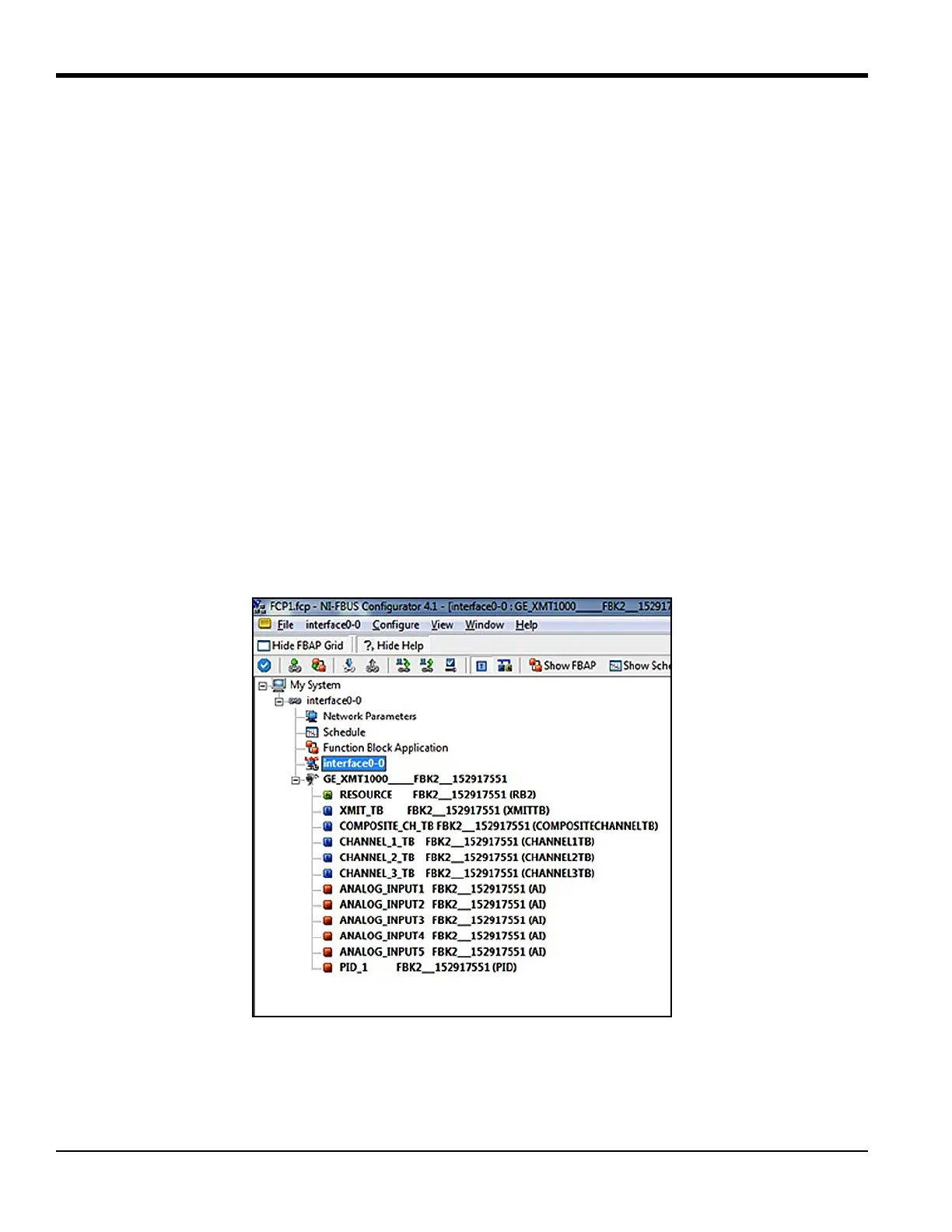

Figure 23: XMT1000 FF Blocks
FB Application Manufacturer: Softing AG
Function Blocks: 5-AI(e), 1-PID
Supports Block Instantiation: No
Firmware Upgrade over Fieldbus: No
Configuration Write Protect: HW Jumper on PCB
Resource Block Class Type: Enhanced (Field Diagnostics)
Transducer Blocks: XMIT, COMPOSIT CH, CH 1, CH 2, CH 3
Transducer Block Class Type: Custom
Function Blocks: AI (5), PID
FB Execution Time (ms): 20, 40
Function Block Class Type: Standard
