PanaFlow™ XMT1000 User’s Manual 67
Appendix D. Foundation Fieldbus Communication
D.5 XMIT Transducer Block
The XMIT transducer block contains parameters that can be transmitted onto the Fieldbus via the AI block. The user can
view real time data and select the units for each of the parameters (see Figure 27 below).

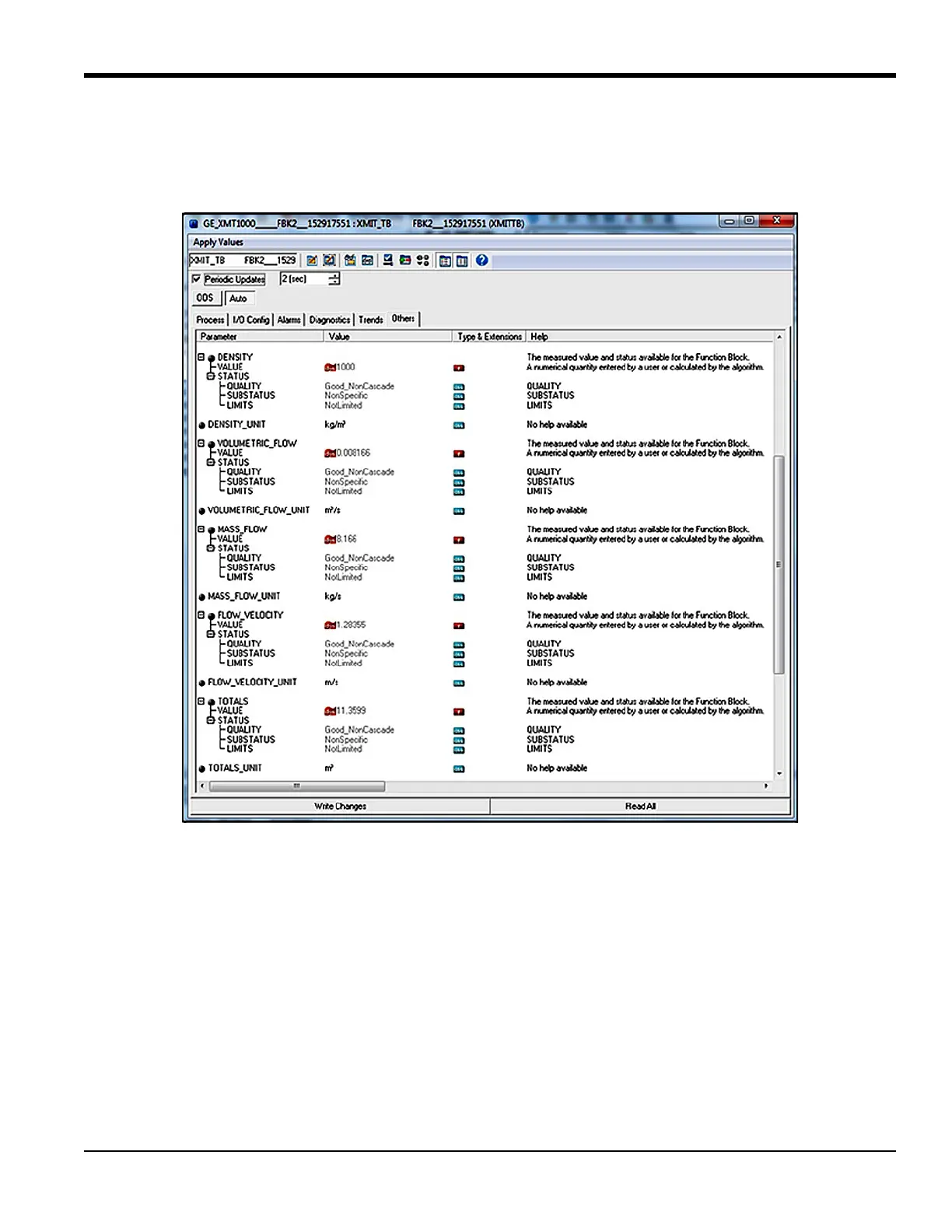

Figure 27: Measurement Parameters and Units in XMIT Transducer Block
