PanaFlow™ XMT1000 User’s Manual 69
Appendix D. Foundation Fieldbus Communication
D.6 Composite Transducer Block
The Composite Transducer Block provides the measurement values and programmable parameters that are common
to all three paths. Figure 28 below shows the
Composite Transducer Block and Table 9 on page 70 lists the
Measurements and Parameters that are available.
Note: The
R/W designation means that the parameter is writable in FF using an Admin password.

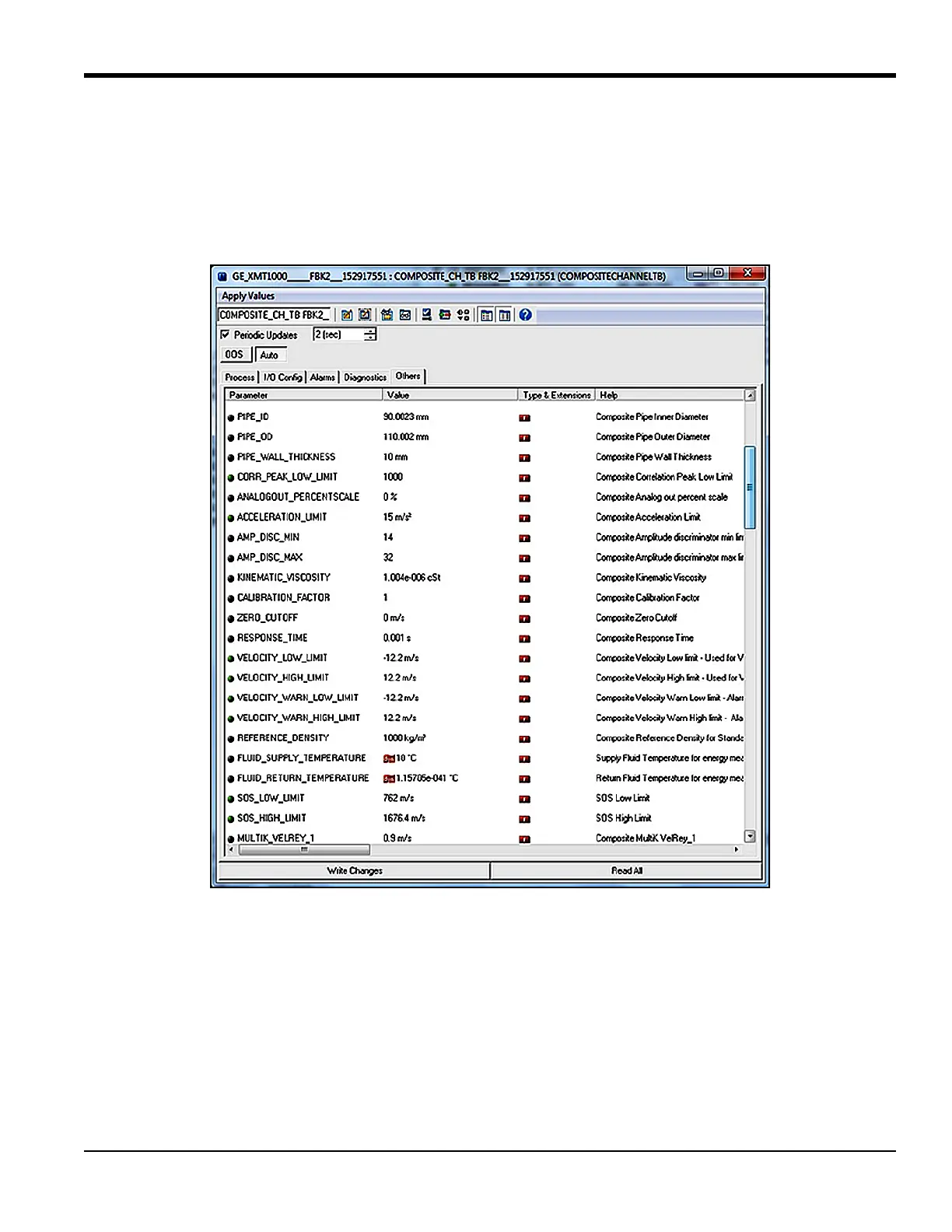

Figure 28: Composite Transducer Block
