PanaFlow™ XMT1000 User’s Manual 73
Appendix D. Foundation Fieldbus Communication
D.7 Channel Transducer Block
The CH1, CH2 and CH3 transducer blocks show the measurement values and programmable parameters for each of the
three paths. Figure 30 below shows the
Channel Transducer Block, and Table 10 on page 74 lists the measurements
and parameters that are available.
Note: The
R/W designation means that the parameter is writable in FF using an Admin password.

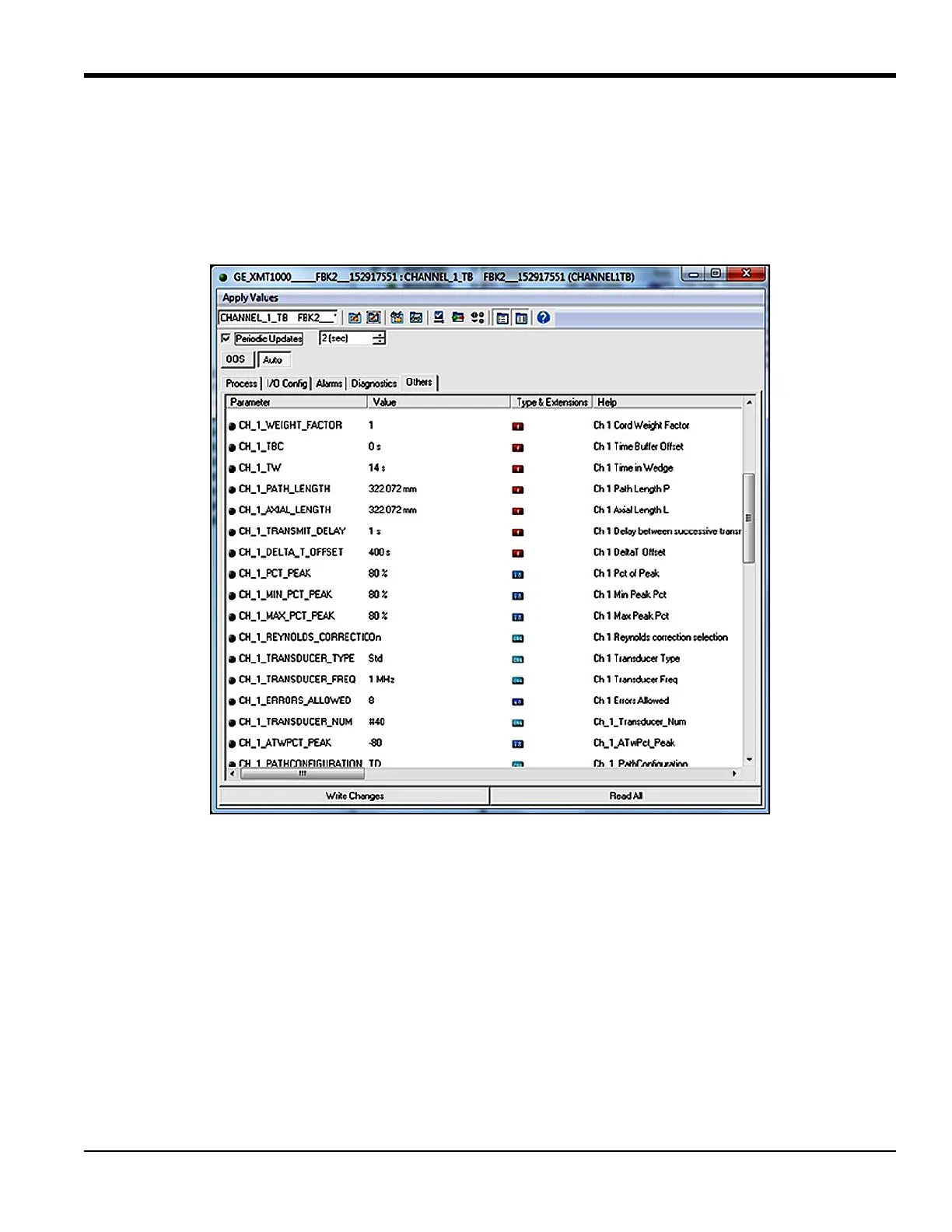

Figure 30: Channel Transducer Block
