– 8 –

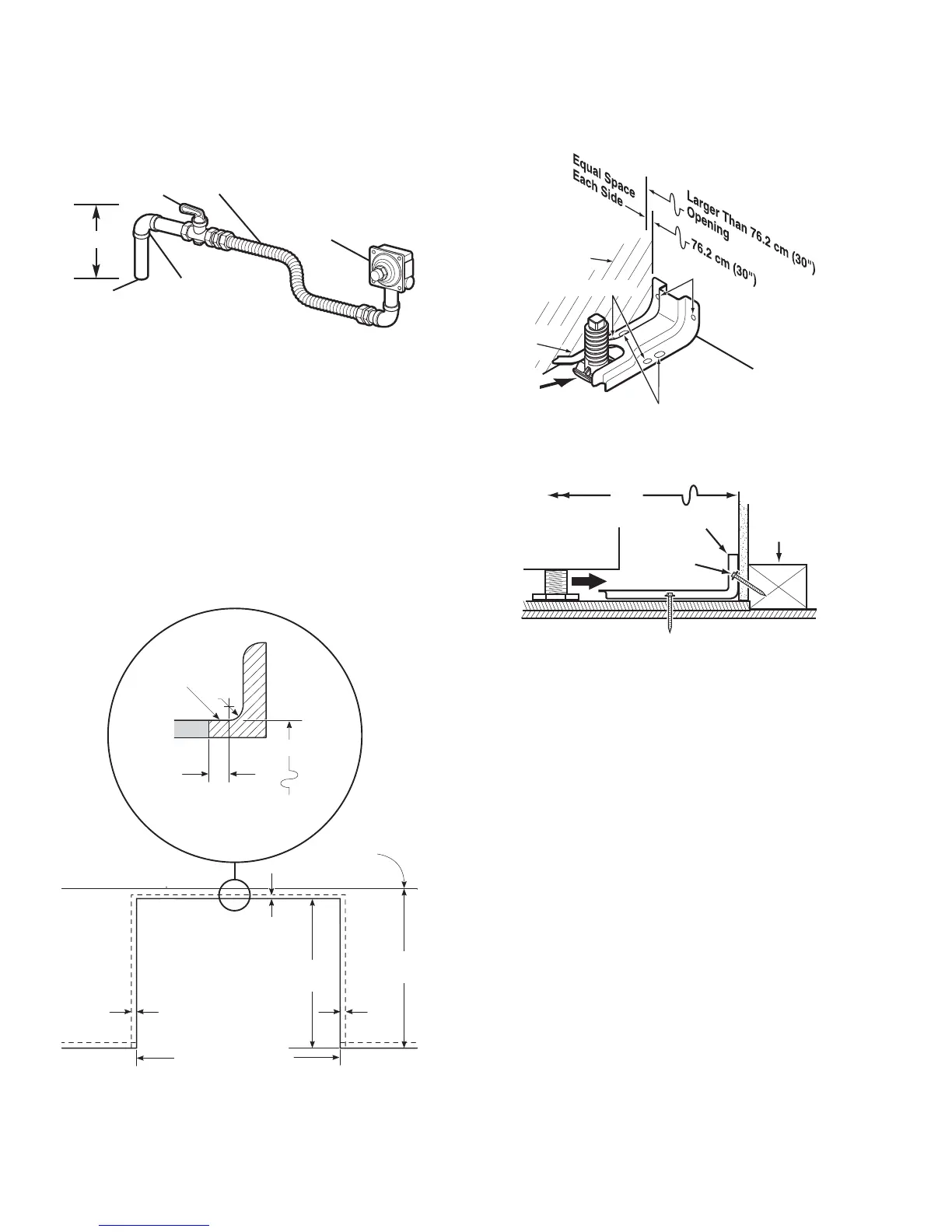

Gas Supply Shutoff Valve
The cooktop itself is not equipped with a gas shut-
off valve. If installed correctly, a shutoff valve will
be in the main gas supply line “upstream” of the
appliance pressure regulator.
WARNING: All ranges can tip causing injury. Install
anti-tip device packed with range. The anti-tip
device should be attached to the wall.
Anti-Tip Device
Note: Check for proper operation by carefully
tipping the range forward.
Standard Installation
If the construction of your cabinet cannot provide
a 1/4-in. fl at area at the back of the countertop
opening, consider changing the countertop to
accommodate this dimension.
Note: A 1-1/2 in. minimum clearance must be
maintained between the rear edge of the cooktop
and the rear wall above the cooktop.
1/4″ min.
flat
9/16″
min.
flat
29-15/16″–30-1/16″
smooth cut
23-3/16″
typically
25″
typically
Wall
Flat area
R
1/4″
9/16″
min.
flat
36″
Front
Floor
Back
Pressure
regulator
Gas
supply
line
90° street
elbow
Shut-off valve Flexible gas line
7″ Max.
Rear
leveling leg
Wall
FLOOR-CONCRETE
FLOOR-WOOD
Bracket
side
Adjacent
cabinet
Fig. 1
Top front
edge of
countertop
25″
Wall plate
Screw
must enter
wood or
metal
Bracket
Fig. 2
