GE PM880 User Manual

August 2003
8-18 Servicing the PM880
Installing New Software (cont.)
1. In the Hyperterminal window, pull down the Transfer menu
and click Send File. A window opens similar to Figure 8-16
below.

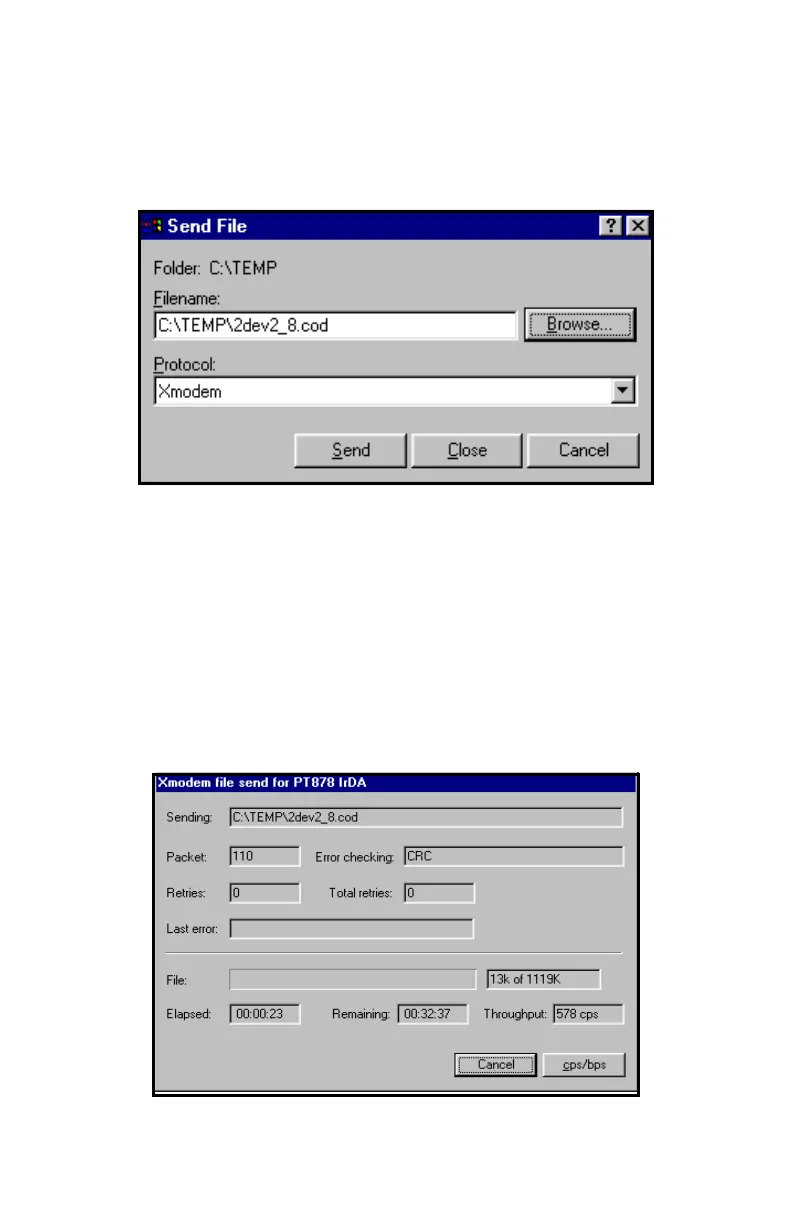

Figure 8-16: The Send File Window in the Transfer
Menu
2. Click on the replacement software (designated by a .cod
extension) from the folder where it has been stored.
3. From the Protocol drop-down menu, select Xmodem.
4. Click Send. For a successful transfer, the PC window appears
similar to Figure 8-17 below, while the PM880 screen
displays the program ID, size, load address and a count of
blocks being loaded.
Figure 8-17: The File Transmission Window
