Initial Setup 2-9
August 2003
Installing the Probes (cont.)
Note: Standard moisture probes have a sintered stainless-steel
shield that protects the aluminum oxide sensor. Leave the
shield in place for maximum protection.
It is important to eliminate all leaks for safety reasons and to be
sure that measurements are not affected by ambient
contamination. GE Panametrics recommends conducting a leak
test of the sample system prior to operation.
Connecting the Probe to the PM880
Connect the probe cable to the top of the unit as shown in Figure
2-3 below.

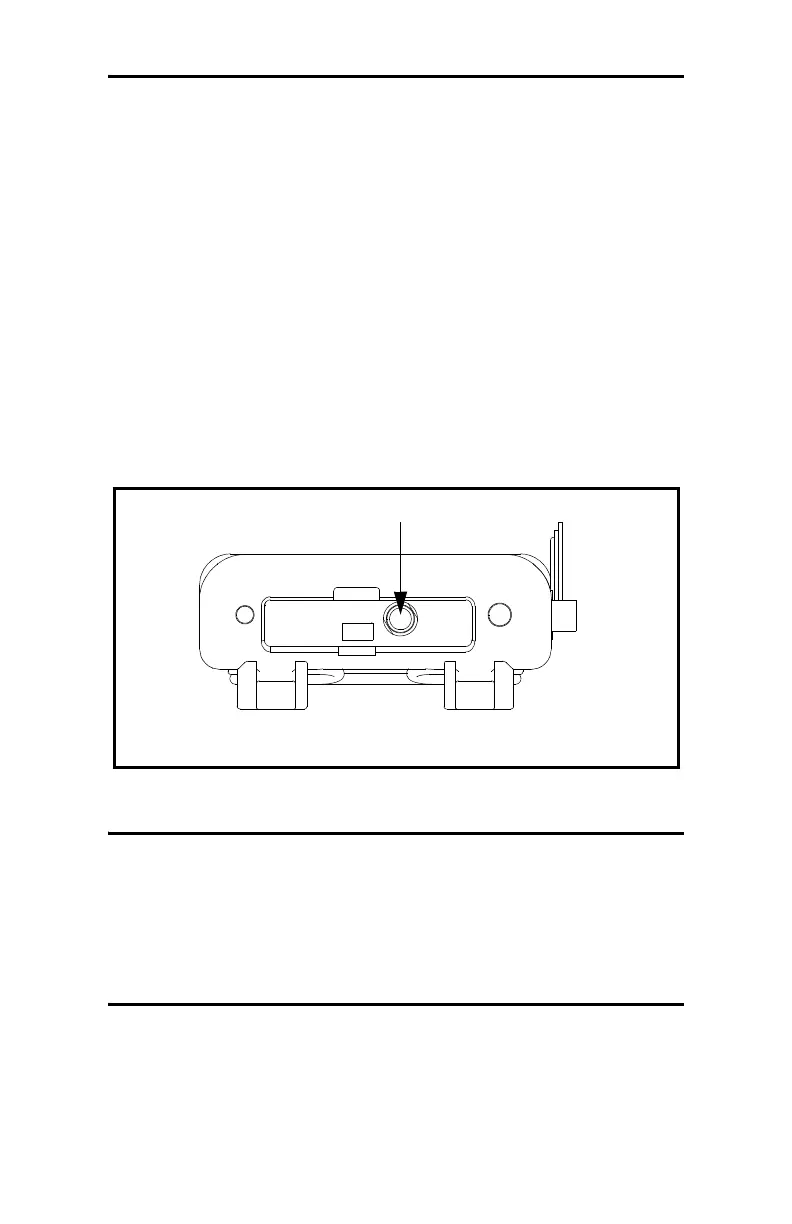

Figure 2-3: Connection Locations
!WARNING!
To ensure the safe operation of the PM880, you
must install and operate it as described in this
manual. In addition, be sure to follow all
applicable safety codes and regulations for
installing electrical equipment in your area.
Probe Input
To Next Page
