Using the Screen and Keypad
The essential features for operating the PM880 are the screen and
keypad. Although these features are common on portable
instruments, the PM880 design offers particular features to
simplify and speed operation.
Screen
The primary function of the screen is to display information in
order for you to accurately and easily take measurements. The
PM880 screen consists of seven parts (see Figure 2-7 below).

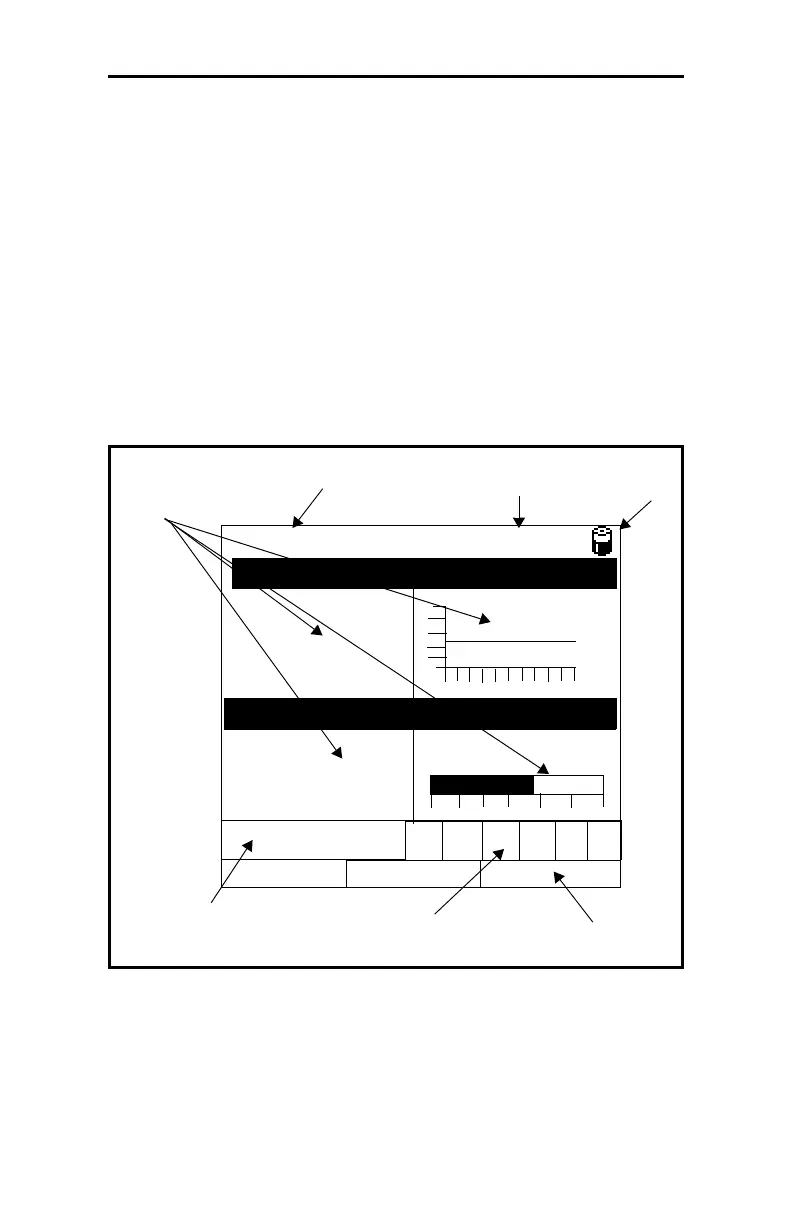

Figure 2-7: The PM880 Screen in Operate Mode
The top line of the screen is the status bar, which normally
displays the time and date. However, when you press
[MENU]
(the menu key), the Menu Bar replaces the status line.
2002/11/30 09:53 AM
Dew Point, °C
Temperature, °C
-52.0
23.0
Pressure, PSIg
55.00
10.0
Run Time, Hours
ABC.SIT
K
K
K
10 Minutes
-30
70
0
612
Status Bar
(alternates with
Measurements
Error Messages
Function Keys
Menu Bar)
Current
Site
Battery
Status
System
Tray
To Next Page
