54

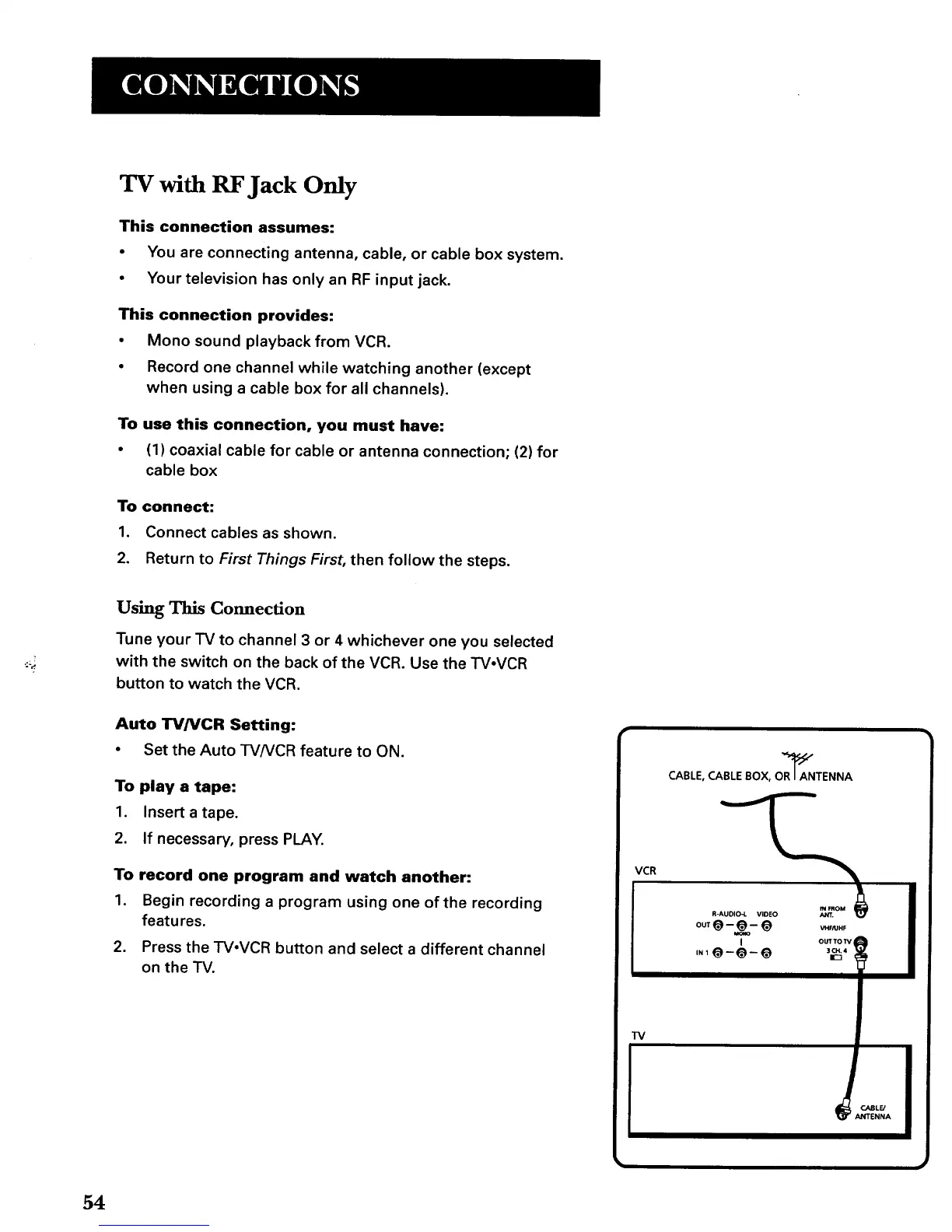

TV with RF Jack Only
This connection assumes:
• You are connecting antenna, cable, or cable box system.
• Your television has only an RF input jack.
This connection provides:
• Mono sound playback from VCR.
• Record one channel while watching another (except
when using a cable box for all channels).
To use this connection, you must have:
• (1) coaxial cable for cable or antenna connection; (2) for
cable box
To connect:
1. Connect cables as shown.
2. Return to First Things First, then follow the steps.
Using This Connection
Tune your TV to channel 3 or 4 whichever one you selected
with the switch on the back of the VCR. Use the TVoVCR
button to watch the VCR.
Auto TVNCR Setting:
• Set the Auto TVNCR feature to ON.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one ofthe recording
features.
2. Press the TV•VCR button and select a different channel
on the TV.
VCR
TV
CABLE, CABLE BOX, OR_ANTENNA
FROM
R-AUDIO-L VIDEO ANT.
ou,@- O- _ .....
To Next Page
