Maintenance
Adjust hydraulic suspension
2018-9015-001
09-2016
141 / 192

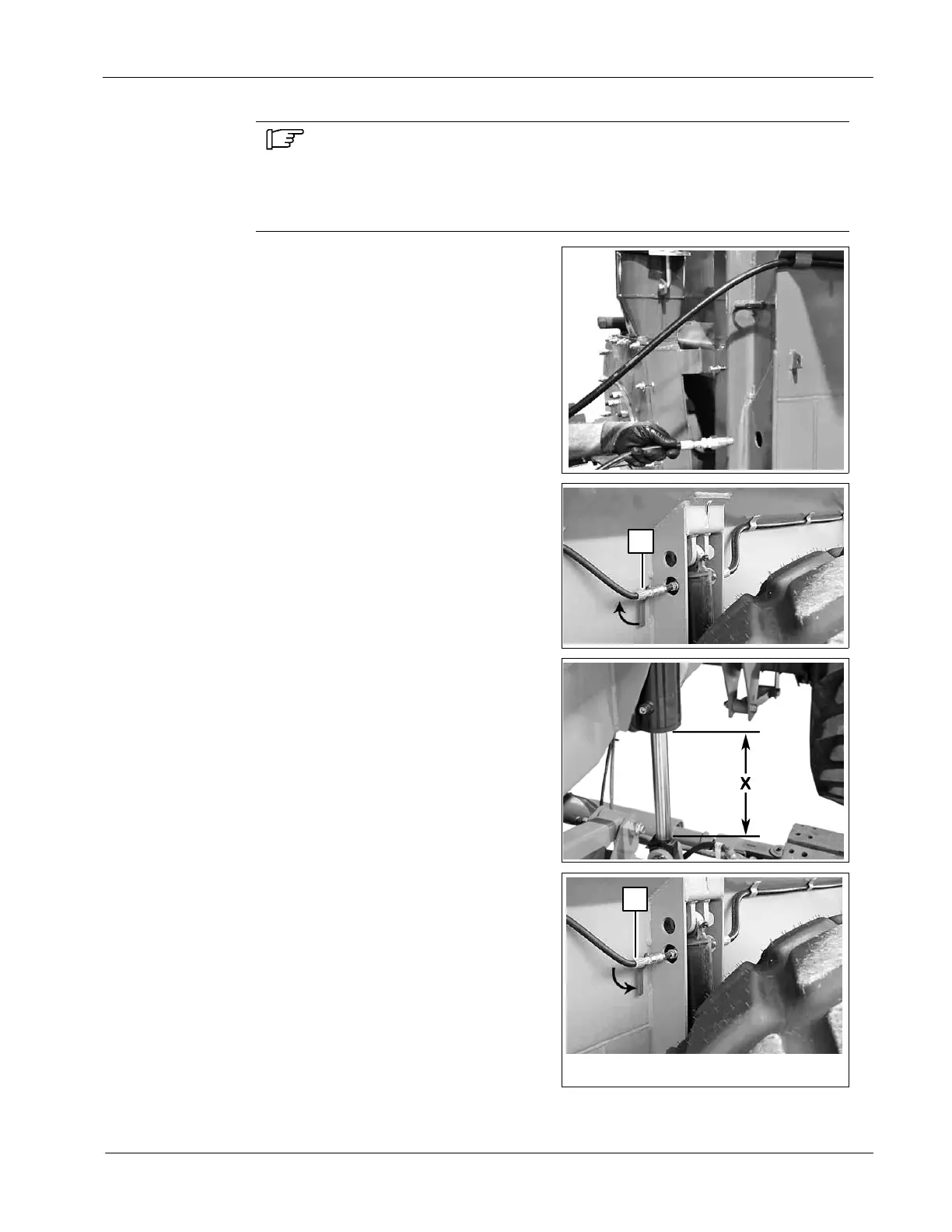

Adjustment for suspension with oil on top of piston
Note!
Position this product and the tractor on a flat and level surface to
proceed with the suspension adjustment. The adjustment must be
done on one side of the spreader at a time. Make sure the oil level in
the tractor or hydraulic power unit is sufficient.
● Remove the suspension hydraulic
hose from the frame. The hose is
located at the front of the spreader;
● Connect the suspension hydraulic
hose to the tractor;
● Open the ball valve (1) of the
suspension hydraulic hose;
● Engage the hydraulics to add or to
remove oil in the suspension
cylinders;
1
● To add oil in the cylinders, the
cylinders must be filled and fully
extended. Engage the hydraulics to
remove a small amount of oil in order
to remove air inside the cylinders;
● Add oil until the length of the
suspension rod (X) reaches 6”
(150mm);
● Disengage the hydraulics;
● Close the ball valve (1) of the
suspension hydraulic hose;
● Disconnect the suspension
hydraulic hose and place it inside the
spreader frame;
● Repeat all steps to adjust the
suspension cylinders on the other
side of the spreader.
1
To Next Page
