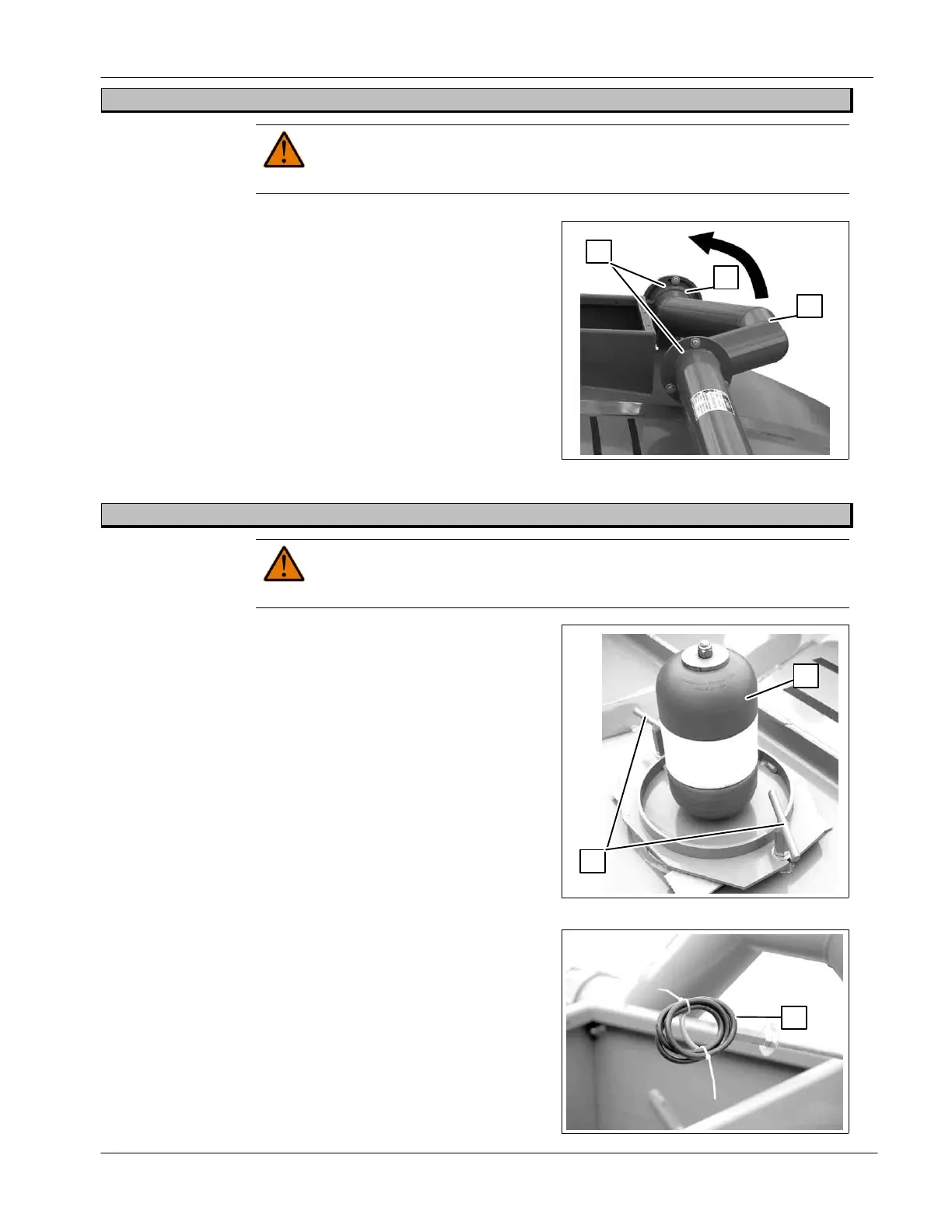

5.10 Anti-siphon assembly
Warning!
Beware of potential falls: always walk on the nonslip band installed on
the product.
● Loosen the bolts holding the disc
flanges (1) and the collar (2);
● Turn the anti-siphon (3) upward;
● Tighten the bolts holding the disc
flanges (1) and the collar (2).
1
2
3
5.11 Top fill indicator assembly
Warning!
Beware of potential falls: always walk on the nonslip band installed on
the product.
● Unscrew both handles (1);
● Remove the top fill indicator (2) from
the opening;
2
1
● Remove the O-ring (3) fastened to
the top fill indicator;
3
