Handling and assembly
Fenders assembly (optional)
2018-9015-001
09-2016
58 / 192
5.14 Fenders assembly (optional)
1
1*
1

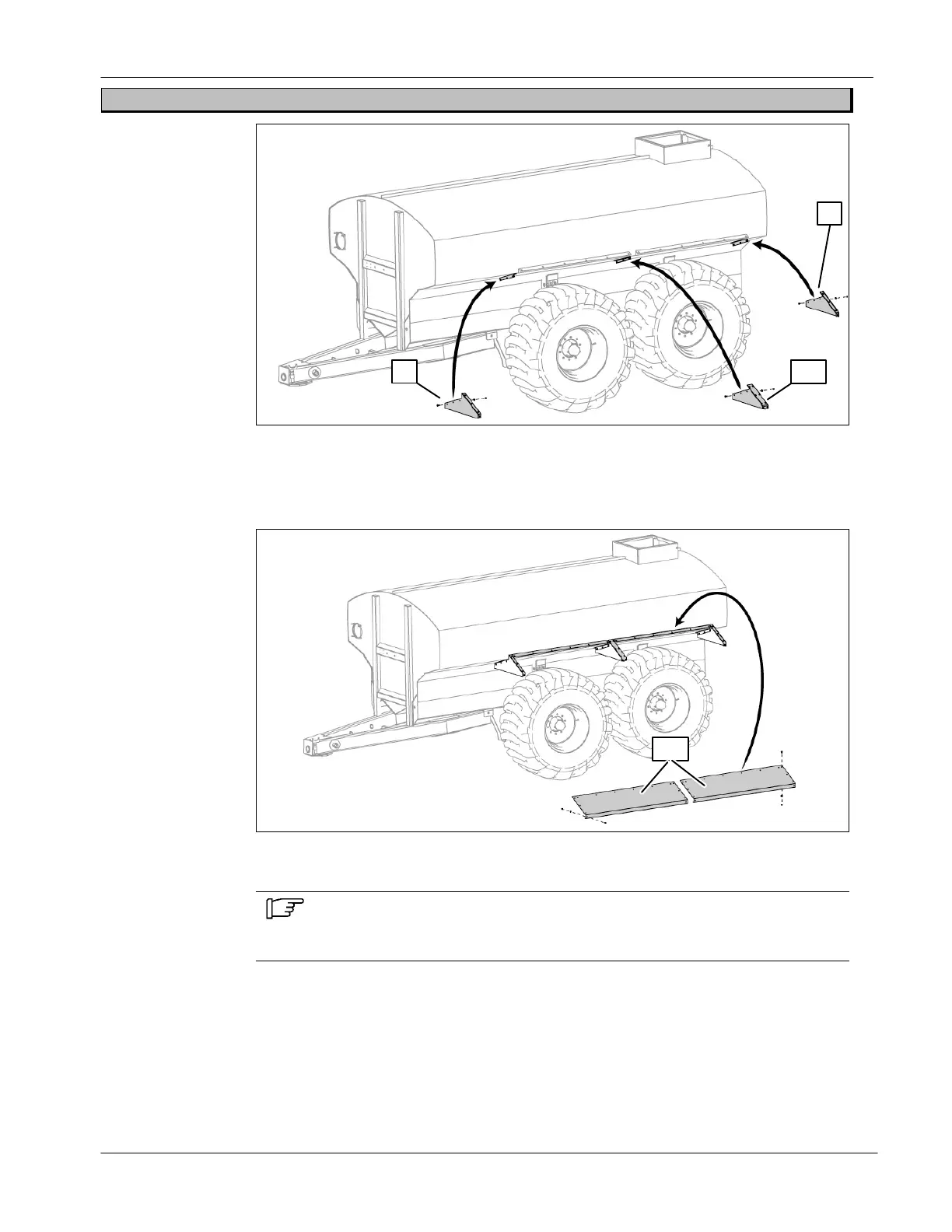

● Install the fender supports (1) on the brackets welded on the spreader side
using carriage bolts, flat washers and locknuts;
● Tighten all nuts;
2*
* Additional supports / sections may be required.
Note!
Apply silicone on the brackets and on the supports before installing the
fender sections in order to avoid rattling noise.
Install fender sections (2) using carriage bolts, flat washers and locknuts. Follow
these steps:
● Install sections (2) on supports;
● Tighten all nuts;
● Repeat these steps to install the fender on the other side of the spreader;
● Let the silicone dry before moving the spreader.
