GEA EL48 - Tool Bar Assemblies

Handling and assembly
Tool bar assembly (optional)
2018-9015-001
09-2016
68 / 192
5.22 Tool bar assembly (optional)
5.22.1 Tool bar with 24'' hydraulic disc injectors
1
2
3
3

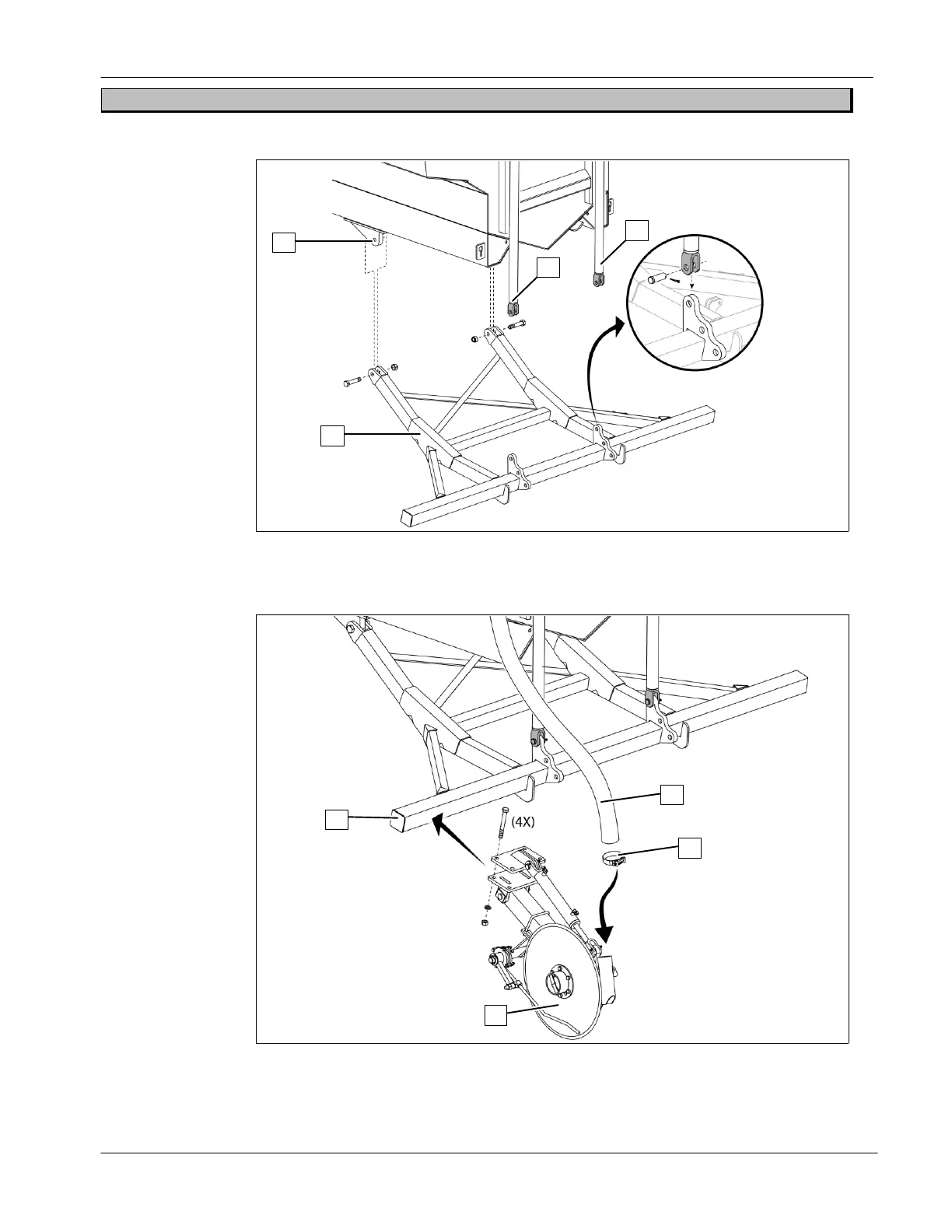

● Bolt the tool bar (1) to the spreader frame (2) using provided hardware;
● Fix the support rods (3) to the tool bar (1);
1
5
6
4
● Install the tools (4) on the tool bar (1);
● Install a hose (5) on each tool using a collar (6);
● Connect hydraulic hoses to the spreader.
