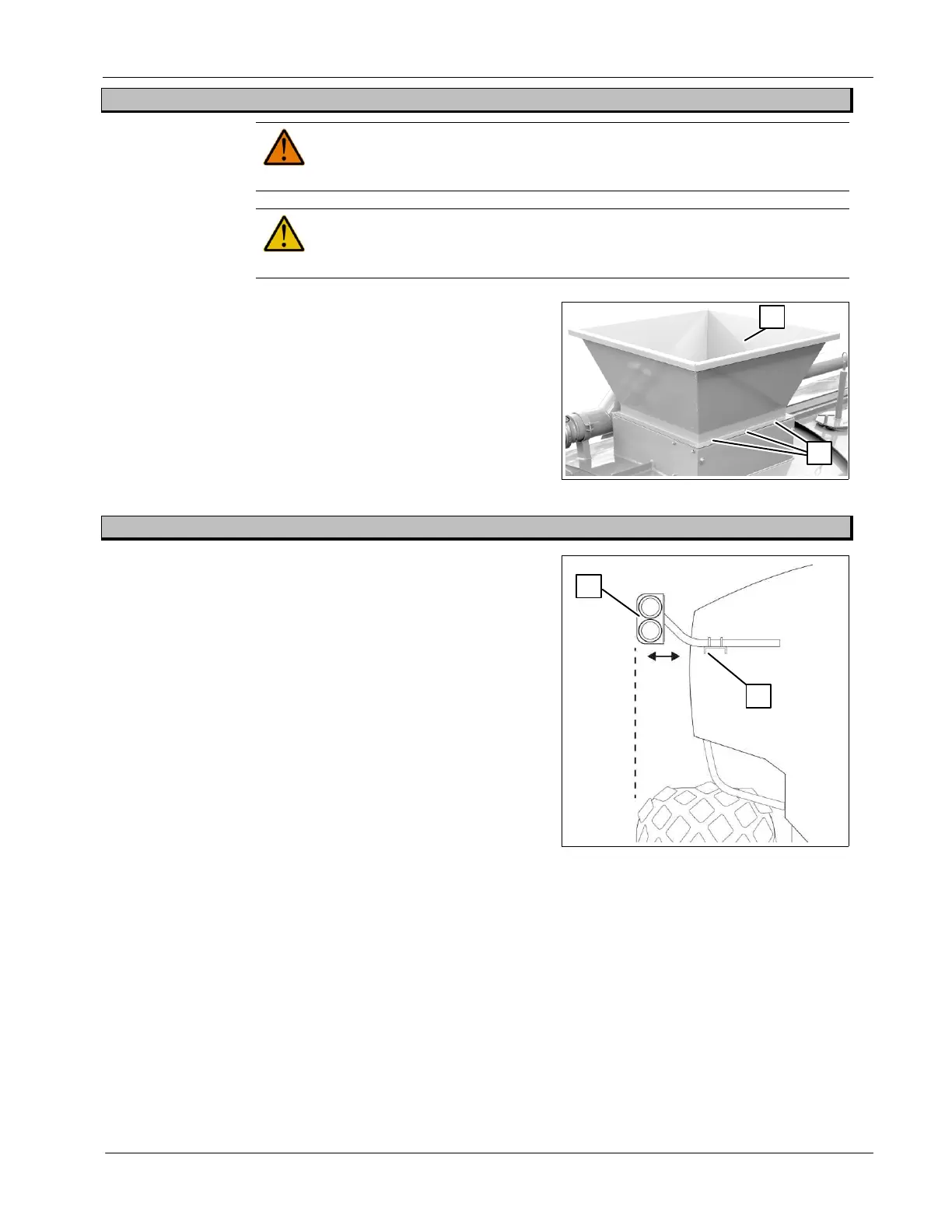

5.19 Hopper assembly (optional)
Warning!
Beware of potential falls: always walk on the nonslip band installed on
the product.
Attention!
To lift the hopper, use a lifting device with a minimum lifting capacity
of 125 lbs [50 kg].
● Lift the hopper (1) and position it on
the spreader fill opening;
● Install the hopper using 12 bolts (2)
and locknuts. Tighten.
1
2
5.20 Rear lights assembly (optional)
● Install the light support (1) on the
fixing plate (2);
● Align the light with the spreader
wheel as illustrated hereafter;
● Fix the light support (1) to the fixing
plate (2) using ''U'' bolts.
1
2
