Handling and assembly
Hydraulic braking system assembly
2018-9015-001
09-2016
45 / 192
5.6 Hydraulic braking system assembly

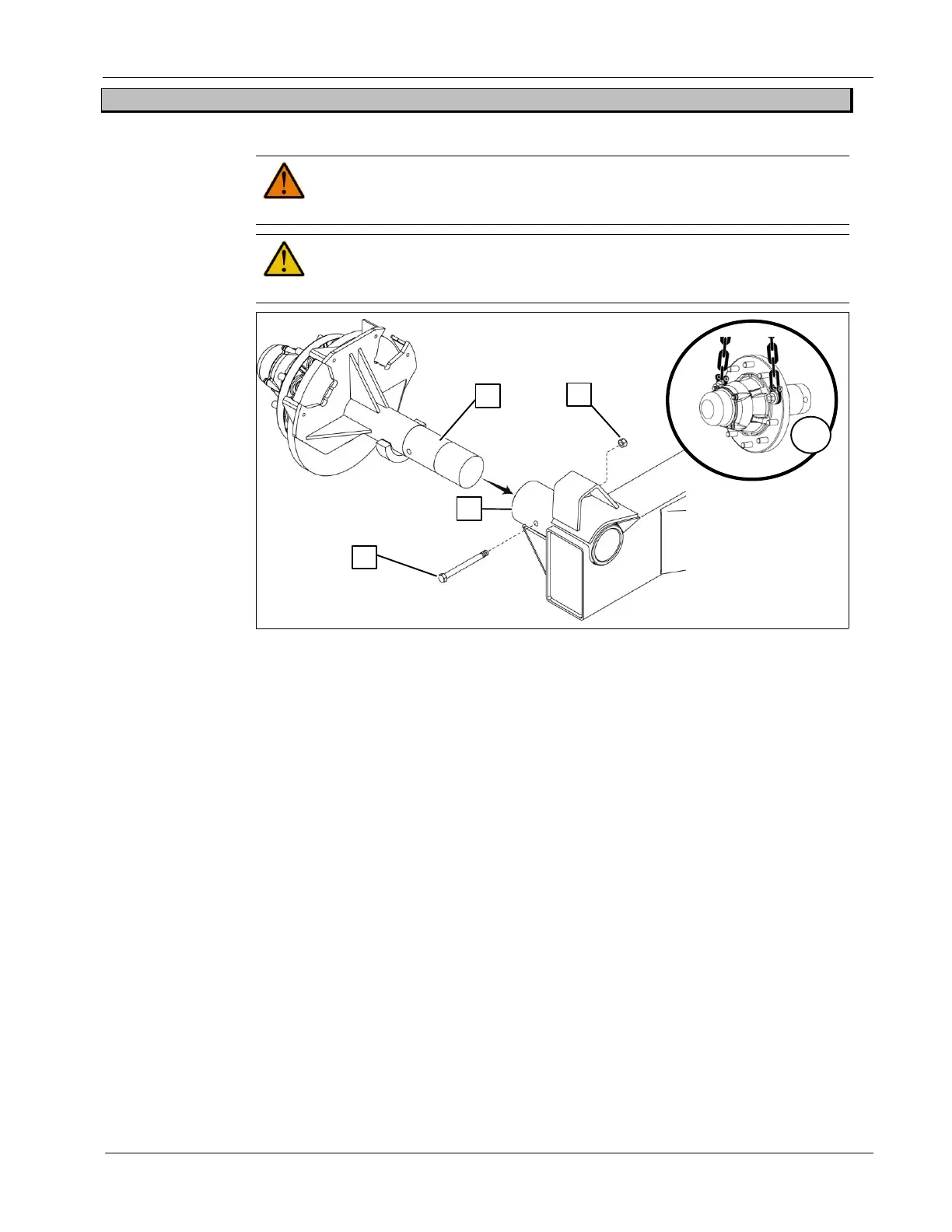

5.6.1 Hub assembly
Warning!
Do not stand under suspended loads. Falling loads can cause fatal
injuries!
Attention!
To lift wheel hub, use a lifting device with a minimum lifting capacity of
150 lbs [70 kg].
2
3
1
4
A
● Apply a thin layer of grade 2 PRECISION
TM
XL5 MOLY EP2 grease (or
equivalent) in the hub receptacle (1);
● Lift the hub. See Detail A;
● Insert the hub shaft (2) in the hub receptacle (1);
● Align the holes of the shaft (2) with the holes of the hub receptacle (1);
● Insert the bolt (3) in the holes. Place the bolt head toward the front of the
spreader;
● Secure with a locknut (4). Tighten;
● Repeat these steps for each hub.
