Handling and assembly
Hydraulic braking system assembly
2018-9015-001
09-2016
46 / 192

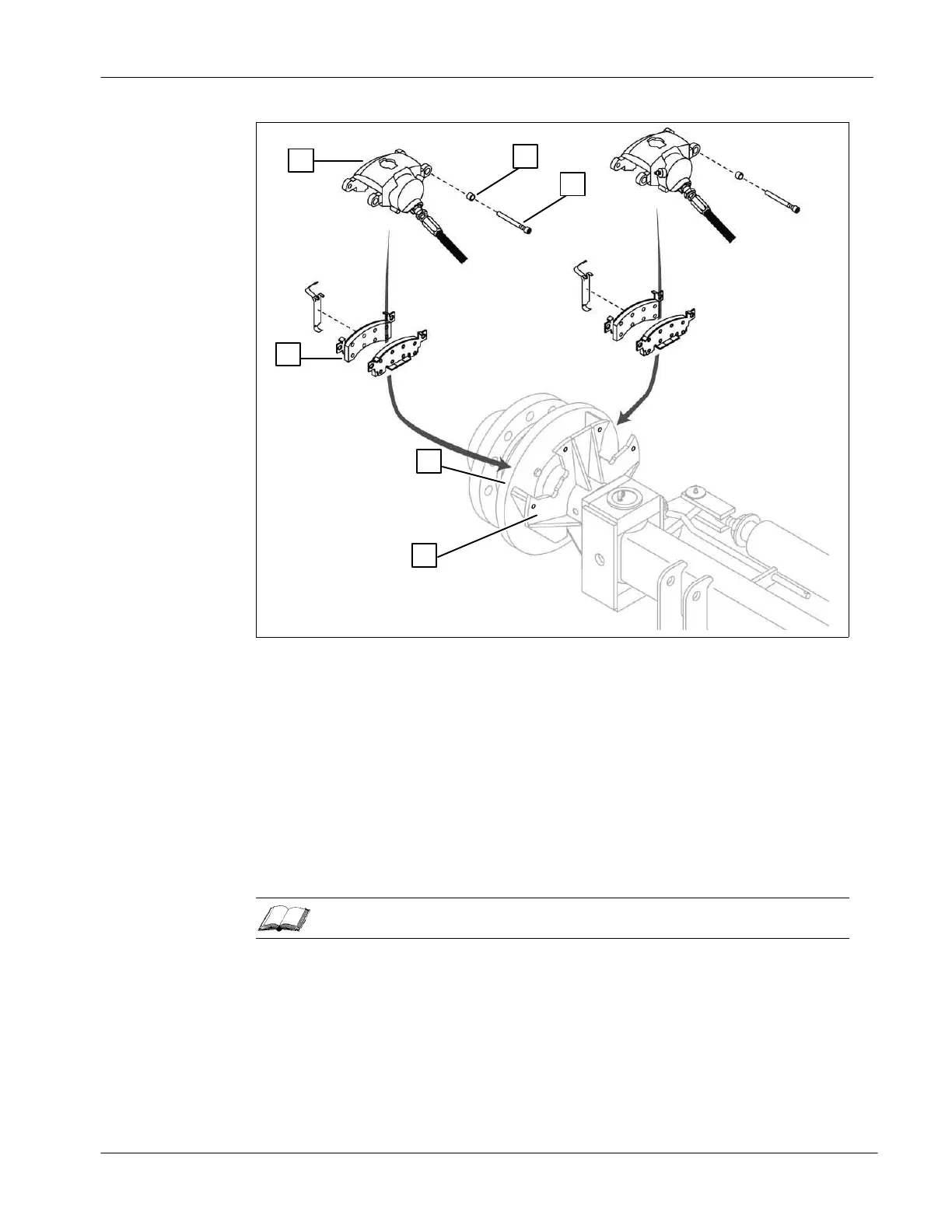

5.6.2 Brake parts assembly
3
1
5
2
6
4
● Place the brake pads (1) in the caliper (2) and position the assembly on the
brake disk (3);
● Align the holes of the caliper (2) with the holes of the support (4);
● Insert a sleeve (5) in each hole of the caliper (2);
● Insert a bolt (6) in each hole of the caliper (2). Tighten;
● Install two calipers per wheel;
● Repeat these steps for each wheel.
5.6.3 Hydraulic braking system calibration
Refer to section Maintenance - Calibrate the hydraulic braking system.
