GEA EL48 - Geometric Data (Metric)

Technical data
Geometric data (Metric)
2018-9015-001
09-2016
23 / 192

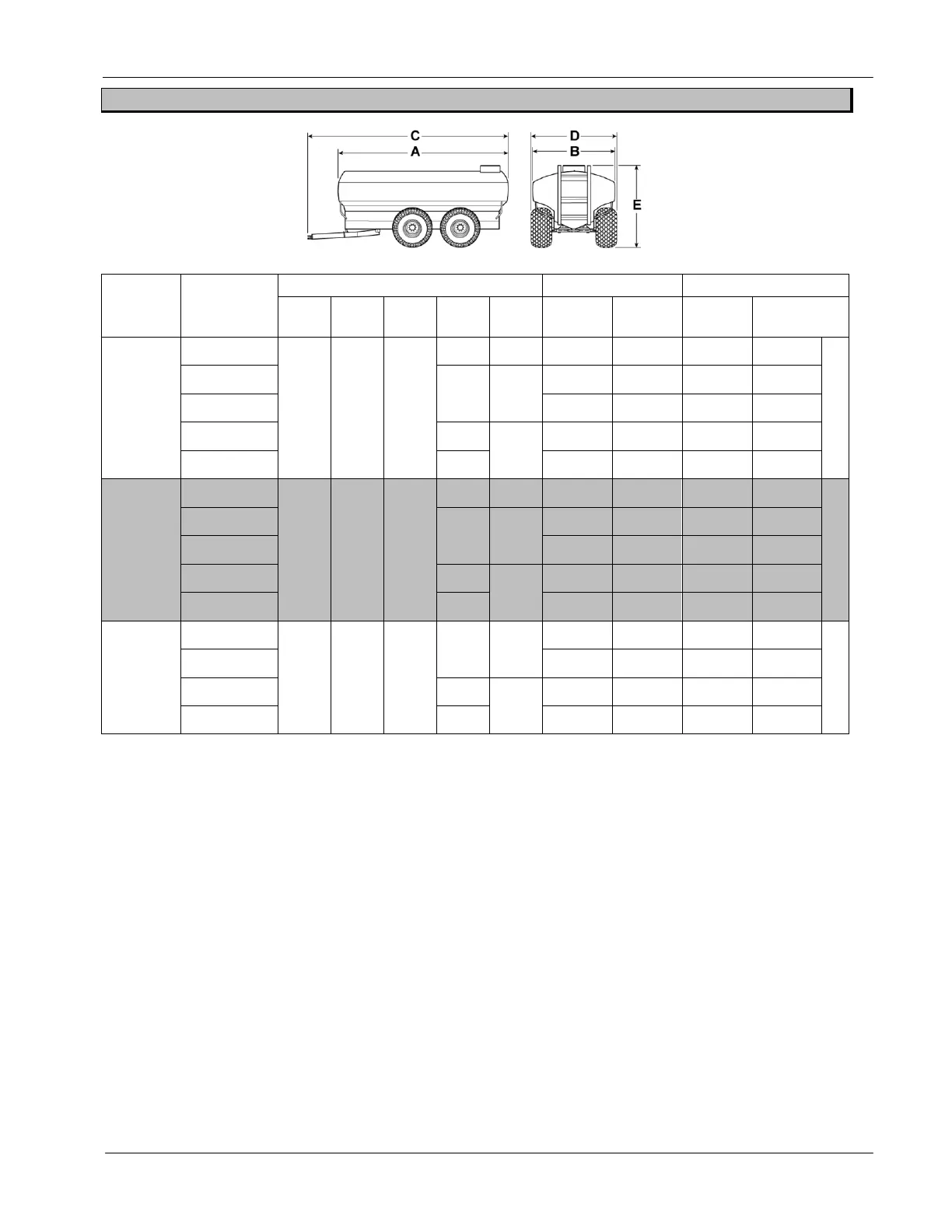

4.2 Geometric data (Metric)
EL48-4D
Model
Capacity
Size
Tire
Overall dimension (m)
1
Total weight (kg)
1
Load (kg)
1
A B C D E Net
Full
load
2
Axles
2
Draw bar
2
EL48-4D
3600
16350 l
23.1 X 26
5,49 2,18 7,32
2,87 3 5667 22017 10008 2002
Max 2500
28L X 26
3,12 3,02
6078 22428 10194 2039
725/65 X 26 6182 22532 10242 2048
850/50 X30.5 3,48
3,1
6368 22718 10326 2065
850/50 X 32 3,52 6434 22784 10356 2071
EL48-4D
4000
18200 l
23.1 X 26
6,1 2,18 7,92
2,87 3 5944 24144 11037 2069
Max 3500
28L X 26
3,12 3,02
6355 24555 11225 2105
725/65 X 26 6460 24660 11273 2114
850/50 X30.5 3,48
3,1
6645 24845 11358 2130
850/50 X 32 3,52 6711 24911 11388 2135
EL48-4D
4400
20000 l
28L X 26
6,71 2,18 8,53
3,12 3,02
6632 26632 12236 2159
Max 3500
725/65 X 26 6737 26737 12284 2168
850/50 X30.5 3,48
3,1
6922 26922 12370 2183
850/50 X 32 3,52 6988 26988 12400 2188
1
Data given for a spreader including wheels, without options nor tool bar.
2
Data given for a spreader filled with water.
