Handling and assembly
Self-loading assembly (optional)
2018-9015-001
09-2016
57 / 192

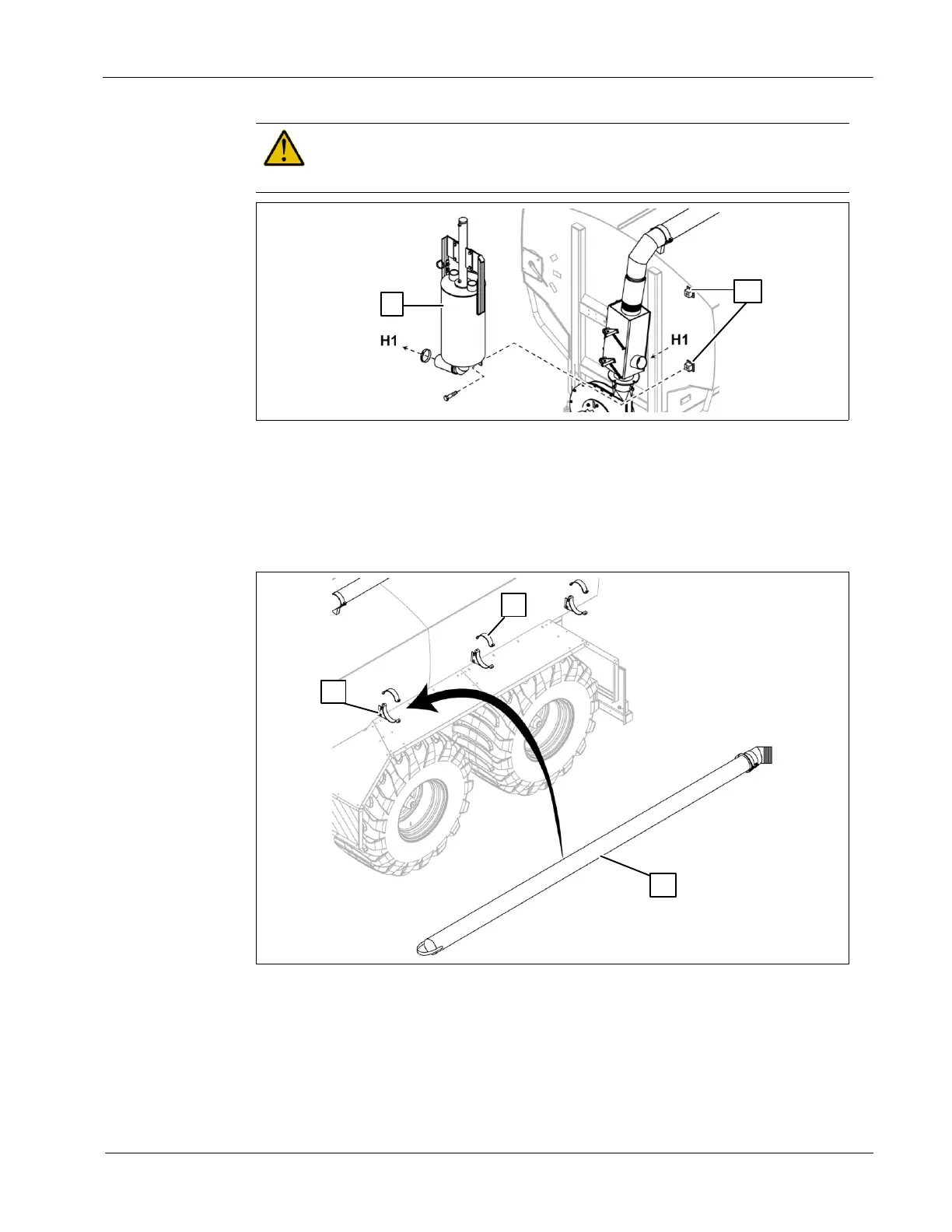

5.13.2 Primer pump installation (if applicable)
Attention!
To lift the primer pump, use a lifting device with a minimum lifting
capacity of 250 lbs [110 kg].
1
2
● Using provided hardware, bolt the primer pump (1) on the supports (2).
Tighten bolts;
● Connect the hose H1 to the valve H1 and secure it with provided collar.
5.13.3 Hose support installation
2
1
3
● Install the supports (1) on the welded brackets using two bolts for each
support;
● Install the aluminum pipe (2) on the supports (1). Install the suction pipe on
the supports located on the other side of the spreader;
● Install the half collars (3) over the pipe supports (1) to maintain the pipes
during transport. Use two nylon spacers and two bolts to tighten the collars.
Hold the pipes firmly without compressing them.
