Handling and assembly
Self-loading assembly (optional)
2018-9015-001
09-2016
56 / 192

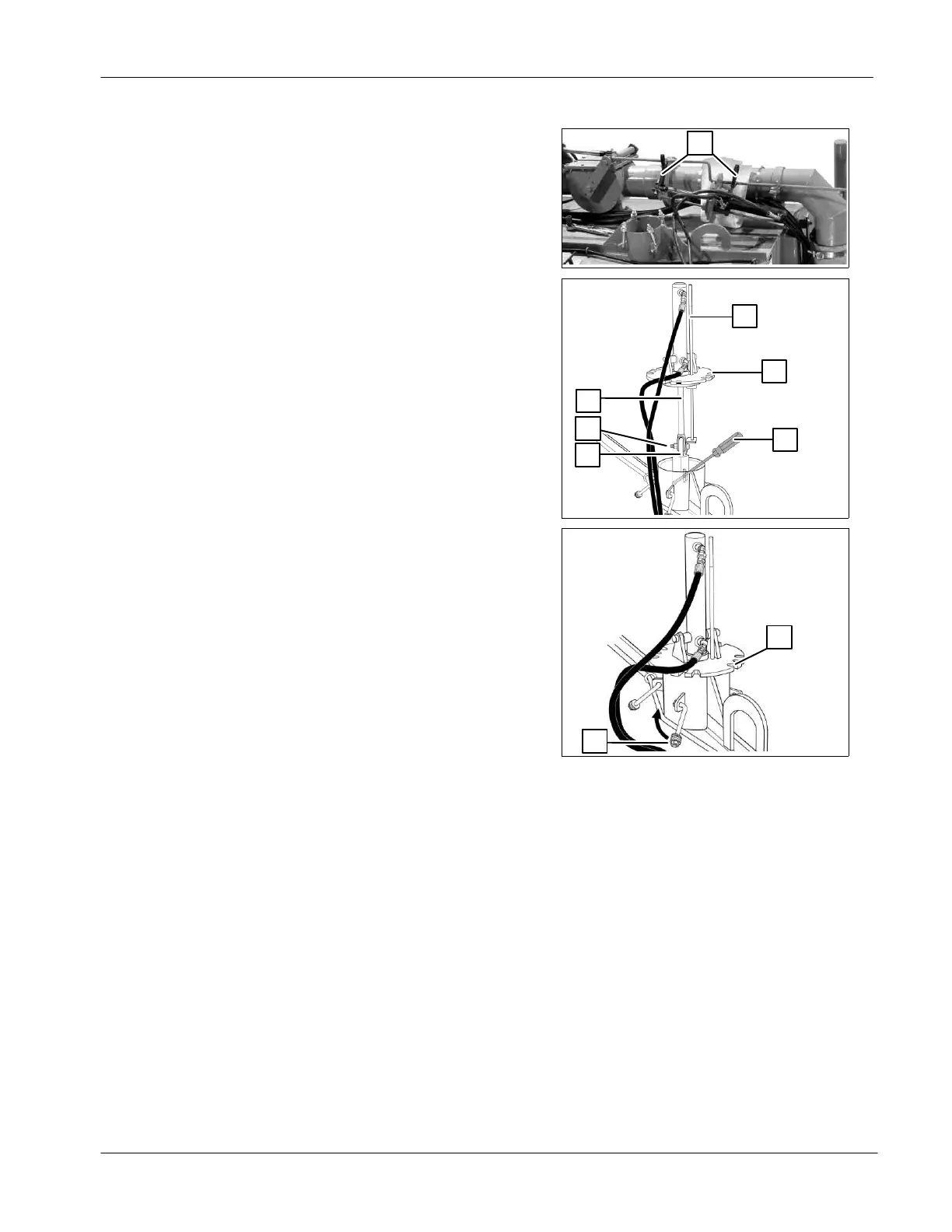

5.13.1 Cylinder assembly
● Cut tie wraps (1) to remove the inner
valve cylinder (2) from the spreader;
1
● Raise the extension of the inner
valve cylinder (2) located inside the
tank. Insert a screwdriver (3) through
the extension bracket to maintain it
at its maximum height;
● Fix the cylinder rod (4) to the
extension (5) using a bolt (6). Make
sure the indicator rod (7) points
toward the front of the spreader;
● Remove the screwdriver (3);
3
6
2
7
4
5
● Position the retaining bolts (8) in the
disc notches (9) to maintain the
cylinder in the receptacle. Tighten all
nuts.
9
8
