Handling and assembly
Mudguards assembly (optional)
2018-9015-001
09-2016
60 / 192
*
*
3
4
5
6
7
8
9
* Additional supports / sections may be required.
Note!
Apply silicone on the brackets, on the supports and on mudguard
sections to avoid rattling noise caused by vibration.

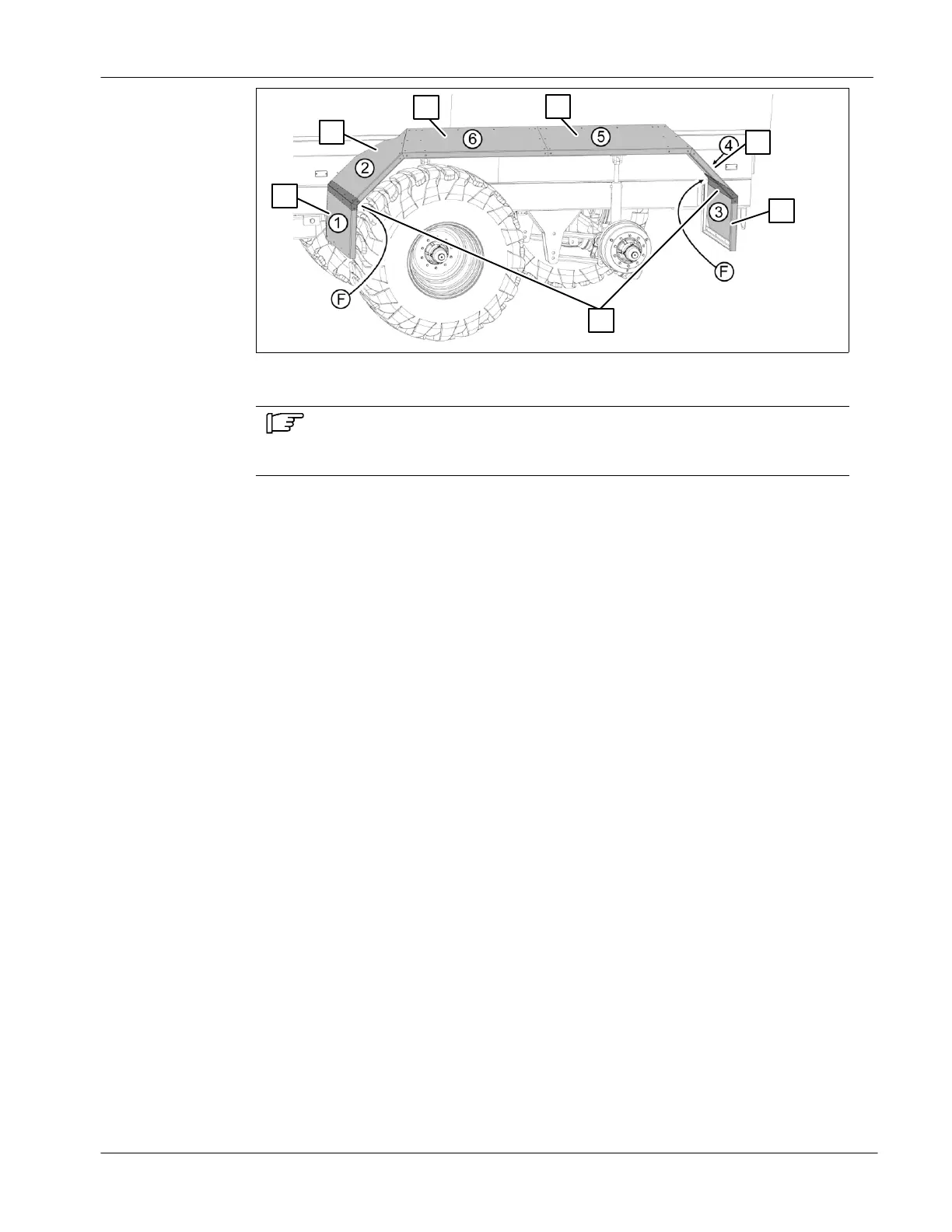

Install mudguard sections using carriage bolts, flat washers and locknuts.
Follow these steps:
● Install sections (3) and (4) on supports;
● Fix the bottom part of section (3) on support;
● Bolt the bracket (9) on upper part of section (3);
● Install section (4) between sections (3) and (5);
● Fix the bottom part of section (8) on support;
● Bolt the bracket (9) on upper part of section (8);
● Install section (7) between sections (6) and (8);
● Tighten all nuts;
● Let the silicone dry before moving the spreader;
● Repeat these steps to install the mudguards on the other side of the
spreader.
