Operating
Moving the spreader
2018-9015-001
09-2016
95 / 192

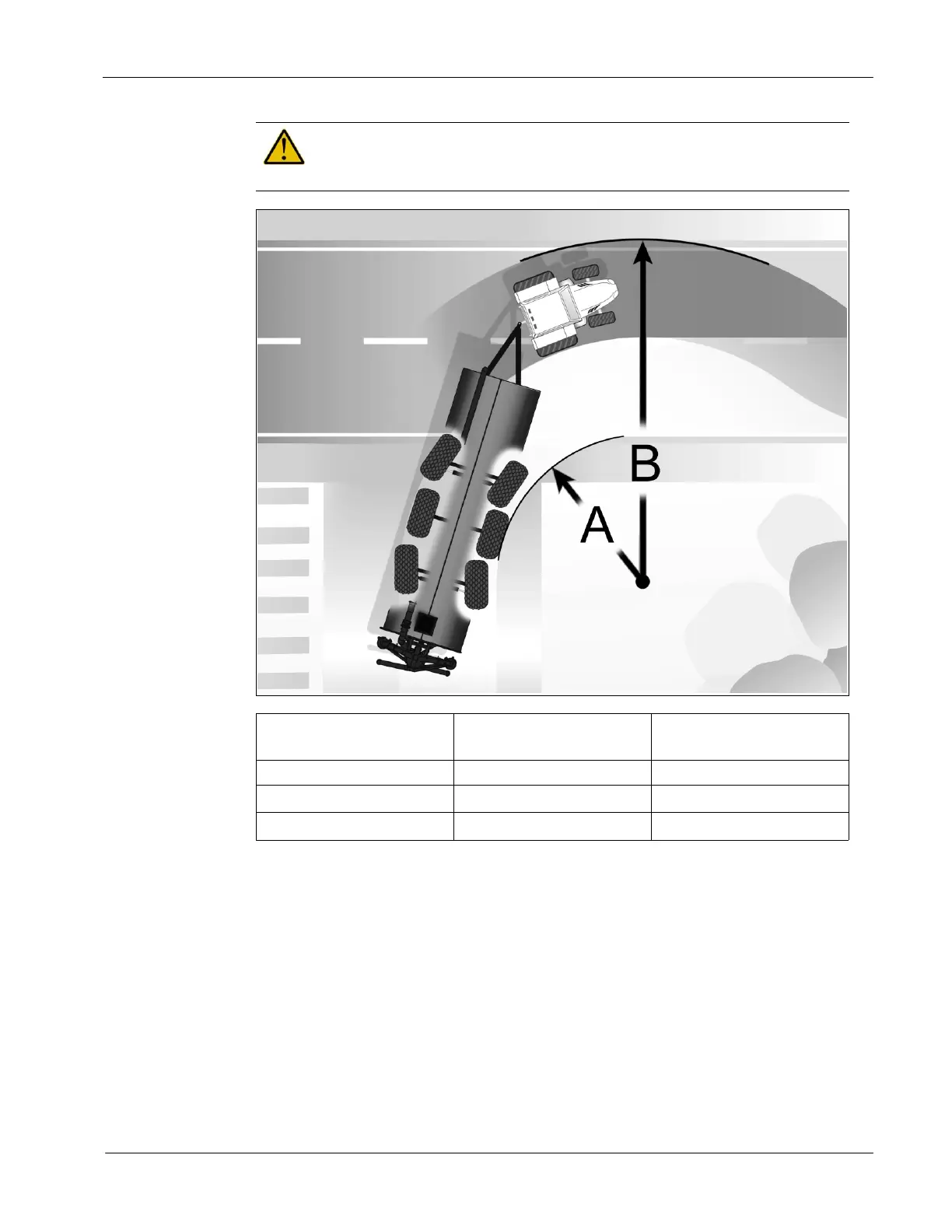

7.6.1 Turning radius
Attention!
Follow the turning radius to prevent premature wear of the tires and
damages to wheel components.
Spreader model
Inside radius
A
Outside radius
B
EL48-4D 15' (4,58 m) 30' (9,16 m)
EL48-6D 15' (4,58 m) 35' (10,67 m)
EL48-8D 28' (8,53 m) 47' (14,33 m)
