10.5.3 Removing the proximity switch – actuator without T.VIS

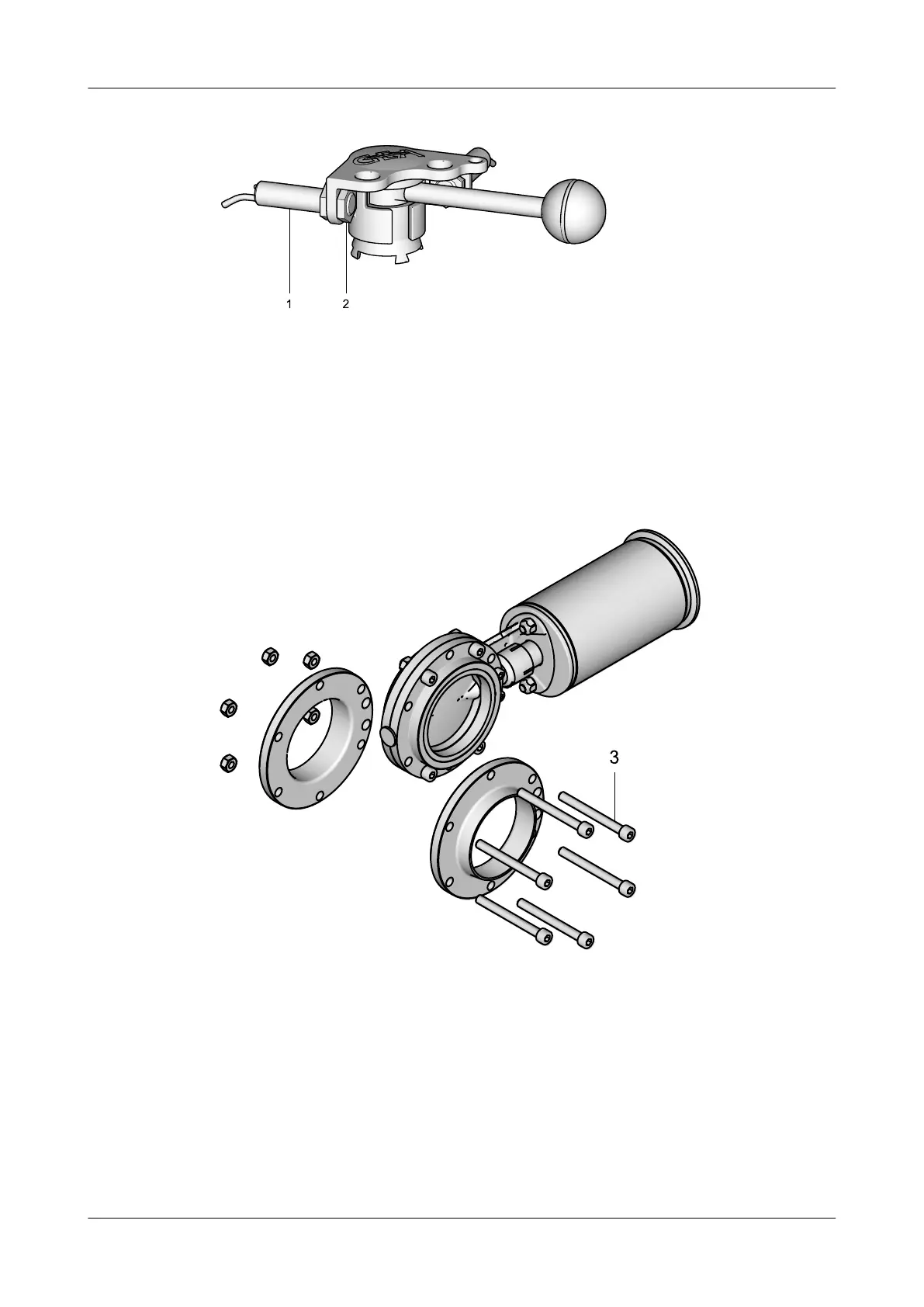

Fig.20
Carry out the following steps:
1.
Unscrew the hexagon nuts (2) on the proximity switches (1).
2.
Remove the proximity switches (1).
®
Done
10.5.4 Intermediate flange design type VV – removing the valve
Fig.21
Carry out the following steps:
1.
Undo the screw connections (3).
2.
Remove the valve from the pipe.
®
Done
10.5.5 Disconnecting the actuator
Maintenance
Disassembling the Valve
