GEA VP8002 - Mounting Material and Installation Steps

assembly and installation
Installing the control unit and power supply unit
7160-9001-560
01. December 2020
18 / 74

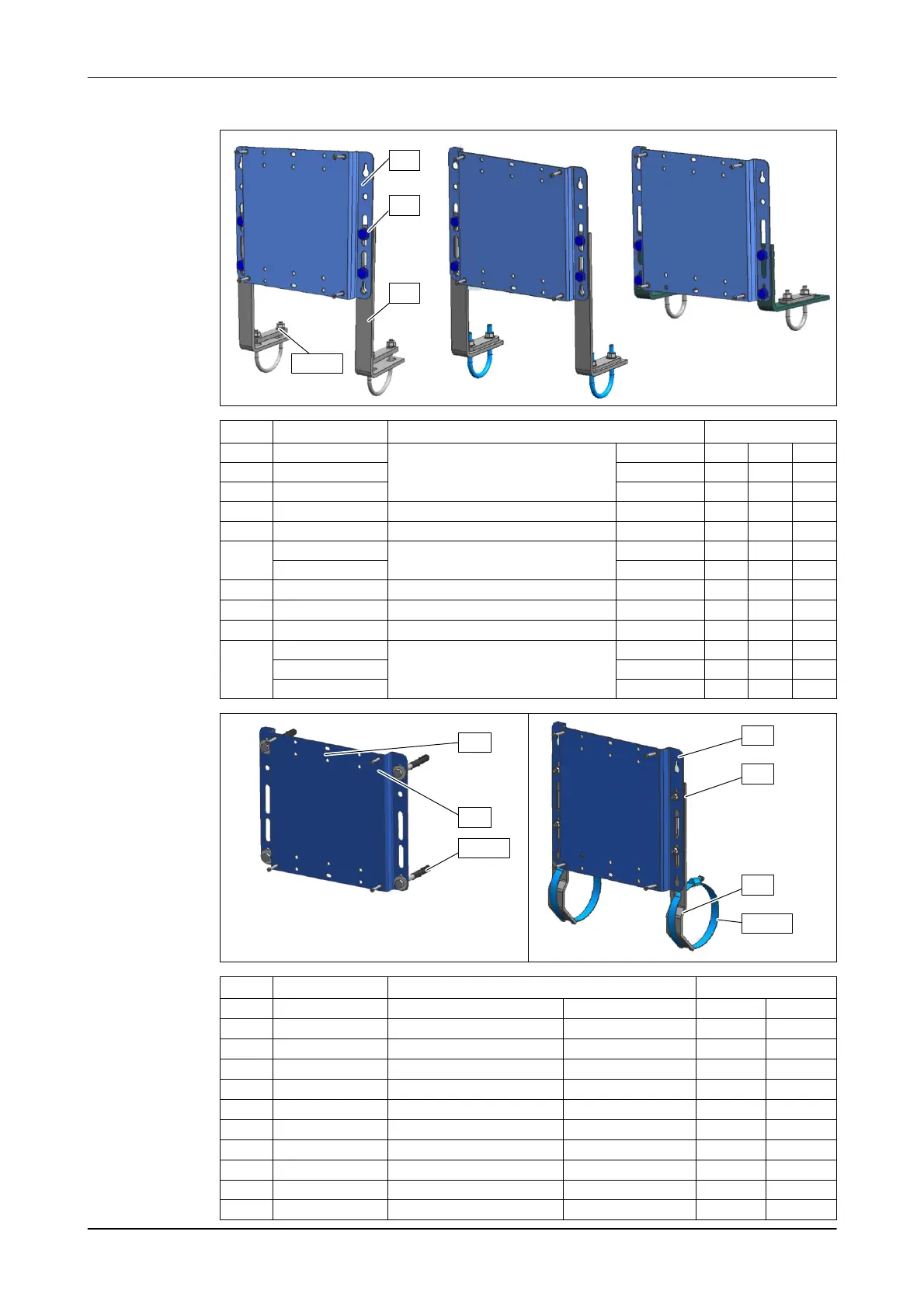

Mounting material
7160-5979-040 7160-5979-050
10
40-70
20
30
7160-5979-060
Item Part -No. Description Quantity
7160-5979-040
Set of accessories
Ø2” -340
7160-5979-050 Ø1,5” -350
7160-5979-060 Ø1” -360
0010 7159-2853-020 retaining plate 1 1 1
0020 0019-2227-300 Cheese head screw 4 4 4
0030
7019-2209-050
Angle bracket
2 2 -
7019-2209-030 15 - - 2
0040 0019-6933-300 Hexagon bolt M10x20 4 4 4
0050 0013-0279-300 Hexagon Nut M10 4 4 4
0060 0026-1248-300 Washer 4 4 4
0070
7049-3270-000
U-bolt, complete
2” 2 - -
7027-3270-010 Ø1,5” M8 - 2 -
7027-3270-020 Ø1” M8 - - 2
7160-2187-010
10
30,40
20
7160-5979-070
10
40-70
20
30
Item Part -No. Description Quantity
7160-2187-010 Mount, compl. Wall installation x
7160-5979-070 Set of accessories Ø 71-114 mm x
0010 7159-2853-020 retaining plate 276x230x20x2 1 1
0020 0019-2227-300 Cheese head screw M4x35 4 4
0030 0019-5311-050 Wood screw Ø8x70 4 -
0030 7160-5209-110 Angle bracket - 2
0040 0026-2304-890 Rawlplug Ø10 4 -
0040 0019-5550-300 Bolt M6x16 - 4
0050 0013-0276-300 Hexagon Nut M16 - 4
0060 0026-1382-300 Washer 6,4 - 4
0070 0018-3804-300 Hose Clamp Ø 71-114 mm - 2
