Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
11

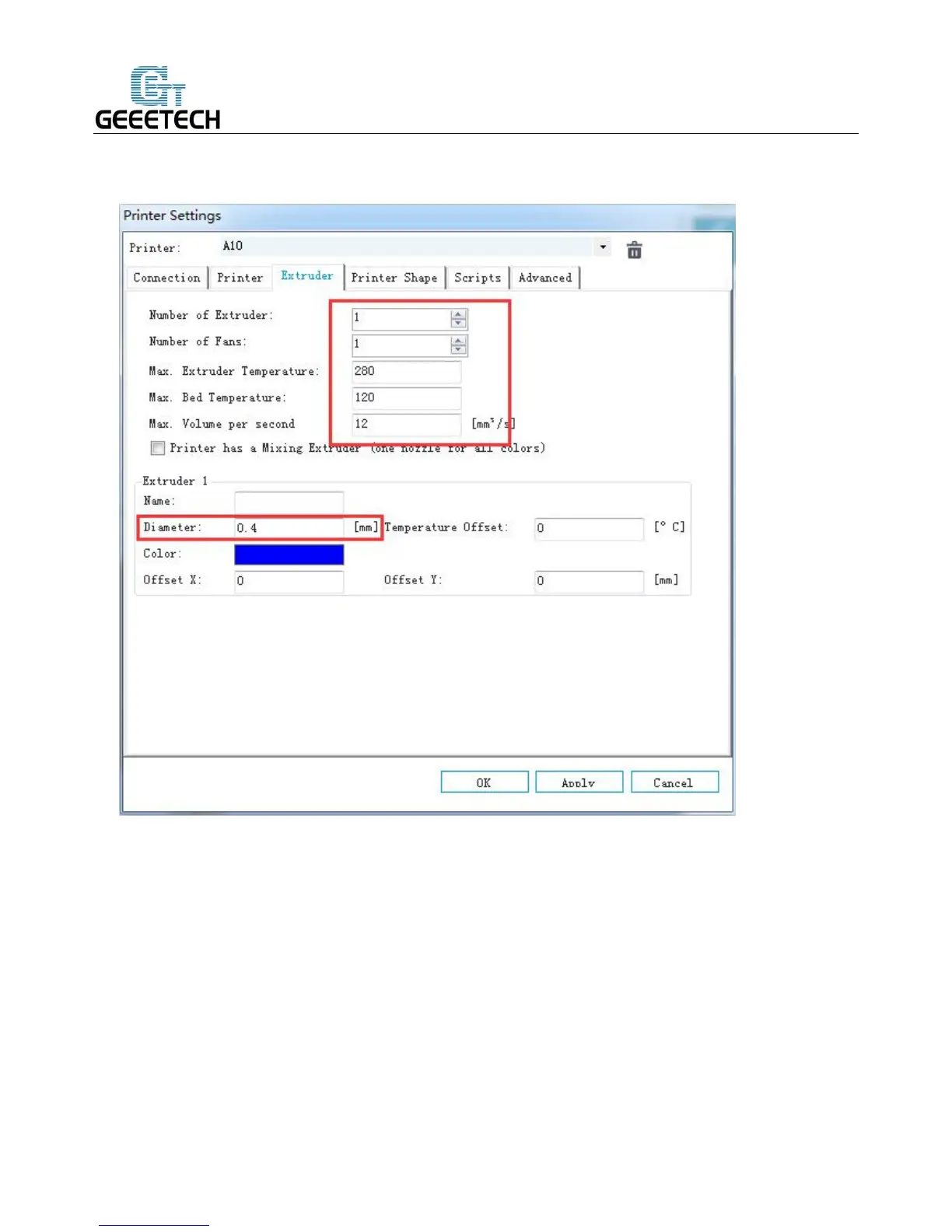

Number of the extruder: 1
Diameter of the extruder: 0.4mm
4.5 Printer shape
The
“
Printer Shape
”
tab defines your printer shape, or to be more exact the shape of your build area. The
host will use this to limit your moves and to check, if your models fit onto the print bed. You can also define
the position of the x and y end stop.
Recommended settings:
Printer type: Classical printer
Home X
：
Max Home Y
：
Max Home Z
：
Min

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
