Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
50
http://www.geeetech.com/forum/viewtopic.php?f=21&p=27952#p27952

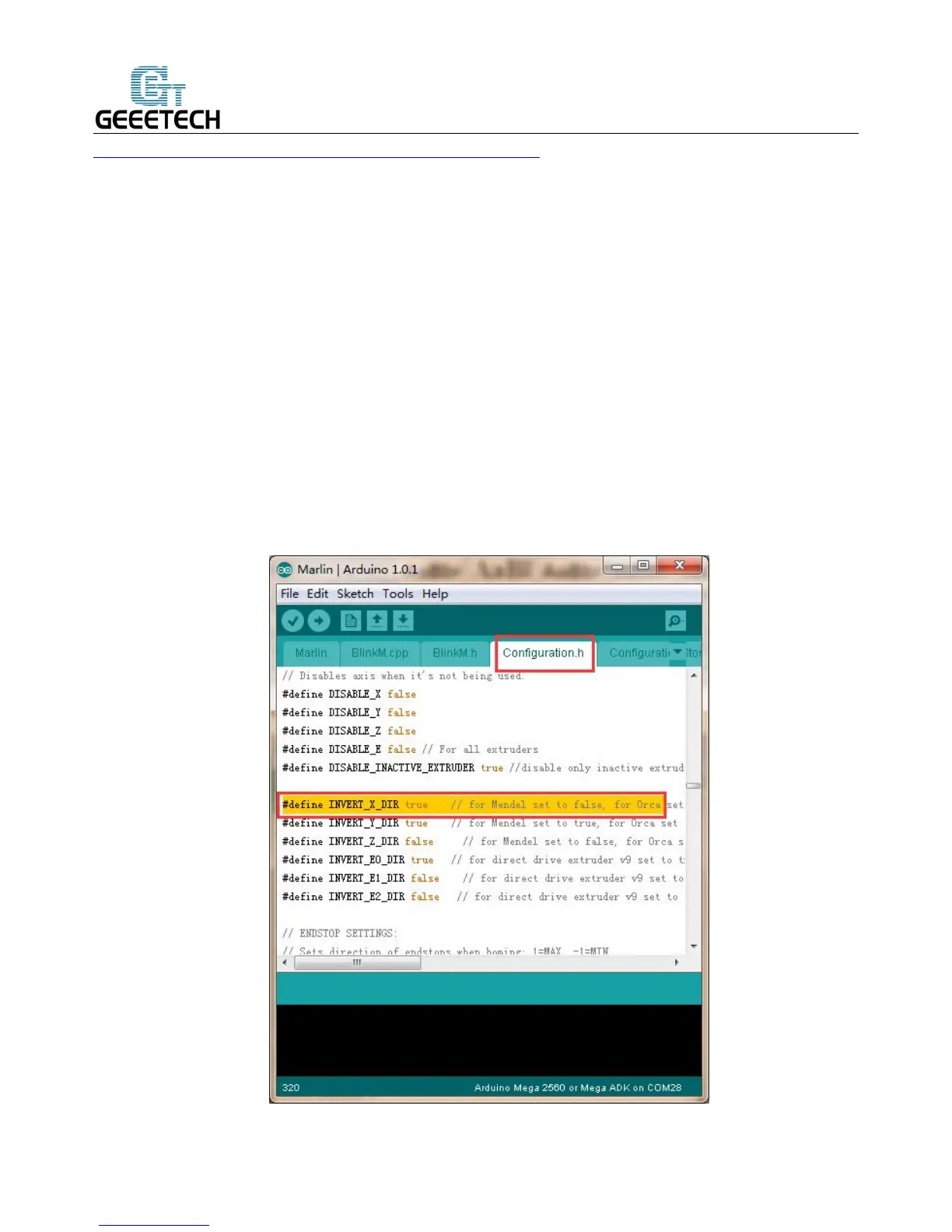

9.2 Change the motor direction
In the configuration.h tab of firmware, find the following codes. Change the true of corresponding axis into
false or false into true, and save the firmware and upload it into the printer. (Because you don’t know the
firmware which has been uploaded by the control board is true or false, it may be necessary to upload both
of the two parameters.)
#define INVERT_X_DIR true
#define INVERT_Y_DIR false
#define INVERT_Z_DIR true
#define INVERT_E0_DIR false
For detailed method, please refer to:

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
