Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
37
Note: The three setting steps should all be saved.
7.4 Other parameters
Except for above settings, parameters like speed are also important to the printing effect, which requires
your long time using experience of 3D printing. Here we give you a reference setting, please download the
attachment config.ini. You can import it into slic3r according to the following steps.

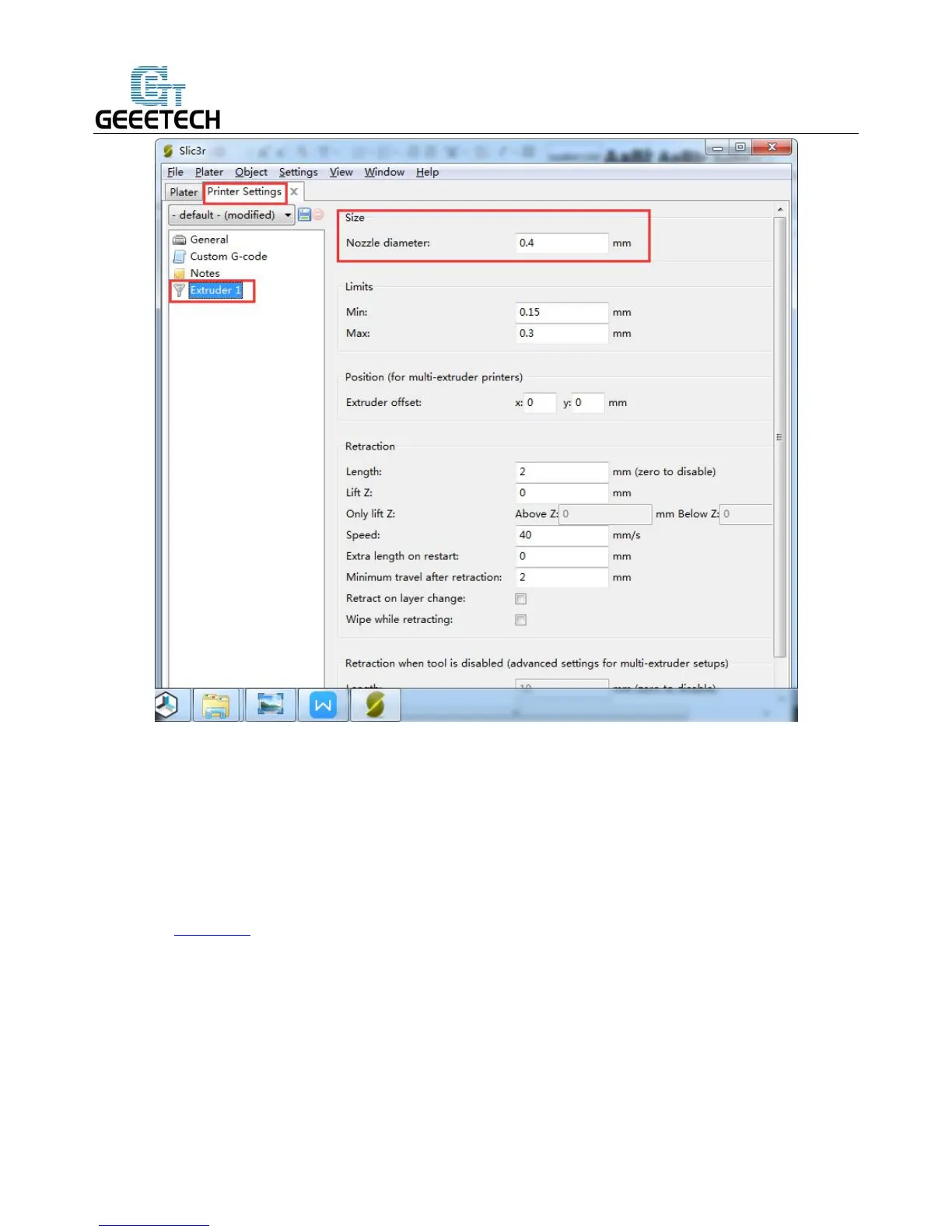

Note: The configuration uses 1.75mm PLA filament and 0.4mm nozzle diameter, and it slices with slic3r
engine which is built-in in Repetier host 2.1.2.
Open slic3r>File>Load Config
：

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
