Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
5
4. Set up Repetier Host
The next step should be, to configure your printer so you can connect your computer with the host. Open
Repetier Host. Choose the language as English.

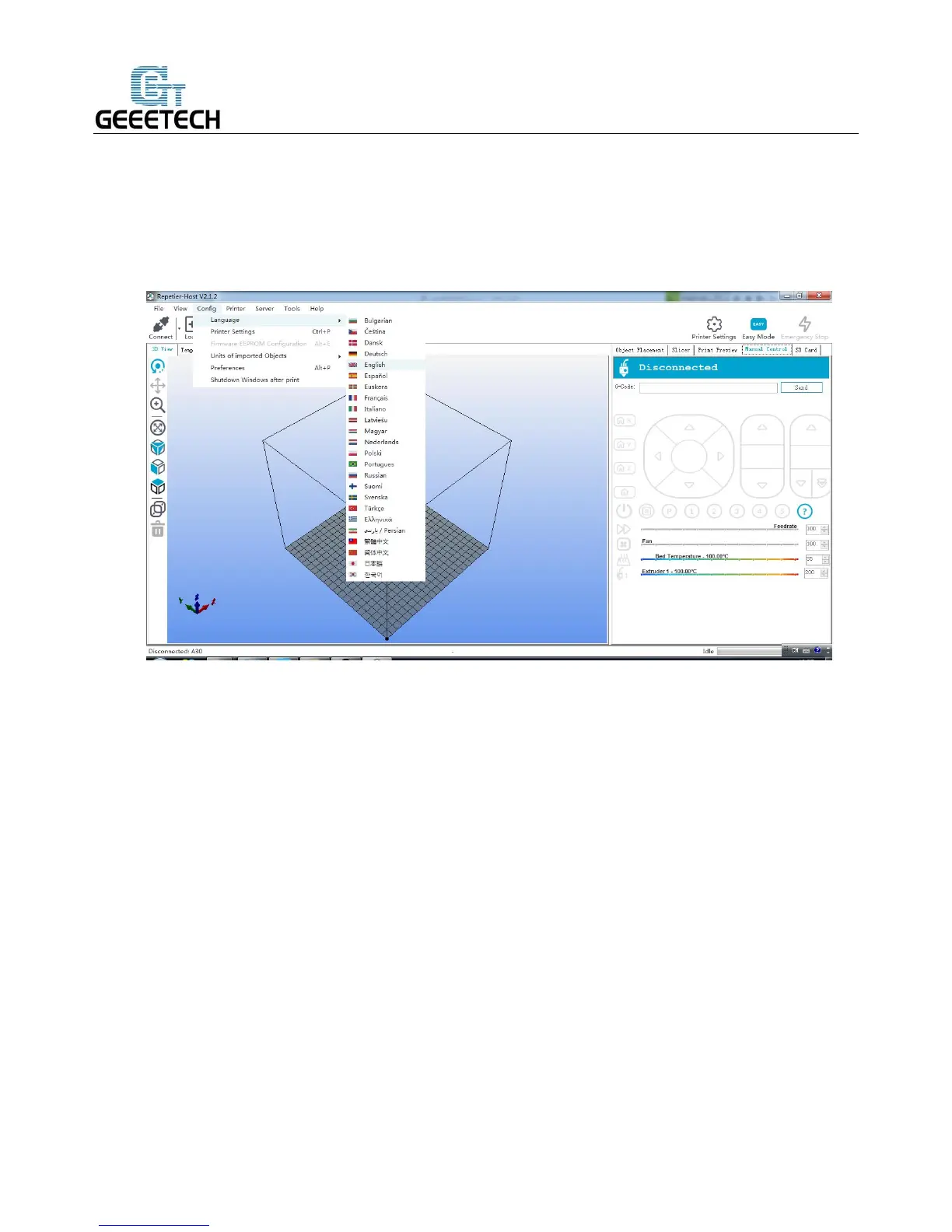

When you start Repetier Host for the first time, you need to set up parameters for A10. Click the Printer
Settings on the top right corner, you will be presented with the following window.

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
