Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
22

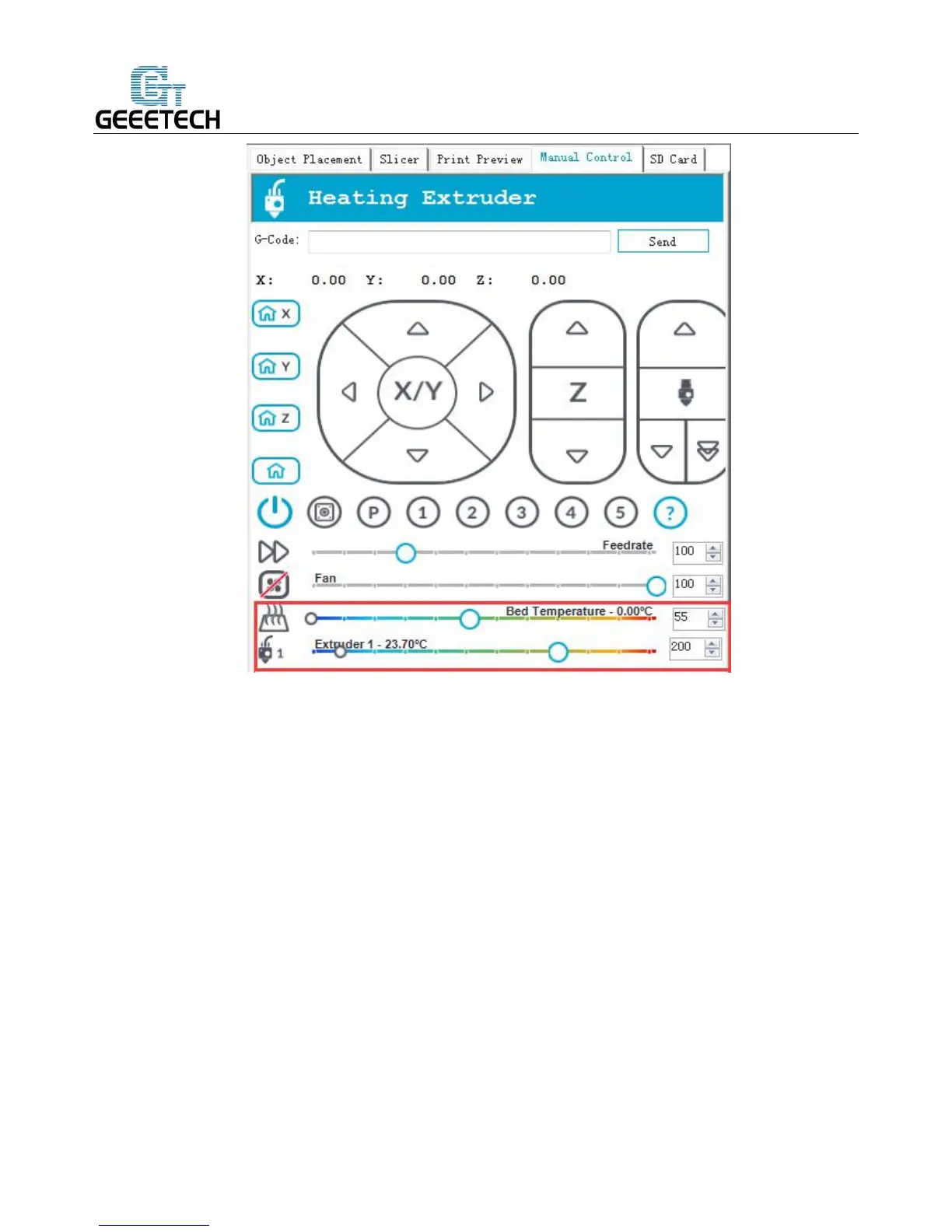

Meanwhile you can see the temperature at the bottom status bar of Repetier Host.
5.1.3 Extruder test
Now we are to test if the extruder could extruder filamnet smoothly. Since the printer was homed just now,
the nozzle is close to the building platform. To avoid jamming the nozzle, we suggest moving the Z axis
upward.
Choose the moving distance and click the Z moving button to raise Z axis, as shown in the following
picture.

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
