Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
49

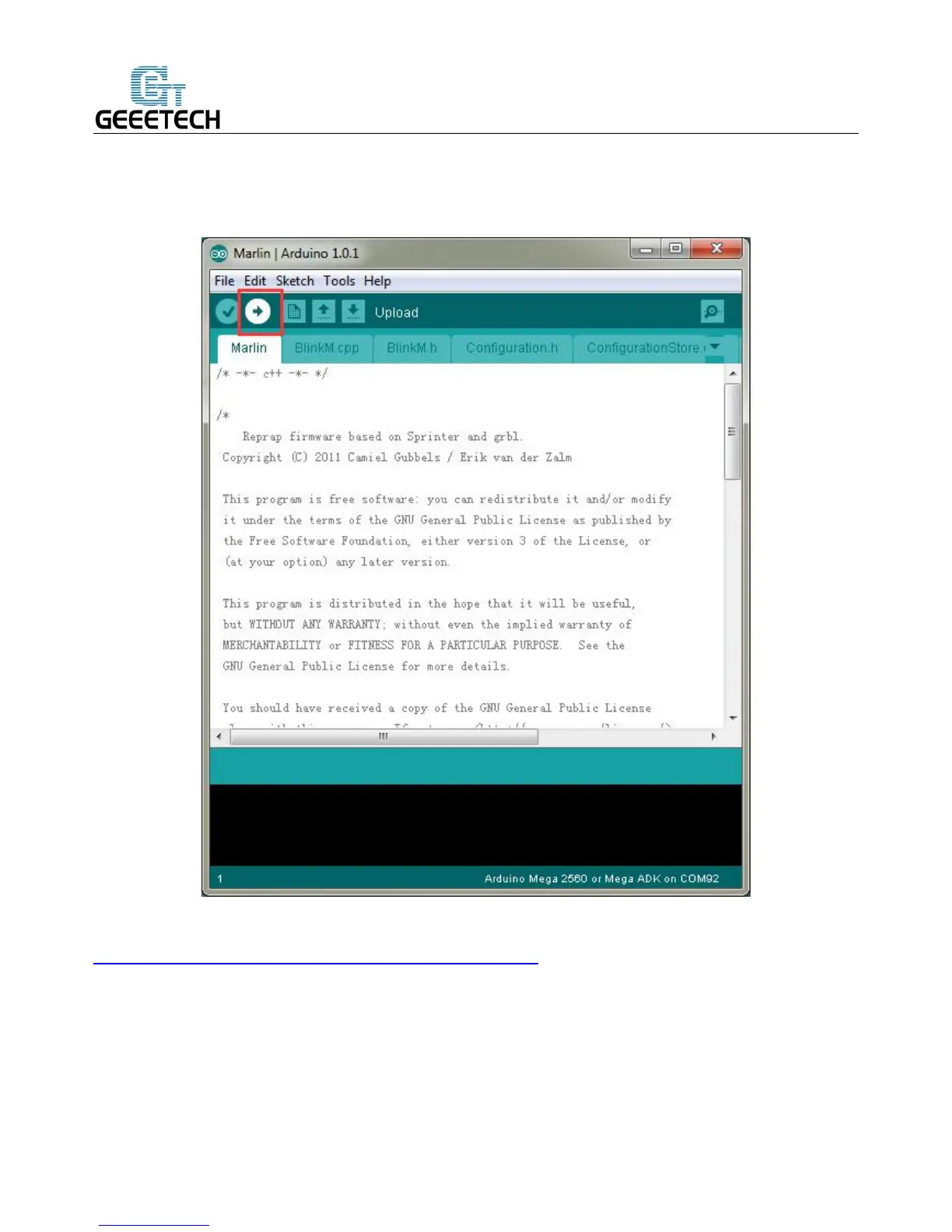

and computer with USB cable, then open arduino1.0.1 software to upload the firmware. Choose
corresponding control board and COM port, and click upload button to upload the firmware.
For detailed uploading process, please refer to:
http://www.geeetech.com/forum/viewtopic.php?f=13&t=17181
9.1.2 Upload the firmware in Mac OS
The way of installing driver and uploading firmware in Mac OS is similar with that in Win 7 OS. For
detailed method please refer to this link:

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
