Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
7
There are six tags in Printer settings in total. Detailed configurations of the 4 relevant tags are as follow.

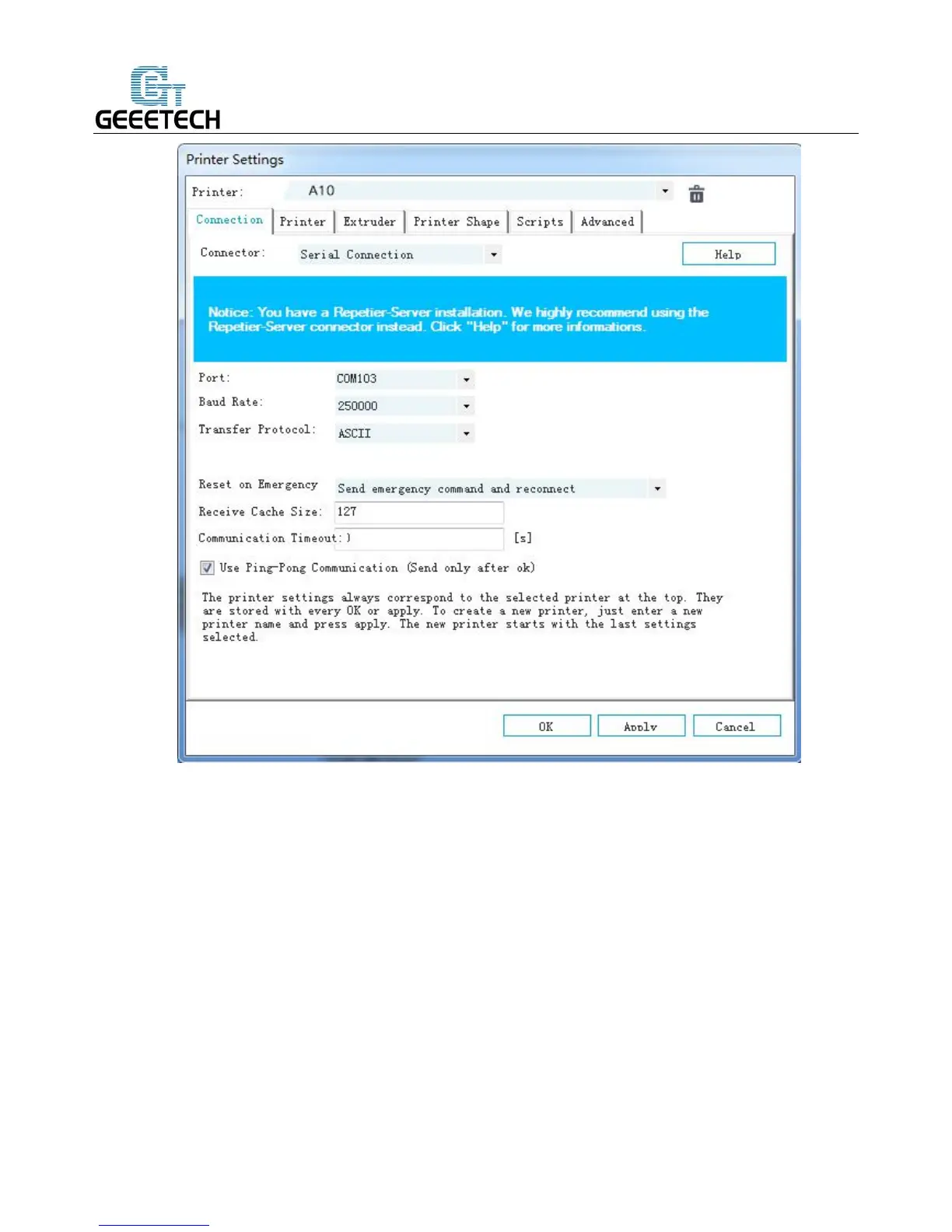

4.2 Connection
In this first tab, we will introduce how to connect your printer with the software.
Port
：
Get the printer connected to the port of computer, which is corresponding to the USB Serial Port in
the Device manager.
Baud Rate: Corresponding to the Baud Rate in firmware. Generally it is set as 256000.
For other parameters please leave them as default, and click Apply.

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
