Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
18
If the moving direction is reverse, you can alter the direction in the firmware. Please refer to FAQ.

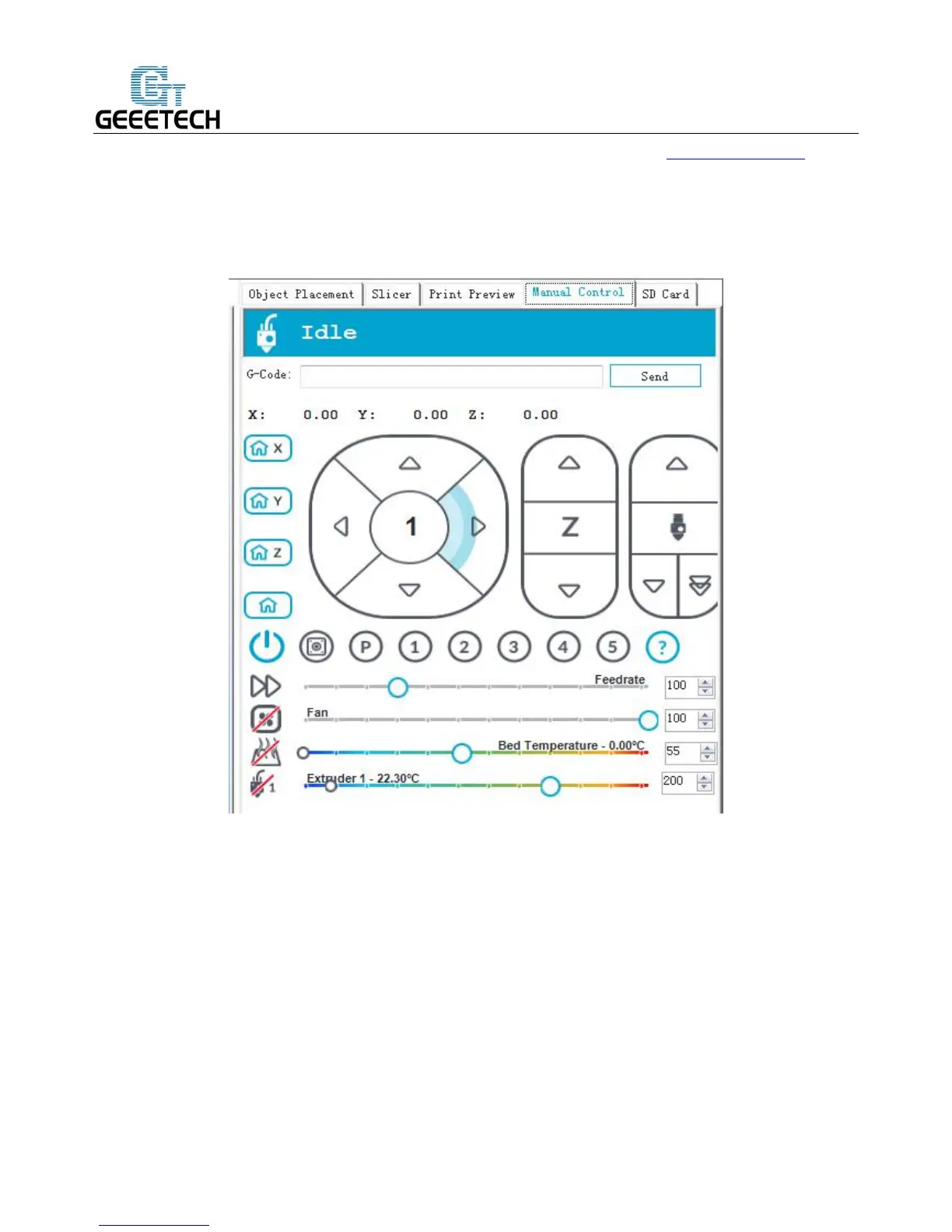

Tips: In manual control, the high-light part of the panel stands for the current selected direction, and it
moves 1mm every click. You can also choose to move 0.1mm, 10mm or 50mm every click, but here we
choose 1mm in order to avoid possible incorrect operation.

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
