Geeetech A10 User Manual

SHENZHEN GETECH TECHNOLOGY CO,.LTD
29

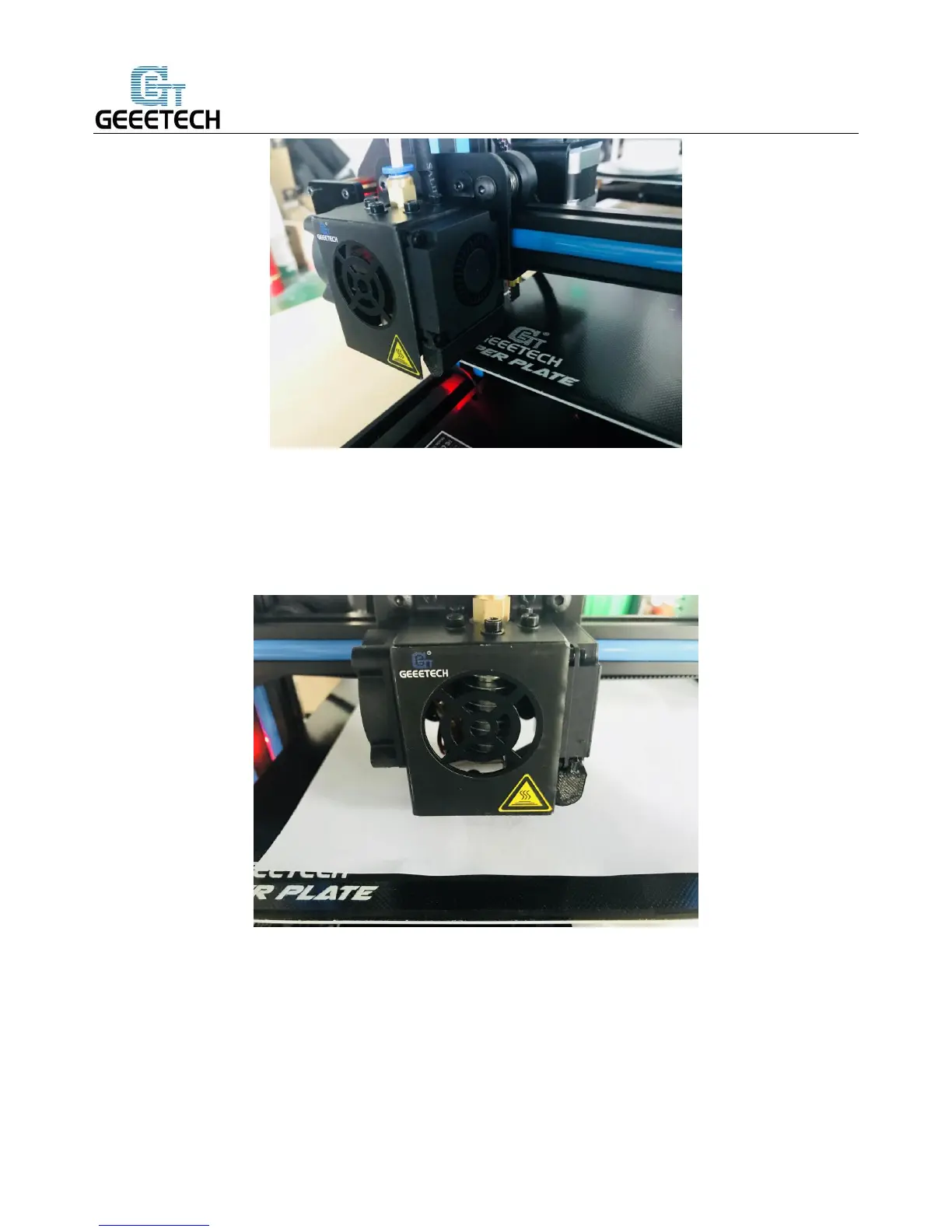

b. Disable the motors. Use a piece of A4 paper to measure the distance between the nozzle and the building
platform. Move the printing head to the first corner and slide the paper back and forth. When the nozzle
grabs the paper a little, it indicates the distance is proper. Or you should adjust the wing nut under the heat
bed to get the proper distance.
If the distance is too far, the first layer could not be attached well to the building platform. If the distance is
too small, the nozzle is prone to jamming.
c. Following the above step to complete the leveling job on the rest three corners. You may need to adjust
the distance several times to get the satisfying results.

Geeetech A10 Specifications

General

Build Volume	220 x 220 x 260 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Max Bed Temperature	100°C
Connectivity	SD card, USB
Print Technology	FDM (Fused Deposition Modeling)
Frame Material	Aluminum
Heated Bed	Yes
Display	LCD
Machine Dimensions	478 x 413 x 485 mm
Max Nozzle Temperature	250°C
Supported Materials	PLA, ABS
Power Supply	24V
